Scheduler days 2 digit size

1 Answer 68 Views
ScheduleView
This is a migrated thread and some comments may be shown as answers.
Mehmet
Top achievements
Rank 1
Mehmet asked on 29 Jul 2012, 01:16 PM

Hi,

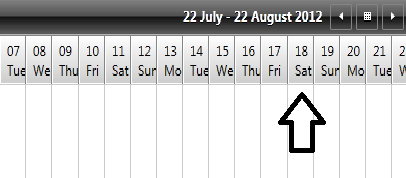

I want to change Scheduler days view from 3 digit to 2 digit.
What should I do?
Sample code is below.

 <telerik:RadScheduleView.ViewDefinitions>
    <telerik:TimelineViewDefinition VisibleDays="31" TimerulerGroupStringFormat="{}{0:dd ddd}"
       TimerulerMajorTickStringFormat="{}{0:%M}.{0:%d}"  LargeChangeInterval="15d" MajorTickLength="1d"
        MinorTickLength="1d" GroupTickLength="1d"/>
   </telerik:RadScheduleView.ViewDefinitions>

Mehmet,
Regards

1 Answer, 1 is accepted

Sort by
0
Yana
Telerik team
answered on 02 Aug 2012, 12:55 PM
Hello Mehmet,

We are using the standard date and time format strings described in this article. Note that there is no format string for 2 digit days. Anyway, I can suggest you a different approach to achieve the requirement - you could set the TimeRulerItemTemplateSelector property of the ScheduleView and customize the needed text in the Group TimeRulerItem.  You should use HorizontalTimelineGroupTemplate property  - I would suggest to create a ValueConverter to convert the day name:


<local:TimeRulerItemTemplateSelector x:Key="CustomTimeRulerItemTemplateSelector">
    ...
    <local:TimeRulerItemTemplateSelector.HorizontalTimelineGroupTemplate>
        <DataTemplate>
            <TextBlock Text="{Binding FormattedValue, Converter={StaticResource DayConverter}}" Margin="2 1" TextAlignment="Left" />
        </DataTemplate>
    </local:TimeRulerItemTemplateSelector.HorizontalTimelineGroupTemplate>
    ...
</local:TimeRulerItemTemplateSelector>

I've attached a simple example to demonstrate the approach. Hope this helps.

Greetings,
Yana
the Telerik team
