Scatter Chart+Line Chart

Thread is closed for posting
2 posts, 0 answers
  1. Hk
    Hk avatar
    10 posts
    Member since:
    Jul 2017

    Posted 18 Jul 2017 Link to this post

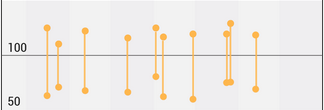

    I want to draw Chart which has lets say minimum temperature and maximum temperature(which is joined by dot and straight line and 2 dots ) for day.So i can say it is mix of Scatter chart and Line chart.So how can i get same output. Kindly provide Document/Demo/Code for same. Refer desired output "Scatter_plus_LineChart.png"

    I am using Native Script with Angular2.

    Thank you.

  2. Nikolay Iliev
    Nikolay Iliev avatar
    351 posts

    Posted 18 Jul 2017 Link to this post

    Hi Harsh,

    The described chart can be created with Range Bar Series.
    Live example on how to create range bar series can be found here.
    The crucial points for this series is to set lowPropertyName and highPropertyName values
    which will be used to display the lower and the upper limits (in your case of your temperature).
    In the linked example above this is achieved by providing the low and high keys from the source

    Nikolay Iliev
    Progress Telerik
