Name beside appointment time

[david]

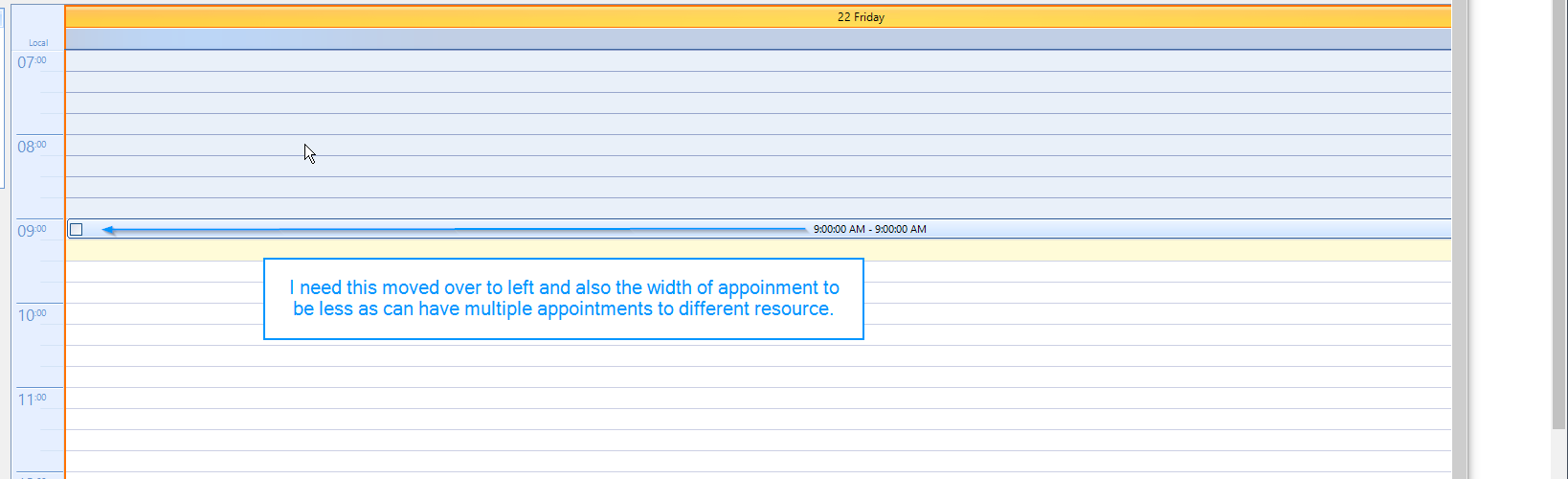

I Have a problem I am using a custom appointment element to add a checkbox to the scheduler while that works the appointment is streching to the full time slot I can have multiple appointments in the same time slot so how do I stop this hapening.



Also I wish to place the name of the patient beside the time on the slot it self but no matter what I try it only shows the time slot



01.using System;
02.using System.Collections.Generic;
03.using System.Drawing;
04.using System.Linq;
05.using System.Text;
06.using System.Threading.Tasks;
07.using System.Windows.Forms;
08.using Telerik.WinControls.UI;
09.
10.namespace WindowsFormsApplication1.Classes.Appointments
11.{
12.    public class MyAppointmentElement : AppointmentElement
13.    {
14.        public MyAppointmentElement(RadScheduler scheduler, SchedulerView view, IEvent appointment)
15.            : base(scheduler, view, appointment)
16.        { }
17.
18.        StackLayoutElement container = new StackLayoutElement();
19.        RadCheckBoxElement checkBox = new RadCheckBoxElement();
20.        StackLayoutElement panel = new StackLayoutElement();
21.        LightVisualElement timeInterval = new LightVisualElement();
22.        LightVisualElement description = new LightVisualElement();
23.        SourceContext SourceDal = new SourceContext();
24.        Patient patientInfo = new Patient();
25.        RadLabelElement label = new RadLabelElement();
26.        protected override void CreateChildElements()
27.        {
28.            base.CreateChildElements();
29.
30.            this.container = new StackLayoutElement();
31.            this.container.Orientation = Orientation.Horizontal;
32.            this.container.StretchHorizontally = true;
33.            this.container.StretchVertically = true;
34.
35.            this.checkBox = new RadCheckBoxElement() { MaxSize = new Size(20, 0) };
36.            this.checkBox.CheckStateChanged += CheckBox_CheckStateChanged;
37.            this.container.Children.Add(this.checkBox);
38.
39.
40.
41.            this.label = new RadLabelElement();
42.            this.Text = "David Buckley test ";
43.            this.container.Children.Add(this.label);
44.
45.
46.            this.panel.StretchHorizontally = true;
47.            this.panel.StretchVertically = true;
48.            this.panel.Orientation = Orientation.Vertical;
49.            this.panel.Children.Add(timeInterval);
50.            this.panel.Children.Add(description);
51.
52.
53.            this.container.Children.Add(this.panel);
54.            this.Children.Add(this.container);
55.        }
56.
57.        protected override SizeF ArrangeOverride(SizeF finalSize)
58.        {
59.            SizeF size = base.ArrangeOverride(finalSize);
60.
61.            float start = this.checkBox.DesiredSize.Width;
62.            this.panel.Arrange(new RectangleF(start, 0, size.Width - start, size.Height));
63.
64.            return size;
65.        }
66.
67.        private void CheckBox_CheckStateChanged(object sender, EventArgs e)
68.        {
69.            //...
70.        }
71.
72.        private void button_Click(object sender, EventArgs e)
73.        {
74.            this.Scheduler.Appointments.Remove(this.Appointment);
75.        }
76.
77.
78.
79.        public override void Synchronize()
80.        {
81.            base.Synchronize();
82.
83.            timeInterval.Text = this.Appointment.Start.ToLongTimeString() + " - " + this.Appointment.End.ToLongTimeString();
84.            description.Text = this.Appointment.Summary;
85.        }
86.
87.        public override void DrawEventText(Telerik.WinControls.Paint.IGraphics graphics)
88.        {
89.            //leave the method empty to prevent the default appointment information to be drawn
90.        }
91.    }
92.}









[david]

Also using the above and if i try to double click on the appointment slot created with above my edit dialog no longer shows I hope you can point me in right direction.
