Multiple line series with ScrollAndZoom range problem

7 posts, 0 answers
  1. Minh
    Minh avatar
    4 posts
    Member since:
    Oct 2011

    Posted 16 Nov 2011 Link to this post

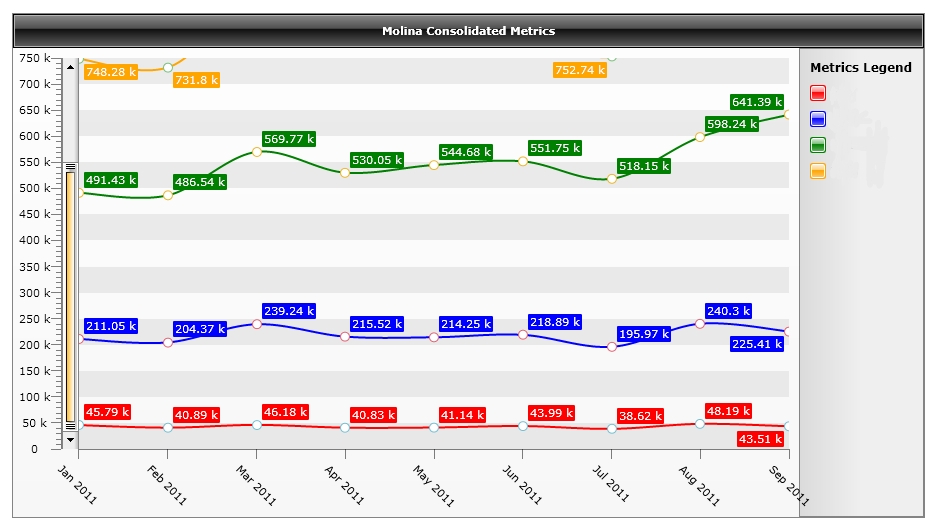

    I have a chart with multiple line series, dynamically bound from WCF services. The chart has Y-axis zoom and scroll, and I already set the MinZoomRange. The problem is even with the MinZoomRange set to 0.05, I still can move the zooming bar all the way down where the two ends of the bar touch each other and thus zoomrange is now 0, this crashes the application.

    I read somewhere on this forum that zooming has some issues with multiple line series? Please find a solution for this problem soon, it is critical to our business partners.

    The telerik version we are using is RadControls for Silverlight Q2 2011 SP1

    <telerik:RadChart HorizontalAlignment="Left" Margin="12,98,0,7" Name="radChart1" Width="913" Grid.ColumnSpan="3">
                       <telerik:RadChart.DefaultView>
                           <telerik:ChartDefaultView>
                               <telerik:ChartDefaultView.ChartArea>
                                   <telerik:ChartArea LegendName="chartLegend">
                                       <telerik:ChartArea.ZoomScrollSettingsY>
                                           <telerik:ZoomScrollSettings ScrollMode="ScrollAndZoom" MinZoomRange="0.05"/>
                                       </telerik:ChartArea.ZoomScrollSettingsY>
                                   <telerik:ChartArea.AxisY>
                                       <telerik:AxisY AutoRange="True"/>
                                   </telerik:ChartArea.AxisY>
                                   <telerik:ChartArea.AxisX>
                                       <telerik:AxisX AutoRange="True"/>
                                   </telerik:ChartArea.AxisX>
                                       <telerik:ChartArea.DataSeries>
                                           <telerik:DataSeries>
                                           </telerik:DataSeries>
                                       </telerik:ChartArea.DataSeries>
                                   </telerik:ChartArea>
                               </telerik:ChartDefaultView.ChartArea>
                               <telerik:ChartDefaultView.ChartLegend>
                                   <telerik:ChartLegend x:Name="chartLegend" UseAutoGeneratedItems="True"/>
                               </telerik:ChartDefaultView.ChartLegend>
                           </telerik:ChartDefaultView>
                       </telerik:RadChart.DefaultView>
                   </telerik:RadChart>
    private SeriesMapping AddSeriesMapping(ISeriesDefinition seriesDefinition, string legendLabel, string fieldName, Color color)
           {
               // add mapping for the series
               SeriesMapping mapping = new SeriesMapping()
               {
                   SeriesDefinition = seriesDefinition,
                   LegendLabel = legendLabel,
               };

               if(color != Colors.Transparent)
                   mapping.SeriesDefinition.Appearance.Stroke = new SolidColorBrush(color);

               InteractivitySettings interactive = new InteractivitySettings();
               interactive.HoverScope = InteractivityScope.Series;
               interactive.SelectionScope = InteractivityScope.Series;

               mapping.SeriesDefinition.InteractivitySettings = interactive;

               // add item mapping for each property in the item
               mapping.ItemMappings.Add(new ItemMapping()
               {
                   DataPointMember = DataPointMember.LegendLabel,
               });

               mapping.ItemMappings.Add(new ItemMapping()
               {
                   DataPointMember = DataPointMember.YValue,
                   FieldName = fieldName
               });

               return mapping;
           }


    void MetricService_GetAllConsolidatedMetricsCompleted(object sender, GetAllConsolidatedMetricsCompletedEventArgs e)
           {
               radChart1.SeriesMappings.Clear();

               //setting up chart default values
               //radChart1.DefaultView.ChartArea.AxisY.Step = 100000.00;
               //radChart1.DefaultView.ChartLegend.UseAutoGeneratedItems = false;
               //radChart1.DefaultView.ChartArea.ZoomScrollSettingsY.MinZoomRange = 5000.00;

               List<Stat> stats = (List<Stat>)e.Result;
               radChart1.DefaultView.ChartTitle.Content = "Consolidated Metrics";
               radChart1.ItemsSource = stats;
               radChart1.DefaultView.ChartLegend.Header = "Metrics Legend";
               radChart1.SeriesMappings.Add(AddSeriesMapping(new SplineSeriesDefinition(), "One", "One", Colors.Red));
               radChart1.SeriesMappings.Add(AddSeriesMapping(new SplineSeriesDefinition(), "Two", "Two", Colors.Blue));
               radChart1.SeriesMappings.Add(AddSeriesMapping(new SplineSeriesDefinition(), "Three", "Three", Colors.Green));
               radChart1.SeriesMappings.Add(AddSeriesMapping(new SplineSeriesDefinition(), "Total", "Total", Colors.Orange));

               this.radChart1.CreateItemStyleDelegate = CreateAllConsolidatedCustomColors;

               CreateXAxisLabels(stats);
               busyIndicator.IsBusy = false;
           }
  2. Ves
    Admin
    Ves avatar
    2926 posts

    Posted 18 Nov 2011 Link to this post

    Hi Minh,

    I can confirm that there is a bug in the control. Indeed, currently it is not possible to limit the Y axis zoom range when using the slider. Our developers have fixed it and the fix will be available in the next internal build. Internal builds are made public usually on Mondays, so please check your account and give it a try once available.

    I have updated your Telerik points for pointing this to us.

    Best regards,
    Ves
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  3. Minh
    Minh avatar
    4 posts
    Member since:
    Oct 2011

    Posted 21 Nov 2011 Link to this post

    Hi Ves,

    Do you know if the fix is available now? I am new to telerik so I'm not sure where to get the fix for this? My company has full license to the product already so licensing will not be a problem.

    Thanks,
    Minh
  4. Ves
    Admin
    Ves avatar
    2926 posts

    Posted 22 Nov 2011 Link to this post

    Hello Minh,

    I am afraid we did not release an internal build yesterday. It should go public later today. To download it, please follow the next steps (note, that you should do this using the license holder's account):
    • Click on "Your Account" in the left upper corner of the page.
    • Click on "Download and Manage Your Products".
    • Click on "Download installer and other resources".
    • Click on "Latest Internal Builds" link in the RadControls for Silverlight section.

    Kind regards,
    Ves
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  5. Minh
    Minh avatar
    4 posts
    Member since:
    Oct 2011

    Posted 22 Nov 2011 Link to this post

    Ves,

    I used our production account and got the latest internal build, but I did not see the fix in the release note. I tried the new DLL anyway, and it is not fixed. Would you please work with your development team to make sure this get included in the next release cycle? Our production application is using this currently. Thank you for your help.

    Minh
  6. Ves
    Admin
    Ves avatar
    2926 posts

    Posted 23 Nov 2011 Link to this post

    Hello Minh,

    Our local tests show that the fix is included and the problem is resolved. Please, make sure the references in your project are correct and point to the new assemblies. If this seems to be fine, please open a formal support ticket and send us a small runnable application, which demonstrates the problem, so we can investigate it and get back to you with our findings. Thank you.

    Best regards,
    Ves
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  7. Minh
    Minh avatar
    4 posts
    Member since:
    Oct 2011

    Posted 23 Nov 2011 Link to this post

    Hi Ves,

    I had my team replaced the DLL's again and it is working now. Thanks for the fix.

    Minh
