MinHeight not respected on first load

5 Answers 159 Views

TileView

This is a migrated thread and some comments may be shown as answers.

This question is locked. New answers and comments are not allowed.

Jim asked on 06 Oct 2009, 05:45 PM

First off --- very cool control...

Here is my RadTileViewItem:

                    <telerikNavigation:RadTileViewItem
                x:Class="xxx.DataViewDisplayTile"
                xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                xmlns:xxx="clr-namespace:xxx.Web"
                xmlns:telerikAnimation="clr-namespace:Telerik.Windows.Controls.Animation;assembly=Telerik.Windows.Controls"
                xmlns:telerikNavigation="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Navigation"
                >
                <telerikNavigation:RadTileViewItem.Header>
                    <StackPanel Orientation="Horizontal">
                        <Image Source="../Images/data_view.png" Height="20" Width="20"/>
                    <TextBlock x:Name="cHeaderText" Style="{StaticResource TileHeader}" />
                    </StackPanel>
                </telerikNavigation:RadTileViewItem.Header>
                <telerikNavigation:RadTileViewItem.Content>
                    <telerikNavigation:RadFluidContentControl
                                        telerikAnimation:AnimationManager.IsAnimationEnabled="False"
                                        SmallToNormalThreshold="235, 35"
                                        NormalToSmallThreshold="305, 149"
                                        NormalToLargeThreshold="315, 155"
                                        LargeToNormalThreshold="725, 345">
                        <telerikNavigation:RadFluidContentControl.SmallContent>
                            <TextBlock Text="Dataview Display Small" />
                        </telerikNavigation:RadFluidContentControl.SmallContent>
                        <telerikNavigation:RadFluidContentControl.Content>
                            <TextBlock Text="DataView Display Medium" />
                        </telerikNavigation:RadFluidContentControl.Content>
                        <telerikNavigation:RadFluidContentControl.LargeContent>
                            <xxx:DataViewDisplay x:Name="cDataViewDisplay" MinHeight="350"/>
                        </telerikNavigation:RadFluidContentControl.LargeContent>
                    </telerikNavigation:RadFluidContentControl>
                </telerikNavigation:RadTileViewItem.Content>
            </telerikNavigation:RadTileViewItem >

The underlying xxx:DataViewDisplay is expandable to whatever size is available (it has a top level scroll viewer).

My goal is that whenever I have at least 350 pixels in height I show this control.

When the control shows for the first time only and there is < 350 pixels for each tile my LargeContent window shows up. If I cycle this window to LargeSize (maximize?) and then restore it to "Content" things display as I would expect.

So my best guess is that the MinHeight is not being respected for some reason.

5 Answers, 1 is accepted

answered on 07 Oct 2009, 02:46 PM



Hi Tihomir -

Well some unexpected things occured when I built a test project to reproduce the issue. First off I don't think this has much to do with MinHeight. I have attached a sample project that really helps demonstrate the issues I am running into.

I have changed the thresholds:


            SmallToNormalThreshold="260, 100"

            NormalToSmallThreshold="260, 100"

            NormalToLargeThreshold="300, 200"

            LargeToNormalThreshold="300, 200"

The following behaviors seem inconsistent to me:

1) when I maximize one of the tiles. resizing the entire browser window doesn't appear to affect the 'minimized' tile's content.
2) when all tiles are in 'normal' mode. resizeing the entire browser window works fine to shift between medium and large but never into small mode

Working with the attached project I determined that having SmalltoNormal and NormalToSmall being different values or NormalToLarge and LargeToNormal being different produces a whole lot of seemingly random behavior (that is to say I can't figure it out).

It appears that I can't attach .rar files and the project is larger than I would like to try to copy / paste.

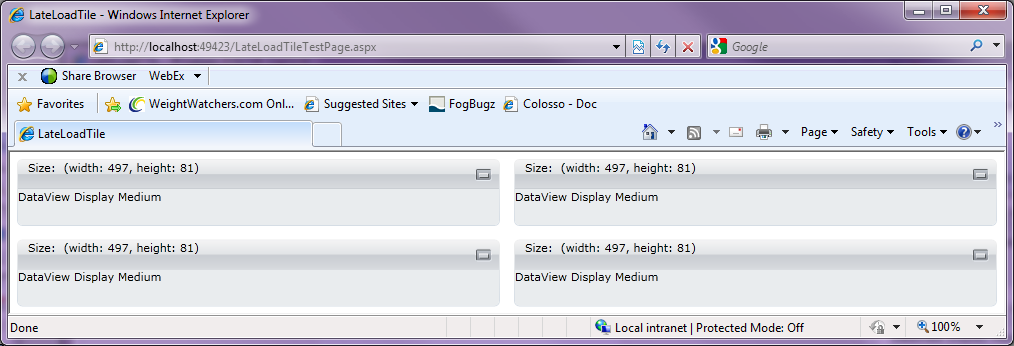

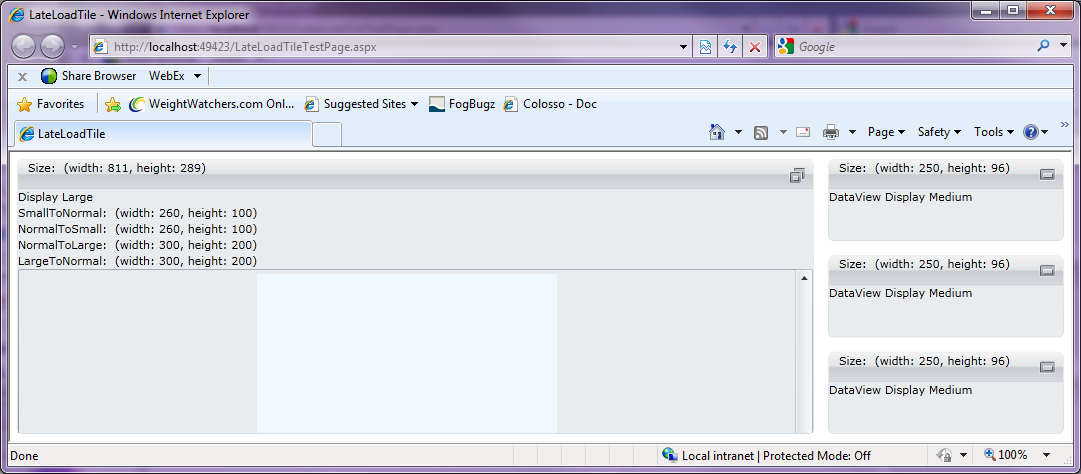

So I have attached the screen shots and you can let me know if you would like the project and how to send it to you.

Accepted

answered on 09 Oct 2009, 12:22 PM

Hello Jim,

The reason why you cannot attach your .rar file is because this is a forum post - you are allowed to upload only images up to 2Mb. If you need to send a larger file you should open a support ticket, in which more file types and sizes are allowed.

Regarding the issue you encountered with the size thresholds, I guess this might be a bug in the FluidContentControl. We are aware of several bugs affecting the thresholds and we are working on them. An updated version of this control will be available in our upcoming Q3 release. I hope the transition problems are not critical for your application.

Best wishes,
Tihomir Petkov
the Telerik team
