    I have a Line chart where I map XValue and YValue using a class as the ItemSource. My problem is that the X Axis is always scaled as if the axis should be a category axis (i.e., point 1 plots at tickmark 1, point 2 plots at tickmark 2 etc.).
    What I need to plot is a scatter plot, i.e. point 1 with value 5 plots at x=5 and not x=1, point 2 with value 8 plots at x=8 and not x= 2.

    The code is as follows:
    SeriesMapping seriesMapping = new SeriesMapping();
    seriesMapping.SeriesDefinition = new LineSeriesDefinition();
    seriesMapping.ItemMappings.Add(new ItemMapping("AODate", DataPointMember.XValue));
    seriesMapping.ItemMappings.Add(new ItemMapping("YValue", DataPointMember.YValue));
    seriesMapping.ItemMappings.Add(new ItemMapping("Label", DataPointMember.Label));
    ctlRadChart.SeriesMappings.Add(seriesMapping);
    List<clsPlotData> data = new List<clsPlotData>();
    double minX = 5;
    double middleX = 8;
    double middle2X = 9;
    double maxX = 14;
    double minY = 1;
    double middleY = 3;
    double middle2Y = 8.5;
    double maxY = 2;
    data.Add(new clsPlotData(minX, minY, ""));
    data.Add(new clsPlotData(middleX, middleY, ""));
    data.Add(new clsPlotData(middle2X, middle2Y, ""));
    data.Add(new clsPlotData(maxX, maxY, ""));
    ctlRadChart.ItemsSource = data;

    with clsPLotData being this:
    public class clsPlotData
    {
        public clsPlotData(double AOdate, double yValue, string label)
        {
            this.YValue = yValue;
            this.AOdate = AOdate;
            this.Label = "X: " + AOdate.ToString() + "\nY: " + yValue.ToString();
        }
        public double YValue
        {
            get;
            set;
        }
        public Double AOdate
        {
            get;
            set;
        }
        public string Label
        {
            get;
            set;
        }
    }

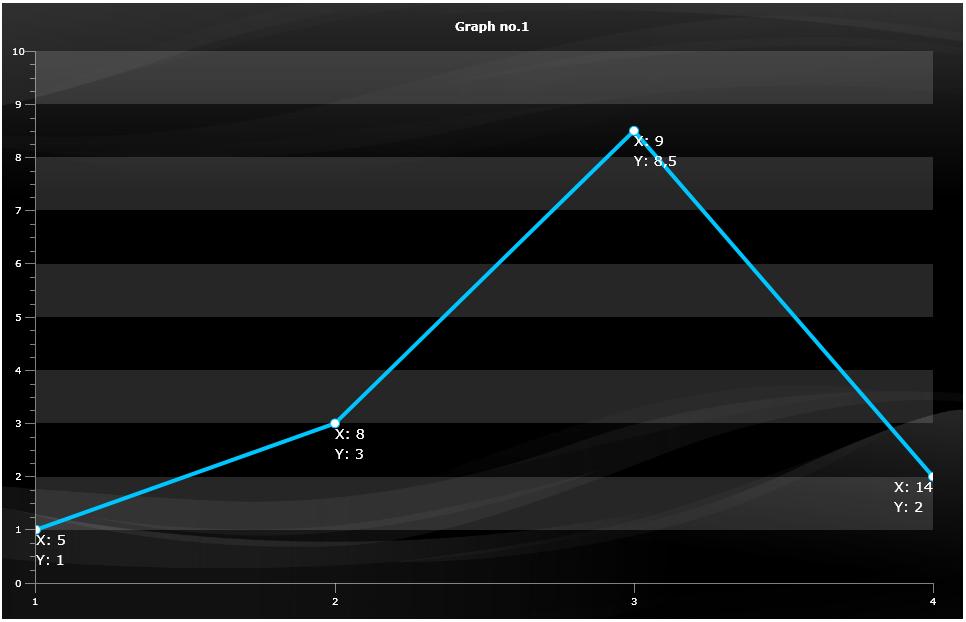

    The chart produced is attached as a jpg. How coan I get the x axis to show data from 5 to 14 instead of point 1 to 4?

    thanks,
    Anne
  2. Velin
    Admin
    Velin avatar
    391 posts

    Posted 30 Jul 2010 Link to this post

    Hello Anne Lyon,

    Please, find attached a small working example demonstrating the desired scenario.

    Hope this will help.

    All the best,
    Velin
    the Telerik team
