Issue in Zoom property

[Kiran Ghanwat]

Hello,

I am using Chart with Zoom property.

I am facing one issue when I change length of the scrollbar. The width of the Bars gets too much small which is not expected.

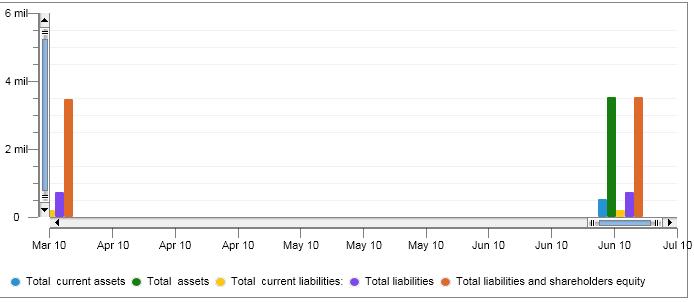

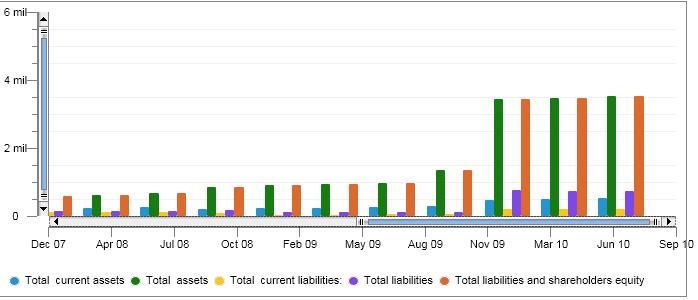

I have have attached the flow of the task I have performed.

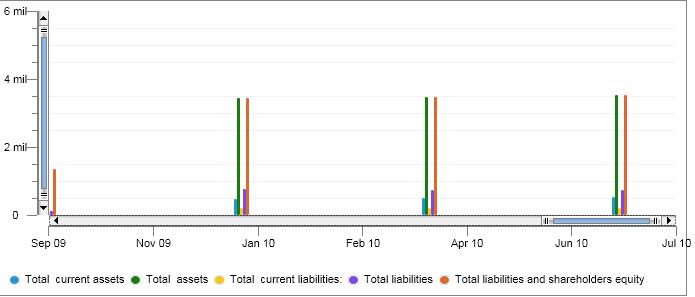

You can see the decresed width in the Chart2.jpg .


Thanks,
Kiran Ghanwat

[Nikolay]

Hello Kiran Ghanwat,

The width of the bars can generally be altered using the ItemWidthPercent property, say :

RadChart1.DefaultView.ChartArea.ItemWidthPercent = 60;

Their width depends on the mechanism of calculating the ItemWidthPercent, as well as the number of ticks/length between ticks. Up until a specific point , the way it's calculated is based on a portion of the step, for example, if you have Step = 5 and ItemWidthPercent = 10, it'd mean that the width of the individual bar would be only 2% of the step ( i.e. 10% of 1/5th ). After that specific point the ItemWidthPercent is applied to the available space between two ticks, which is why the bars would become wider or thinner.

If you need further assistance, please, do not hesitate to contact us

Kind regards,
Nikolay
the Telerik team
