How to set the width of individual panes and groups?

[Sam]

Hello

I have a pane that is docked to the right side of the screen initially. To set its initial width I use the DockingPanel.InitialSize attached property on the RadSplitContainer that contains the pane.

However, as soon as the user floats the window and then re-docks it, it takes up half the screen width.

Is there a way that I can re-set the width of either the Pane, PaneGroup, or SplitContainer as soon as it is redocked?

I have tried intercepting all the various events and setting the widths of items there, and I've tried using VisualStates in the themes. The only way I can seem to set the width of something apart from via the DockingPanel.InitialSize property, is via the MaxWidth property of the typed style for a RadPaneGroup in the theme. However, this means it gets set for all the panes, and not just the one on the right.

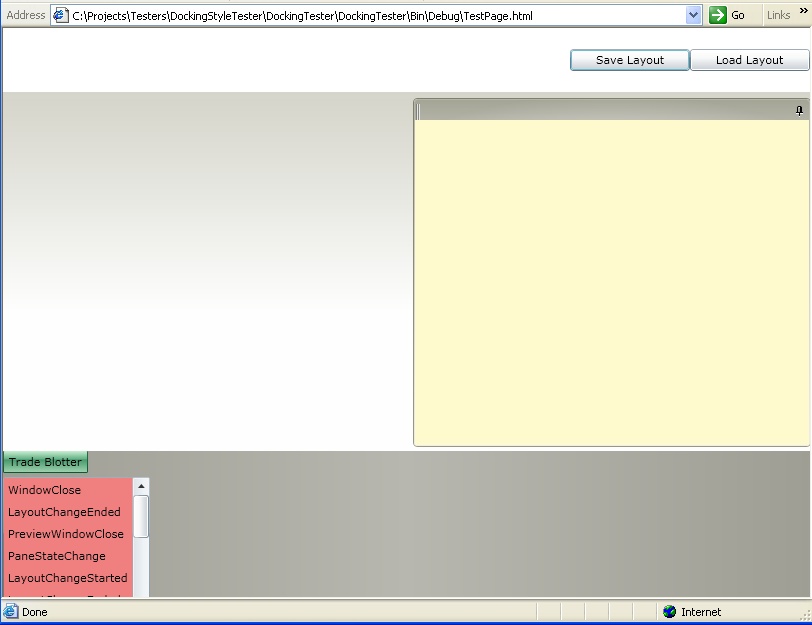

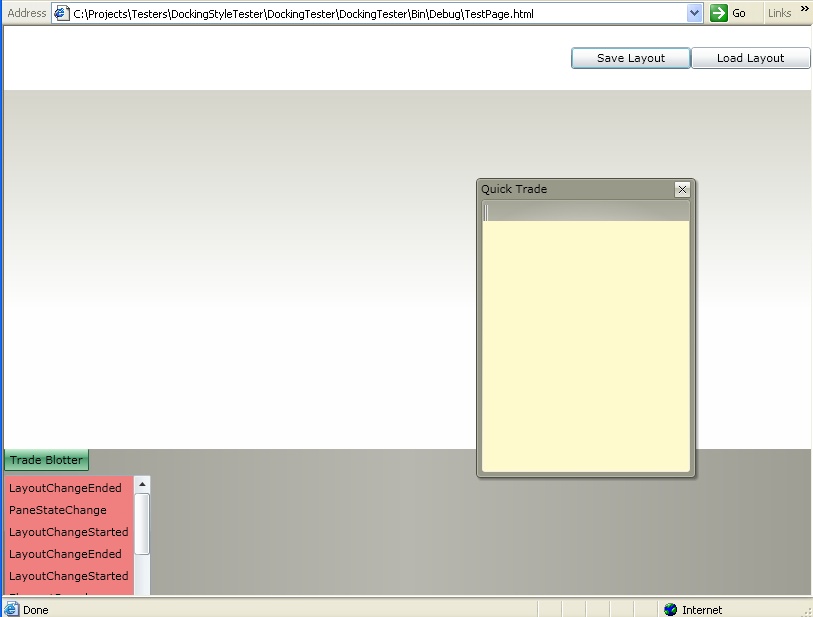

I've attached 3 images that show the steps. I need the panel on the right in 03 to return to the same width as in 01.

Any ideas please?

Thanks very much

Sam

[Miroslav Nedyalkov]

Hi Sam,

 The Docking control doesn't support this functionality out-of-the-box. What I could suggest you to implement this feature is to hook-up to the PaneStateChanged event of the Docking control or to the Loaded event of the content of the Pane you are interested in and find the root-level SplitContainer and change its size if needed.

Hope this helps!

Regards,
Miroslav Nedyalkov
the Telerik team
