How to add sub class to property grid

[Myoungsu]

I have two classes

One is EQConfig, the other is HSMSConfig (I attached) and EQConfig has a property which name is hsmsConfig and HSMSConfig type.

Then, I set below

this.radPropertyGrid1.SelectedObject = EQConfig;

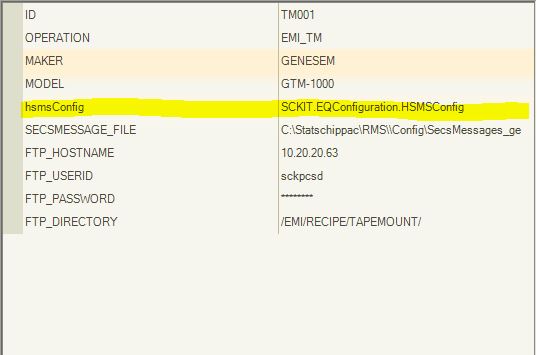

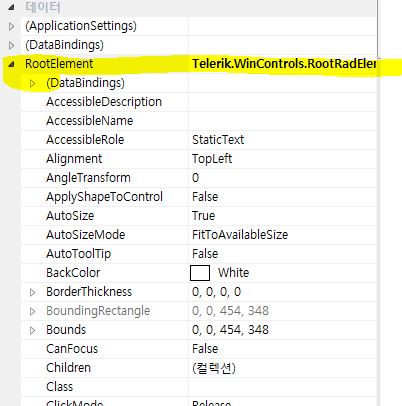

Then I expected I can expand hsmsConfig property like

[Myoungsu]

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ComponentModel;
using System.IO;
using System.Xml.Serialization;

namespace SCKIT.EQConfiguration
{
    [Serializable, DefaultPropertyAttribute("DeviceID")]
    public class HSMSConfig
    {
        [Category("Default Setting"), Description("Equipment ID")]
        public string ID { get; set; }

        [Category("Default Setting"), Description("Active or Passive")]
        public ENUM_CONNECTION_MODE MODE { get; set; }

        [Category("Default Setting")]
        public string IP { get; set; }

        [Category("Default Setting"), Description("Please enter an integer between 0 and 65535.")]
        public int PORT { get; set; }

        [Category("Default Setting"), Description("Device ID")]
        public int DeviceID { get; set; }

        [Category("Timeout"), Description("Represents the time3(1~120) of hsms.")]
        public int T3 { get; set; }

        [Category("Timeout"), Description("Represents the time5(1~240) of hsms.")]
        public int T5 { get; set; }

        [Category("Timeout"), Description("Represents the time6(1~240) of hsms.")]
        public int T6 { get; set; }

        [Category("Timeout"), Description("Represents the time7(1~240) of hsms.")]
        public int T7 { get; set; }

        [Category("Timeout"), Description("Represents the time8(1~120) of hsms.")]
        public int T8 { get; set; }

        [Category("Timeout"), Description("Represents the LinkTestTime(1~120) of hsms.")]
        public int LinkTestTimeout { get; set; }

        [BrowsableAttribute(false)]
        public string LogFolderPath { get; set; }


        [Category("Log"), Description("SystemLog Enable/Disable")]
        public bool SystemLogWrite { get; set; }

        [Category("Log"), Description("SystemLog Maximum Count")]
        public int SystemLogCount { get; set; }

        [Category("Log"), Description("SystemLog Maximum Capacity")]
        public int SystemLogMaxCapacity { get; set; }


        [Category("Log"), Description("SMLLog Enable/Disable")]
        public bool SMLLogWrite { get; set; }

        [Category("Log"), Description("SMLLog Maximum Count")]
        public int SMLLogCount { get; set; }

        [Category("Log"), Description("SMLLog Maximum Capacity")]
        public int SMLMaxCapacity { get; set; }


        [Category("Log"), Description("HexaLog Enable/Disable")]
        public bool HEXLogWrite { get; set; }

        [Category("Log"), Description("HexaLog Maximum Count")]
        public int HEXLogCount { get; set; }

        [Category("Log"), Description("HexaLog Maximum Capacity")]
        public int HEXLogMaxCapacity { get; set; }


        public HSMSConfig()
        {
            initialize();
        }
        public HSMSConfig(string id)
        {
            initialize();
        }

        private void initialize()
        {
            MODE = ENUM_CONNECTION_MODE.ACTIVE;
            IP = string.Empty;
            PORT = 5000;
            DeviceID = 0;
            T3 = 45;
            T5 = 10;
            T6 = 5;
            T7 = 10;
            T8 = 5;
            LinkTestTimeout = 10;
            LogFolderPath = string.Empty;

            SystemLogWrite = false;
            SystemLogCount = 10;
            SystemLogMaxCapacity = 10;

            SMLLogWrite = false;
            SMLLogCount = 10;
            SMLMaxCapacity = 10;

            HEXLogWrite = false;
            HEXLogCount = 10;
            HEXLogMaxCapacity = 10;
        }

        public string GetXmlString()
        {
            try
            {
                // Create a new XmlSerializer instance with the type of the test class
                XmlSerializer SerializerObj = new XmlSerializer(typeof(HSMSConfig));

                // Create a new file stream to write the serialized object to a file
                StringWriter sw = new StringWriter();
                SerializerObj.Serialize(sw, this);

                return sw.ToString();
            }
            catch (Exception ex)
            {
                return null;
            }
            finally
            {
            }
        }
    }
}

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.ComponentModel;

using System.IO;

using System.Xml.Serialization;



namespace SCKIT.EQConfiguration

{

    [Serializable, DefaultPropertyAttribute("DeviceID")]

    public class HSMSConfig

    {

        [Category("Default Setting"), Description("Equipment ID")]

        public string ID { get; set; }



        [Category("Default Setting"), Description("Active or Passive")]

        public ENUM_CONNECTION_MODE MODE { get; set; }



        [Category("Default Setting")]

        public string IP { get; set; }



        [Category("Default Setting"), Description("Please enter an integer between 0 and 65535.")]

        public int PORT { get; set; }



        [Category("Default Setting"), Description("Device ID")]

        public int DeviceID { get; set; }



        [Category("Timeout"), Description("Represents the time3(1~120) of hsms.")]

        public int T3 { get; set; }



        [Category("Timeout"), Description("Represents the time5(1~240) of hsms.")]

        public int T5 { get; set; }



        [Category("Timeout"), Description("Represents the time6(1~240) of hsms.")]

        public int T6 { get; set; }



        [Category("Timeout"), Description("Represents the time7(1~240) of hsms.")]

        public int T7 { get; set; }



        [Category("Timeout"), Description("Represents the time8(1~120) of hsms.")]

        public int T8 { get; set; }



        [Category("Timeout"), Description("Represents the LinkTestTime(1~120) of hsms.")]

        public int LinkTestTimeout { get; set; }



        [BrowsableAttribute(false)]

        public string LogFolderPath { get; set; }





        [Category("Log"), Description("SystemLog Enable/Disable")]

        public bool SystemLogWrite { get; set; }



        [Category("Log"), Description("SystemLog Maximum Count")]

        public int SystemLogCount { get; set; }



        [Category("Log"), Description("SystemLog Maximum Capacity")]

        public int SystemLogMaxCapacity { get; set; }





        [Category("Log"), Description("SMLLog Enable/Disable")]

        public bool SMLLogWrite { get; set; }



        [Category("Log"), Description("SMLLog Maximum Count")]

        public int SMLLogCount { get; set; }



        [Category("Log"), Description("SMLLog Maximum Capacity")]

        public int SMLMaxCapacity { get; set; }





        [Category("Log"), Description("HexaLog Enable/Disable")]

        public bool HEXLogWrite { get; set; }



        [Category("Log"), Description("HexaLog Maximum Count")]

        public int HEXLogCount { get; set; }



        [Category("Log"), Description("HexaLog Maximum Capacity")]

        public int HEXLogMaxCapacity { get; set; }





        public HSMSConfig()

        {

            initialize();

        }

        public HSMSConfig(string id)

        {

            initialize();

        }



        private void initialize()

        {

            MODE = ENUM_CONNECTION_MODE.ACTIVE;

            IP = string.Empty;

            PORT = 5000;

            DeviceID = 0;

            T3 = 45;

            T5 = 10;

            T6 = 5;

            T7 = 10;

            T8 = 5;

            LinkTestTimeout = 10;

            LogFolderPath = string.Empty;



            SystemLogWrite = false;

            SystemLogCount = 10;

            SystemLogMaxCapacity = 10;



            SMLLogWrite = false;

            SMLLogCount = 10;

            SMLMaxCapacity = 10;



            HEXLogWrite = false;

            HEXLogCount = 10;

            HEXLogMaxCapacity = 10;

        }



        public string GetXmlString()

        {

            try

            {

                // Create a new XmlSerializer instance with the type of the test class

                XmlSerializer SerializerObj = new XmlSerializer(typeof(HSMSConfig));



                // Create a new file stream to write the serialized object to a file

                StringWriter sw = new StringWriter();

                SerializerObj.Serialize(sw, this);



                return sw.ToString();

            }

            catch (Exception ex)

            {

                return null;

            }

            finally

            {

            }

        }

    }

}

Sorry I didn't attached files

[Dess | Tech Support Engineer, Principal]

Hello Myoungsu,

Thank you for writing.

In order to achieve your goal, it is suitable to use an ExpandableObjectConverter. Additional information is available in PropertyGrid >> Type Converters help article.

I hope this information helps. Should you have further questions I would be glad to help.



Regards,
Dess
Telerik
