GroupDescriptor with AggregateFunction question

16 posts, 2 answers
  1. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 11 Jan 2011 Link to this post

    Hi,

    I've got a problem with a GroupDescriptor with a AggregateFunction defined in xaml as follows:

    <telerik:RadGridView.GroupDescriptors>
        <telerik:GroupDescriptor Member="OutputType"
                                 SortDirection="Ascending">
            <telerik:GroupDescriptor.AggregateFunctions>
                <telerik:CountFunction Caption="Entries count: " />
            </telerik:GroupDescriptor.AggregateFunctions>
        </telerik:GroupDescriptor>
    </telerik:RadGridView.GroupDescriptors>

    When the grid is first loaded everything works as expected, that is each group has it's correct Entries count value but if I change a rows "OutputType" so that so that it moves to another group then the group to where the item gets added to gets a new Entries count but the group from where that row was removed from still has the oldvalue in the entries count.

    Example

    The grid is grouped on OutputType which has two groups; OutputType1 and OutputType2

    Visual state of the gridview at intial load:
    OutputType1  Entries count: 3
    OutputType2  Entries count: 4

    Edit a row with OutputType1 and change it's value to OutputType2

    Visual state of the gridview after edit:
    OutputType1  Entries count: 3
    OutputType2  Entries count: 5

    So the increment count on OutputType2 works as expected but OutputType1 is not decremented accordingly.

    Please advice
    Tomas

  2. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 11 Jan 2011 Link to this post

    Hello Tomas,

    May you provide a bit more details about your settings, mainly about the type of the source for the grid ? Furthermore, may you try out your application with the assemblies from our Latest Internal Build ?


    Kind regards,
    Maya
    the Telerik team
    Let us know about your Windows Phone 7 application built with RadControls and we will help you promote it. Learn more>>
  3. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 11 Jan 2011 Link to this post

    Hi Maya,

    Thanks for the quick reply.

    The grids ItemsSource is bound to a RadDataPager which in turn is bound to a property in my ViewModel exposed as IEnumerable<MyType> the underlying collection however is a RadObservableCollection<MyType> which in turn gets the data from the database through WCF RIA Services here's an extraction of the callback where the data is added to the collection:


                               myRadObservableCollection.SuspendNotifications();
                        myRadObservableCollection.Clear();
                        myRadObservableCollection.AddRange(o.Entities);
                        myRadObservableCollection.ResumeNotifications();

    I'm not sure I will be able to test with latest internal build right now but I'll do my best. I'm currently using Q3 2010.

    Tomas
  4. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 11 Jan 2011 Link to this post

    Hi again,

    I did a test with the latest internal build (2010.3.1304.1040). And the issue is still there. I've included a simple test application.
    Run this code and try to change MyGroupProperty from 1 to 2 and you'll see the behvior.

    xaml:

    <UserControl x:Class="SilverlightApplication2.MainPage"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
                 xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                 mc:Ignorable="d"
                 d:DesignHeight="300"
                 d:DesignWidth="400">

        <Grid x:Name="LayoutRoot"
              Background="White">
            <telerik:RadGridView x:Name="myGrid"
                                 ItemsSource="{Binding MyList}">
                <telerik:RadGridView.GroupDescriptors>
                    <telerik:GroupDescriptor Member="MyGroupProperty"
                                             SortDirection="Ascending">
                        <telerik:GroupDescriptor.AggregateFunctions>
                            <telerik:CountFunction Caption="Entries count: " />
                        </telerik:GroupDescriptor.AggregateFunctions>
                    </telerik:GroupDescriptor>
                </telerik:RadGridView.GroupDescriptors>

            </telerik:RadGridView>
        </Grid>
    </UserControl>


    cs:

    using System.Collections.Generic;
    using System.Windows.Controls;
    using Telerik.Windows.Data;

    namespace SilverlightApplication2
    {
        public partial class MainPage : UserControl
        {
            public MainPage()
            {
                InitializeComponent();
                this.DataContext = this;
            }

            private RadObservableCollection<SimpleClass> myList;
            public IEnumerable<SimpleClass> MyList
            {
                get
                {
                    if (myList == null)
                    {
                        myList = new RadObservableCollection<SimpleClass>()
                        {
                            new SimpleClass() { MyIntProperty = 1, MyStringProperty = "One", MyGroupProperty = 1},
                            new SimpleClass() { MyIntProperty = 2, MyStringProperty = "Two", MyGroupProperty = 1},
                            new SimpleClass()  { MyIntProperty = 3, MyStringProperty = "Three", MyGroupProperty = 1},
                            new SimpleClass()  { MyIntProperty = 4, MyStringProperty = "Four", MyGroupProperty = 2},
                        };
                    }

                    return myList;
                }
            }
        }

        public class SimpleClass
        {
            public int MyIntProperty { get; set; }
            public string MyStringProperty { get; set; }
            public int MyGroupProperty { get; set; }
        }
    }


    Tomas
  5. Answer
    Maya
    Admin
    Maya avatar
    4062 posts

    Posted 13 Jan 2011 Link to this post

    Hello Tomas,

    The issue has been resolved and the fix will be available with our next Latest Internal Build as well as with the Service Pack release.
    Thank you for your feedback.


    Best wishes,
    Maya
    the Telerik team
    Let us know about your Windows Phone 7 application built with RadControls and we will help you promote it. Learn more>>
  6. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 13 Jan 2011 Link to this post

    Hi Maya,

    That sounds good! I have another question regarding this topic though.
    As I wrote in the first post I've setup my GroupDescriptor like this:


    <telerik:RadGridView.GroupDescriptors>
        <telerik:GroupDescriptor Member="OutputType"
                                 SortDirection="Ascending">
            <telerik:GroupDescriptor.AggregateFunctions>
                <telerik:CountFunction Caption="Entries count: " />
            </telerik:GroupDescriptor.AggregateFunctions>
        </telerik:GroupDescriptor>
    </telerik:RadGridView.GroupDescriptors>

    Notice that I haven't specified the DisplayContent. In my model I've specified the OutputProperty like this:

    [Display(Name = "OutputType", ResourceType = typeof(ModelLocalization))]
    public int OutputType { get; set; }

    The RadGridview column it self picks this up and displays the correct localized value in the header. What I expected was since you tell the
    GroupDescriptor to bind to the Output property that it would automatically pick up the localized value and display it in the Grouppanel as well.
    But currently I have to explicitly set the DisplayContent property in the GroupDescriptor definition in xaml to bind to the same ResourceProperty as I have already done in my model, like this:

    ...
    DisplayContent="{Binding Path=Model.OutputType, Source={StaticResource ResourceWrapper}}"
    ...

    If I group at runtime the value shown in the grouppanel is the correct and localized one. Is this a bug too?

    Tomas



  7. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 13 Jan 2011 Link to this post

    Hi Tomas,

    The GroupDescriptor is not quite aware of its corresponding column. What you may try is to define a ColumnGroupDescriptor (in the code-behind) instead of the GroupDescriptor in xaml. You may take a look at our online documentation for a reference.
    A ColumnGroupDescriptor may be defined as follows:

    public MainPage()
            {
                InitializeComponent();

                ColumnGroupDescriptor columnDescriptor = new ColumnGroupDescriptor();
                columnDescriptor.Column = this.playersGrid.Columns[2];
                this.playersGrid.GroupDescriptors.Add(columnDescriptor);
            }



    Regards,
    Maya
    the Telerik team
    Let us know about your Windows Phone 7 application built with RadControls and we will help you promote it. Learn more>>
  8. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 13 Jan 2011 Link to this post

    Hi Maya,

    Yes your suggestions solves the value displayed on the screen but how do I add a Aggregatefunction to this group using this technique?

    The online documentation (http://www.telerik.com/help/silverlight/gridview-grouping-aggregates.html) uses the old GroupDescriptor

    Tomas
  9. Answer
    Maya
    Admin
    Maya avatar
    4062 posts

    Posted 13 Jan 2011 Link to this post

    Hi Tomas,

    You may add the aggregate function directly to the corresponding to the ColumnGroupDescriptor column:

    ColumnGroupDescriptor columnDescriptor = new ColumnGroupDescriptor();
    columnDescriptor.Column = this.playersGrid.Columns[2];
    CountFunction count = new CountFunction() { Caption = "Count: " };
    columnDescriptor.Column.AggregateFunctions.Add(count);
    this.playersGrid.GroupDescriptors.Add(columnDescriptor);


    Regards,
    Maya
    the Telerik team
    Let us know about your Windows Phone 7 application built with RadControls and we will help you promote it. Learn more>>
  10. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 26 Jan 2011 Link to this post

    Hi Maya,

    SP1 solved the increment/decrement issue, thank you.

    I have one last (hopefully) question in this area.
    In the AutoGeneratingColumn event of the RadGridView I check If a column is equal to OutputType and if so change
    the default columntype to a combobox column as well as apply the grouping etc.

    This works nicely however I noticed that the group by box in the grouppanel is left empty (see screenshot).
    But if I add this line of code: comboBoxColumn.CopyPropertiesFrom(e.Column);
    Everything works correct. Is this something I really have todo or is something going wrong inside the GridView?

    Tomas

    private void grid_AutoGeneratingColumn(object sender, Telerik.Windows.Controls.GridViewAutoGeneratingColumnEventArgs e)
        if (e.Column.UniqueName == "OutputType"

            var comboBoxColumn = new GridViewComboBoxColumn()

                ItemsSource = ViewModel.OutputTypes,
                DataMemberBinding = new Binding(e.Column.UniqueName),
                SelectedValueMemberPath = "Key"
                DisplayMemberPath = "Value"
                FilteringControl = new ComboBoxColumnFilteringControl()
            };
            comboBoxColumn.CopyPropertiesFrom(e.Column); //this line solves the problem
            e.Column = comboBoxColumn;
            ColumnGroupDescriptor columnDescriptor = new ColumnGroupDescriptor() { Column = e.Column };
            CountFunction count = new CountFunction() { Caption = "Entries count cs: " };
            columnDescriptor.Column.AggregateFunctions.Add(count);
            this.grid.GroupDescriptors.Add(columnDescriptor);

    }

  11. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 26 Jan 2011 Link to this post

    Hello Tomas,

    Unfortunately, I was not able to reproduce the issue you reported. I am sending you the sample project I used for testing it. Please take a look at it and let me know in case I have missed something from your settings and requirements.
    Furthermore, are you setting some theme to RadGridView ? Is this issue observed only for the GridViewComboBoxColumn or for the others too ? May you try to define the binding in your code-snippet as follows:

    DataMemberBinding = new Binding((e.Column as GridViewDataColumn).DataMemberBinding.Path.Path),



    All the best,
    Maya
    the Telerik team
    Let us know about your Windows Phone 7 application built with RadControls and we will help you promote it. Learn more>>
  12. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 26 Jan 2011 Link to this post

    Hi Maya,

    I found out where your test solution and my solution differs, I use a DataPager and it's the pager that's causing this behviour.
    I have a DataPager declared like this:

    <telerik:RadDataPager x:Name="DataPager1"
                          Grid.Row="1"
                          VerticalAlignment="Top"
                          Source="{Binding Clubs}"
                          DisplayMode="All"
                          PageSize="25"
                          IsTotalItemCountFixed="True" />
    And the grid like this:
    <telerik:RadGridView Grid.Row="0"
                         AutoGeneratingColumn="clubsGrid_AutoGeneratingColumn"
                         Name="clubsGrid"
                         ItemsSource="{Binding Path=PagedSource, ElementName=DataPager1}"
                         AutoGenerateColumns="True"
                         Margin="5">

    I also found a way no to use the CopyPropertiesFrom method and that is to switch order of the following lines:
    e.Column = comboBoxColumn;
    ColumnGroupDescriptor columnDescriptor = new ColumnGroupDescriptor() { Column = e.Column };
    So that I first instantiate the columnDescriptor and then setting e.Column to the new comboBoxColumn. like this:

    private void grid_AutoGeneratingColumn(object sender, Telerik.Windows.Controls.GridViewAutoGeneratingColumnEventArgs e)
    {
        if (e.Column.UniqueName == "OutputType")
        {
            var comboBoxColumn = new GridViewComboBoxColumn()
            {
                ItemsSource = ViewModel.OutputTypes,
                DataMemberBinding = new Binding(e.Column.UniqueName),
                SelectedValueMemberPath = "Key",
                DisplayMemberPath = "Value",
                FilteringControl = new ComboBoxColumnFilteringControl()
            };
            ColumnGroupDescriptor columnDescriptor = new ColumnGroupDescriptor() { Column = e.Column };
            e.Column = comboBoxColumn;  //setting this after columnDescriptor initialization also works
            CountFunction count = new CountFunction() { Caption = "Entries count cs: " };
            columnDescriptor.Column.AggregateFunctions.Add(count);
            this.grid.GroupDescriptors.Add(columnDescriptor);
        }
    }

    I'm not sure this is considered a bug or not but at least I found the cause of the problem, and also a quite simple solution.
    Btw it happens with other columntypes as well and I'm using the Office_Silver theme but I don't think that's relevant.

    Tomas
  13. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 28 Jan 2011 Link to this post

    Hi Tomas,

    I am happy to see that you have found a solution for your scenario. Still, we will investigate the issue. However, I was not able to reproduce it even when using a RadDataPager. Did you manage to get the same behavior with the sample I previously attached ? Did you change the Theme ?


    Greetings,
    Maya
    the Telerik team
    Let us know about your Windows Phone 7 application built with RadControls and we will help you promote it. Learn more>>
  14. Tomas
    Tomas avatar
    92 posts
    Member since:
    Jun 2010

    Posted 28 Jan 2011 Link to this post

    Hi Maya!

    You're absolutely right. At fist I was not able to reproduce it on the your sample project either so I started to investigate the differences and I just realized that for this error situation to occure one additional stetp is required. You need to wrap the grid and the pager inside a RadTabControl.

    So by using your sample project as a base the only thing thats needs to be changed besides adding references to the newly included components is to use the following xaml instead:

    <UserControl x:Class="GridViewComboBoxColumn.MainPage"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
                 xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                 xmlns:my="clr-namespace:GridViewComboBoxColumn"
                 mc:Ignorable="d"
                 d:DesignHeight="700"
                 d:DesignWidth="700">
        <UserControl.Resources>
            <my:MyViewModel x:Key="MyViewModel" />
        </UserControl.Resources>

        <telerik:RadTabControl>
            <telerik:RadTabItem Header="Testing">
                <Grid x:Name="LayoutRoot"
                      Background="White">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*" />
                        <RowDefinition Height="Auto" />
                    </Grid.RowDefinitions>
                    <telerik:RadGridView Grid.Row="0"
                                         AutoGeneratingColumn="clubsGrid_AutoGeneratingColumn"
                                         Name="clubsGrid"
                                         ItemsSource="{Binding Path=PagedSource, ElementName=DataPager1}"
                                         AutoGenerateColumns="True"
                                         Margin="5">
                    </telerik:RadGridView>
                    <telerik:RadDataPager x:Name="DataPager1"
                                          Grid.Row="1"
                                          VerticalAlignment="Top"
                                          Source="{Binding Clubs}"
                                          DisplayMode="All"
                                          PageSize="25"
                                          IsTotalItemCountFixed="True" />
                </Grid>
            </telerik:RadTabItem>
        </telerik:RadTabControl>
    </UserControl>

    Tomas
  15. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 31 Jan 2011 Link to this post

    Hi Tomas,

    Indeed, you quite correct. I have managed to reproduce the issue once the RadGridView is defined within a RadTabControl. Generally, the reason for the behavior you experience is that the Tab-control handles the events and creates its elements in its own sequence. Thus some of the events of the grid that relies on particular items to be created beforehand may not execute as expected. As the GridViewComboBoxColumn executes a separates logic for getting its required information, the data for the ColumnGroupDescriptor is not delivered on time.
    However, we will still make a further investigation on the issue and try to resolve it.
    Thank you for your patience and valuable feedback.


    All the best,
    Maya
    the Telerik team
    Let us know about your Windows Phone 7 application built with RadControls and we will help you promote it. Learn more>>
  16. Fredy
    Fredy avatar
    7 posts
    Member since:
    Mar 2012

    Posted 23 Nov 2012 Link to this post

    Hi,

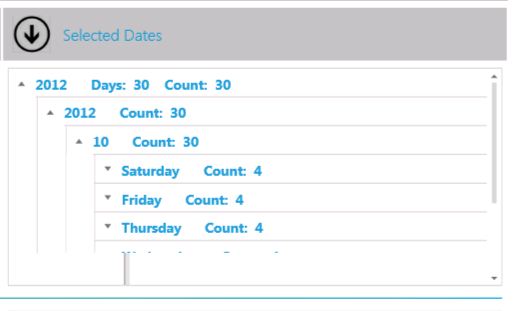

    How can make better this code? The idea is add CountFunction 'Days' in the groupHeader of 'Year' using ColumnGroupDescriptor in XAML.
    This code repite the 'year' grouping and don't show the footer CountFunction.



    <telerik:RadGridView.GroupDescriptors>
                               <telerik:GroupDescriptor Member="Year" SortDirection="Descending">
                                   <telerik:GroupDescriptor.AggregateFunctions>
                                       <telerik:CountFunction Caption="Days: " />
                                   </telerik:GroupDescriptor.AggregateFunctions>
                               </telerik:GroupDescriptor>
                               <telerik:ColumnGroupDescriptor  Column="{Binding Columns[\Year\], ElementName=DateListBox}" SortDirection="Descending" DisplayContent="Year">
                               </telerik:ColumnGroupDescriptor>
                               <telerik:ColumnGroupDescriptor Column="{Binding Columns[\Month\], ElementName=DateListBox}" SortDirection="Descending" DisplayContent="Month"/>
                               <telerik:ColumnGroupDescriptor Column="{Binding Columns[\DayOfWeek\], ElementName=DateListBox}" SortDirection="Descending" DisplayContent="DayOfWeek"/>
                           </telerik:RadGridView.GroupDescriptors>



    Tnks!.
Back to Top
