Force connection to Left connector

2 posts, 0 answers
  1. Rob
    Rob avatar
    76 posts
    Member since:
    Jan 2012

    Posted 09 Jan 2017 Link to this post

    Just researching this component to see if it can do what I want.

    I have slightly modified the 'First look' example to see if I can modify it to suit.

    From reading the documentation, I should be able to force the connector to attach to a shape on one side , but I cannot get it to work.

    As a simple test I tried to add a connection between a member to a Node

        Private Sub PopulateWithData()
            Dim dataXml As XElement = XElement.Load("Organization.xml")
            For Each element As XElement In dataXml.Elements("Node")
                Dim node As OrgContainerShape = Me.CreateNode(element, Nothing)
                node.BaseColor = Me.groupColor(0)
                Me.RadDiagram1.AddShape(node)
                currentLayoutSettings.Roots.Add(node)
                Me.GetSubNodes(element, node, 2)
            Next
    '------- Add a new connection as a test -------------------------------
            Dim connection As New RadDiagramConnection()
            connection.ConnectionType = Telerik.Windows.Diagrams.Core.ConnectionType.Polyline
            Dim parentNode = Me.RadDiagram1.Shapes(0)
            Dim destNode = Me.RadDiagram1.Shapes(7)
            connection.Source = parentNode
            connection.Target = destNode
            connection.SourceConnectorPosition = "Left"
            connection.TargetConnectorPosition = "Auto"
            Me.RadDiagram1.AddConnection(connection)
        End Sub

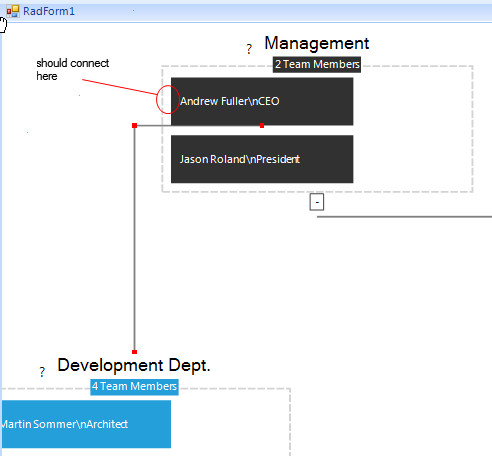

    But it always connects to the bottom of the shape.

    What am I doing wrong? ( I have checked and the shape does have a Left connector)

    Many thanks

    Rob



  2. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3835 posts

    Posted 10 Jan 2017 Link to this post

    Hello Rob,

    Thank you for writing.

    By default, SourceConnectorPosition/TargetConnectorPosition properties of RadDiagramConnection controls where the connection to be placed. There are five predefined strings that you can use to define where to position the connectors of the connection. Please refer to the following help article: http://docs.telerik.com/devtools/winforms/diagram/diagram-items/connections/connections

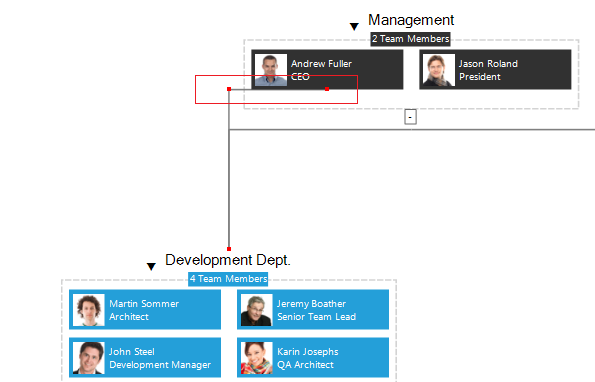

    Actually, the connection is at the bottom of the shape, not on the left. Please refer to the attached screenshot. However, the Organization Chart example represents a highly customized RadDiagram. This is intended behavior for this example because it is supposed to display a hierarchy from top to bottom. Hence, the connections are placed at the bottom/top of the shape respectively after applying the LayoutType.Tree. That is why in order to obtain the connection with the desired connectors position, add it in the Form.Shown event after the layout is applied.

    I hope this information helps. Should you have further questions I would be glad to help.

    Regards,
    Dess
