Export to csv "String" Key Word Apperaing In Output

[Shivam]

Hi,

I have The Below Code for Exporting My Various RadGridView inside RadTabcontol to a .csv file on local:

IList<RadGridView> AllRadGridViews { get; set; }

        public void ExportDataLog(object pResource)

        {

            try

            {

                AllRadGridViews = new ObservableCollection<RadGridView>();



                GridViewCsvExportOptions GridViewCsvExportOptions = new GridViewCsvExportOptions();

                GridViewCsvExportOptions.Format = ExportFormat.Csv;

                GridViewCsvExportOptions.ShowColumnHeaders = true;

                GridViewCsvExportOptions.ShowColumnFooters = true;

                GridViewCsvExportOptions.ShowGroupFooters = false;







                //the empty rows in grid doesnot have to open the save dialog

                if (pResource.GetType() == typeof(Grid))

                {



                    SaveFileDialog saveLogFileDialog = new SaveFileDialog()

                    {

                        DefaultExt = "csv",

                        Filter = "CSV Files (*.csv)|*.csv|All files (*.*)|*.*",

                        FilterIndex = 1

                    };

                    if (saveLogFileDialog.ShowDialog() == true)

                    {

                        using (System.IO.Stream stream = saveLogFileDialog.OpenFile())

                        {

                            if (((Grid)(pResource)).Children.ElementAt(0).GetType() == typeof(RadTabControl))

                            {



                                RadTabControl RadTabControl = new RadTabControl();

                                RadTabControl = (RadTabControl)((Grid)(pResource)).Children.ElementAt(0);





                                RadTabItem SummaryRadTabItem = new RadTabItem();

                                RadTabItem DataRadTabItem = new RadTabItem();

                                RadTabItem BitmapRadTabItem = new RadTabItem();



                                RadGridView radTextBoxData = new RadGridView();



                                if (radTextBoxData.Items.Count > 0)

                                    radTextBoxData.Items.Clear();



                                radTextBoxData.ShowColumnHeaders = false;



                                radTextBoxData.Items.Add("Name: " + DeviceName);

                                radTextBoxData.Items.Add("Model: " + DeviceModel);



                                if (radTextBoxData.Items.Count > 0)

                                    AllRadGridViews.Add(radTextBoxData);



                                //SummaryRadTabItem

                                SummaryRadTabItem = (RadTabItem)((System.Windows.UIElement)(((System.Windows.Controls.ContentControl)(RadTabControl.ChildrenOfType<RadTabItem>().ElementAt(0)))));



                                Grid grdSummaryGrid = new Grid();

                                grdSummaryGrid = (Grid)((System.Windows.FrameworkElement)(((System.Windows.Controls.ContentControl)(SummaryRadTabItem)).Content));



                                RadGridView radgrdSummaryGrid = new RadGridView();

                                RadGridView radgrdNFPA110Summary = new RadGridView();

                                RadGridView radgrdNFPAExtendedSummary = new RadGridView();

                                radgrdSummaryGrid = (RadGridView)grdSummaryGrid.FindName("summaryGrid");

                                radgrdNFPA110Summary = (RadGridView)grdSummaryGrid.FindName("grdNFPA110Summary");

                                radgrdNFPAExtendedSummary = (RadGridView)grdSummaryGrid.FindName("grdNFPAExtendedSummary");



                                if (radgrdSummaryGrid.Items.Count > 0)

                                    AllRadGridViews.Add(radgrdSummaryGrid);

                                if (radgrdNFPA110Summary.Items.Count > 0)

                                    AllRadGridViews.Add(radgrdNFPA110Summary);

                                if (radgrdNFPAExtendedSummary.Items.Count > 0)

                                    AllRadGridViews.Add(radgrdNFPAExtendedSummary);



                                RadGridView radGenset = new RadGridView();

                                RadGridView radATS = new RadGridView();

                                radGenset = (RadGridView)grdSummaryGrid.FindName("radSummaryGensetData");

                                radATS = (RadGridView)grdSummaryGrid.FindName("radSummaryATSData");



                                if (radGenset.Items.Count > 0)

                                    AllRadGridViews.Add(radGenset);

                                else if (radATS.Items.Count > 0)

                                    AllRadGridViews.Add(radATS);



                                RadGridView radgrdGensetNFPA = new RadGridView();

                                RadGridView radgrdATSNFPA = new RadGridView();

                                RadGridView radgrdGensetNFPAExtended = new RadGridView();

                                RadGridView radgrdATSNFPAExtended = new RadGridView();

                                radgrdGensetNFPA = (RadGridView)grdSummaryGrid.FindName("radgrdSummaryGensetNFPA");

                                radgrdATSNFPA = (RadGridView)grdSummaryGrid.FindName("radgrdSummaryATSNFPA");

                                radgrdGensetNFPAExtended = (RadGridView)grdSummaryGrid.FindName("radgrdSummaryGensetNFPAExtended");

                                radgrdATSNFPAExtended = (RadGridView)grdSummaryGrid.FindName("radgrdSummaryATSNFPAExtended");



                                if (radgrdGensetNFPA.Items.Count > 0)

                                    AllRadGridViews.Add(radgrdGensetNFPA);

                                else if (radgrdATSNFPA.Items.Count > 0)

                                    AllRadGridViews.Add(radgrdATSNFPA);

                                if (radgrdGensetNFPAExtended.Items.Count > 0)

                                    AllRadGridViews.Add(radgrdGensetNFPAExtended);

                                else if (radgrdATSNFPAExtended.Items.Count > 0)

                                    AllRadGridViews.Add(radgrdATSNFPAExtended);



                                RadGridView radCommentsData = new RadGridView();

                                if (radCommentsData.Items.Count > 0)

                                    radCommentsData.Items.Clear();





                                radCommentsData.Items.Add("Comments: " + ReportComments);







                                if (radCommentsData.Items.Count > 0)

                                    AllRadGridViews.Add(radCommentsData);






                                foreach (var exportgrid in AllRadGridViews)

                                {

                                    stream.Flush();

                                    exportgrid.Export(stream, GridViewCsvExportOptions);

                                    stream.Flush();

                                }

                            }



                        }



                    }

                }

            }

            catch

            {



            }

        }

 I am using pure MVVM approach for my functionality,

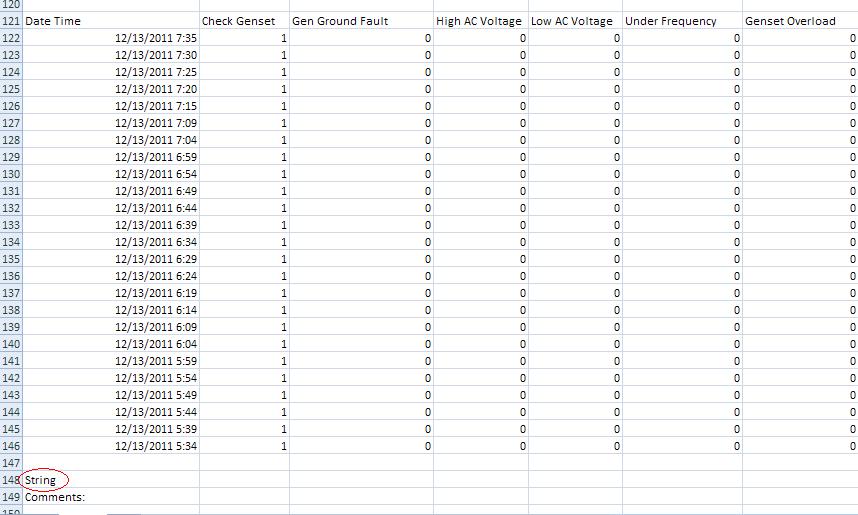

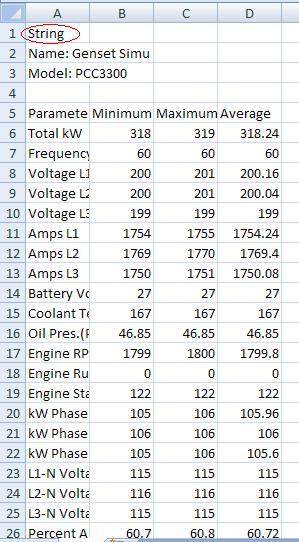

But in the output file I am getting the "String" over the above BOLD lines:

Please Provide your Input on how to get rid of this "String" keyword
PFA ScreenShot of my .csv,

Regards,
SHIVAM

[Dimitrina]

Hello Shivam,

 It seems that an empty header row is exported. You need to subscribe for the ElementExporting event of the RadGridView and cancel the export of ExportElement.HeaderRow. For example:

void radTextBoxData_ElementExporting(object sender, GridViewElementExportingEventArgs e)
       {
           if (e.Element == ExportElement.HeaderRow)
           {
               e.Cancel = true;
           }
       }

Please try how this works.

Kind regards,
Didie
the Telerik team
