End of text is being trimmed after using PdfFormatProvider to export an excel workbook

[Doug]

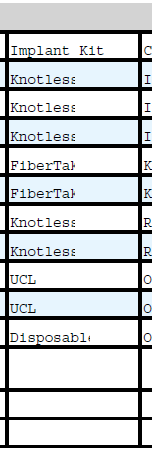

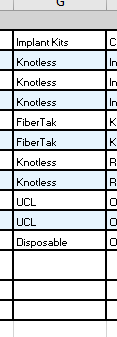

I'm using Telerik.Documents.Spreadsheet (2022.3.1108) .Net C# 6.0.  I have my excel spreadsheet formated as I want (Excel.png).  The text in the cells are clearly visible.  Once the same spreadsheet is export using PdfFormatProvider.  The last half a character is trimmed (not visible). (Pdf.png).  While creating the excel file I do have "AutoFitWidth()" set for all the columns.

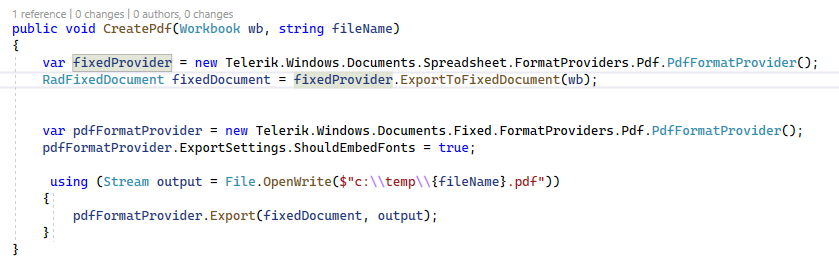

Export Code here

        public void CreatePdf(Workbook wb, string fileName)
        {
            var fixedProvider = new Telerik.Windows.Documents.Spreadsheet.FormatProviders.Pdf.PdfFormatProvider();
            RadFixedDocument fixedDocument = fixedProvider.ExportToFixedDocument(wb);


            var pdfFormatProvider = new Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.PdfFormatProvider();
            pdfFormatProvider.ExportSettings.ShouldEmbedFonts = true;

             using (Stream output = File.OpenWrite($"c:\\temp\\{fileName}.pdf"))
            {
                pdfFormatProvider.Export(fixedDocument, output);
            }
        }

[Nikolay Demirev]

Hi Doug,

The AutoFitWidth feature requires the text in the cells of the document to be correctly measured. As the .NET Standard doesn't have any API for text measuring, we have implemented a simple text measurement suitable for most cases but not all. The good thing is that there is an easy way to implement better text measurement using the PdfProcessing library.

Before implementing the text measurement, you should use a custom font provider to measure the text correctly. The PdfProcessing needs to access the font of the measured text. In this article, you can find an example of how to implement that.

After implementing a custom font provider, it is time to provide the text measurement using the PdfProcessing library. This article explains how to do that.

After providing the required font and setting the SpreadFixedTextMeasurer, your document should size its columns perfectly.

Regards,
Nikolay Demirev
Progress Telerik
