Hi

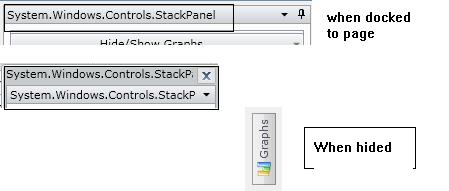

I have added the below code for displaying Image and text in rad pane .Header controls are displaying good when hide but not displaying controls when the panel bar is docked instead its displaying System.Windows .Controls.StackPanel on it.

code:







<





telerikDocking:RadSplitContainer Orientation="Vertical" InitialPosition="DockedRight" MaxWidth="500">

















<telerikDocking:RadPaneGroup telerikDocking:ProportionalStackPanel.RelativeSize="100, 200" >

























<telerikDocking:RadPane x:Name="GraphsH" CanUserClose="False" Margin="10" CanDockInDocumentHost="False" >

















<telerikDocking:RadPane.Header>

















<StackPanel Orientation="Horizontal">

















<Image Source="Panel Images/ico_graph.png"></Image>





















<TextBlock Text="Graphs"></TextBlock>



















</StackPanel>

















</telerikDocking:RadPane.Header>

















</telerikDocking:RadPane>

















</telerikDocking:RadPaneGroup>

















</telerikDocking:RadSplitContainer>



Regards,





Nav





Hi Nav,

Thank you for contacting us.

The header of the Pane is a String. So the StackPanel to show properly in the header you will have to also set the TitleTemplate.
Attached is a sample project which illustrates that.

If you need further assistance please do not hesitate to contact us again.

Best regards,
Konstantina
the Telerik team
