Datagridview - Column chooser

[Radek]

Hello,

I want to choose column by checkboxes, something like that:

I

It is possible?

Thank you for your answer

[Nadya | Tech Support Engineer]

Hello, Radek,

Yes, you can use ColumnChooser in RadGridView. To enable it, you should set the AllowColumnChooser property to true.

More information is available here: Working with ColumnChooser - RadGridView - Telerik UI for WinForms

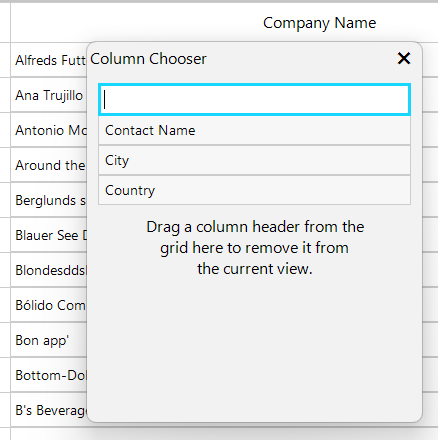

By default, it doesn't have a checkbox, but you still can add/remove columns from it:

Regards,
Nadya | Tech Support Engineer
Progress Telerik

[Radek]

Hello,

I use the default column chooser, but I do not like it.

I think that when I see all columns and I get easily check/uncheck column that it is much easier and clearer than drag&drop

Regards

Radek

[Nadya | Tech Support Engineer]

Hello, Redek,

Thank you for the provided additional information. Now I understand that you are aware of the existing behavior of Column Chooser but you would like to change it.

Yes, you can customize its behavior by adding a checkboxes. However, by default Column Chooser is not designed to work with checkboxes but via drag-drop. In order to customize it, you can add check boxes but you should then take care of the further implementation and handle the Checkbox_ToggleStateChanged event for further actions such as add/remove columns.

You can use the following code snippet that demonstrates how to add check boxes:

private void RadGridView1_ColumnChooserItemElementCreating(object sender, ColumnChooserItemElementCreatingEventArgs e)
{
    var column = e.Column;
    RadCheckBoxElement checkbox = new RadCheckBoxElement
    {
        IsChecked = column.IsVisible
    };
    checkbox.ToggleStateChanged -= Checkbox_ToggleStateChanged;
    checkbox.ToggleStateChanged += Checkbox_ToggleStateChanged;

    e.ItemElement.Children.Insert(0, checkbox);
    e.ItemElement.Padding = new Padding(20, 0, 0, 0);
}

Here you can see the result:

Feel free to customize further for the column chooser and achieve the desired behavior.

I hope this information helps. Let me know if you have other questions.





[Radek]

Hello,

thank you, code is OK. But it show only hidden columns, it is possible to show all columns in datagridview?

Checked will be hidden and unchecked will be visible (or vice versa)?

[Nadya | Tech Support Engineer]

Hello, Radek,

With the current implementation, the columns are managed by looking for their visibility property. When a column is presented in the ColumnChooser, it is not visible in the grid and vice versa. Hence, you can not achieve the exact scenario from the picture. Initially, I thought you want to show a check boxes for other purposes. Later, I understand that you need these checkboxes to manage the columns appearance. At this moment ColumnChooser in RadGridView does not provide such behavior as it relies on drag-drop operations.

However, I found this reasonable and log a feature request on our feedback portal on your behalf: RadGridVew: Provide option to choose columns by checkbox in Column Chooser

You can vote for the item or add your comment to it. I also updated your Telerik Points.

Regards,
Nadya
