Data from Join tables not being displayed properly

[Clement]

I'm displaying a List of Schemes on a grid and two of the columns are from the following join tables.

1. SchemeTown -- stores towns associated with the scheme (scheme_id, town_id)
2. SchemeDivision - stores divisions associated with the scheme (scheme_id, division_id)

on the grid, among other information, I'm successfully displaying name of the town and division for each scheme.

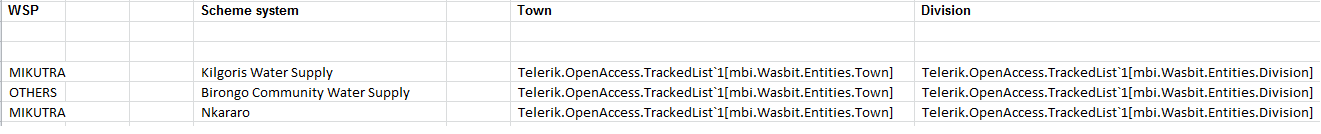

Problem comes when I export this data to an excel sheet or of I want to display this data in a report, the town and division name are not exported, I've attached an excel sheet to show how they are being outputted.

The export to excel and report display get their data from the same data source as the grid mentioned above. The following code block shows how this data is retrieved from the database.

public List<SchemeSystem> GetAllSchemeSystems()

        {

            return (from schemeSystem in DataHandler.Extent<SchemeSystem>() where schemeSystem.Planned == false & schemeSystem.Id != Guid.Empty select schemeSystem).ToList<SchemeSystem>();

        }


and the following is the SchemeSystem entity

public partial class SchemeSystem
   {

       //The 'no-args' constructor required by OpenAccess.
       public SchemeSystem()
       {
       }

       [Telerik.OpenAccess.FieldAlias("id")]
       public Guid Id
       {
           get { return id; }
           private set { id = value; }
       }

       [Telerik.OpenAccess.FieldAlias("name")]
       public string Name
       {
           get { return name; }
           set { this.name = value; }
       }


       [Telerik.OpenAccess.FieldAlias("wsp")]
       public Wsp Wsp
       {
           get { return wsp; }
           set { this.wsp = value; }
       }

       [Telerik.OpenAccess.FieldAlias("planned")]
       public bool Planned
       {
           get { return planned; }
           set { this.planned = value; }
       }

       [Telerik.OpenAccess.FieldAlias("schemeSystemData")]
       public IList<SchemeSystemData> SchemeSystemDatas
       {
           get { return schemeSystemData; }
       }

       [Telerik.OpenAccess.FieldAlias("schemeTowns")]
       public IList<Town> schemeTown
       {
           get { return schemeTowns; }
       }
       [Telerik.OpenAccess.FieldAlias("schemeDivisions")]
       public IList<Division> schemeDivision
       {
           get { return schemeDivisions; }
       }


   }

What do I need to do to display the Division and Town names in my report and Excel?

[Viktor Zhivkov]

Hello,

My suggestion is to define a Fetch Strategy,Plan or Group that load schemeTown and schemeDivision collections explicitly before exporting data to Excel.
This can find more information how to use Fetch Plans and our Extent based API in this set of articles or check how to use the new context based API in this article.

If you need further assistance please post the code that does the actual export to the Excel file.

All the best,
Viktor Zhivkov
the Telerik team
