    Hello,

    i'm trying to use Telerik Silverlight Chart to present a 30.000 points clickable graph.
    I choose to use a 1000 points sampling graph and I configure my event "DefaultView.ChartArea.ItemClick" to be fired each time the user click to one point.

    My problem is that my graph isn't precise AND that it isn't showing the true values binded.
    I tried to modify my sampling function without succes.

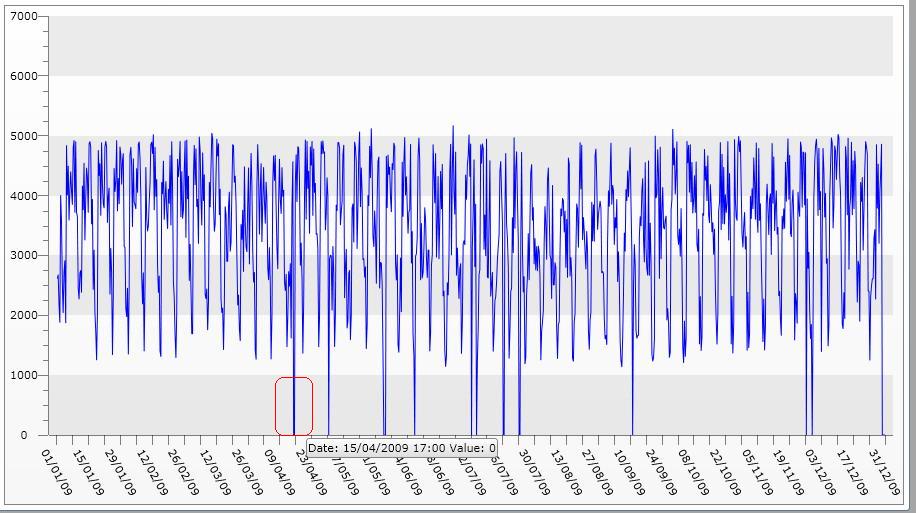

    I atach to this thread a image of my rended graph. The red region is where the user points his mouse and always get the tooltip "Date: 15/04/2009 Value: 0".  This point doesn't value 0.

    I will add also my graph configuration code:
               Dim lineSeries As New LineSeriesDefinition()
            lineSeries.ShowItemLabels = False
            lineSeries.ShowPointMarks = False
            lineSeries.ShowItemToolTips = True
            lineSeries.Appearance.Stroke = New SolidColorBrush(Colors.Blue)
            lineSeries.Appearance.StrokeThickness = 1

            Dim dataMapping As New SeriesMapping()
            dataMapping.SeriesDefinition = lineSeries
            dataMapping.ItemMappings.Add(New ItemMapping("Value.DateHeure", DataPointMember.XValue))
            dataMapping.ItemMappings.Add(New ItemMapping("Value.Valeur", DataPointMember.YValue))
            dataMapping.ItemMappings(1).SamplingFunction = ChartSamplingFunction.Min

            rcGraphPoint.SeriesMappings.Clear()
            rcGraphPoint.SeriesMappings.Add(dataMapping)

            rcGraphPoint.DefaultView.ChartArea.AxisY.MinValue = 0
            rcGraphPoint.DefaultView.ChartArea.AxisY.AutoRange = True
            rcGraphPoint.DefaultView.ChartArea.AxisX.AutoRange = False
            rcGraphPoint.DefaultView.ChartArea.AxisX.MinValue = lPoints._liste.First.Key.ToOADate
            rcGraphPoint.DefaultView.ChartArea.AxisX.MaxValue = lPoints._liste.Last.Key.ToOADate
            rcGraphPoint.DefaultView.ChartArea.AxisX.Step = 7
            rcGraphPoint.DefaultView.ChartArea.AxisX.LabelStep = 2
            rcGraphPoint.DefaultView.ChartArea.AxisX.DefaultLabelFormat = "dd/MM/yy"
            rcGraphPoint.DefaultView.ChartArea.AxisX.LabelRotationAngle = 60
            rcGraphPoint.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Inside
            rcGraphPoint.DefaultView.ChartArea.LabelFormatBehavior = LabelFormatBehavior.None
            rcGraphPoint.DefaultView.ChartArea.EnableAnimations = True

            AddHandler rcGraphPoint.DefaultView.ChartArea.ItemClick, AddressOf rcGraphPoint_Click
            AddHandler rcGraphPoint.DefaultView.ChartArea.ItemToolTipOpening, AddressOf rcGraphPoint_ItemToolTipOpening

            rcGraphPoint.DefaultView.ChartLegend.Visibility = Windows.Visibility.Collapsed
            rcGraphPoint.SamplingSettings.SamplingThreshold = 1000

            rcGraphPoint.ItemsSource = lPoints._liste



    Thanks for your answers!
  2. Evgeni "Zammy" Petrov
    Admin
    Evgeni "Zammy" Petrov avatar
    168 posts

    Posted 09 Nov 2010 Link to this post

    Hi Leonardo,

    What happens when you change the sampling function?

    dataMapping.ItemMappings(1).SamplingFunction = ChartSamplingFunction.Average



    In your example it is set to Min in the ItemMapping and getting a 0 value is the right behevior.

    Here you can read about our sampling functionality:
    http://www.telerik.com/help/silverlight/radchart-features-sampling.html

    Best wishes,
    Evgeni "Zammy" Petrov
    the Telerik team
