Hi,
I am using this version 2010.3 1314 of product and want to do something like this:
http://demos.telerik.com/silverlight/#Chart/Aggregates
(Chart grouping and aggregetion)
It's my grid:
<telerik:RadGridView x:Name="ctlrGridView" AutoGenerateColumns="false" RowHeight="20" IsFilteringAllowed="True" Grid.Column="0" Grouped="ctlrGridView_Grouped" ItemsSource="{Binding Path=DataTable, Mode=TwoWay}" >
<telerik:RadGridView.Columns>
<telerik:GridViewDataColumn DataMemberBinding="{Binding Path=Customer}" Header="Klientas" Width="0.5*"/>
<telerik:GridViewDataColumn DataMemberBinding="{Binding Path=Title}" Header="Data" DataFormatString="{}{0:yyy-MM-dd}" Width="0.25*"/>
<telerik:GridViewDataColumn DataMemberBinding="{Binding Path=Debt}" Header="Skola" Width="0.25*" IsGroupable="False" />
</telerik:RadGridView.Columns>
</telerik:RadGridView>
and there is chart:
<telerik:RadChart x:Name="ctlrAggregationChart" >
</telerik:RadChart>
I write a method:
private void Binding_ctlrAggregationChart()
{
ctlrAggregationChart.ItemsSource = null;
ctlrAggregationChart.SeriesMappings.Clear();
SeriesMapping mapping1 = new SeriesMapping();
ChartAggregateFunction aggFunct = (ChartAggregateFunction)Enum.Parse(typeof(ChartAggregateFunction), (this.cmbAggregation.SelectedItem as RadComboBoxItem).Content as string, true);
mapping1.ItemMappings.Add(new ItemMapping("Pelnas", DataPointMember.YValue, aggFunct));
mapping1.SeriesDefinition = new BarSeriesDefinition();
foreach (Telerik.Windows.Data.GroupDescriptor descriptor in ctlrGridView.GroupDescriptors)
{
mapping1.GroupingSettings.GroupDescriptors.Add(new ChartGroupDescriptor((descriptor as Telerik.Windows.Data.GroupDescriptor).Member));
}
if (ctlrGridView.GroupDescriptors.Count > 1 && (cmbAggregation.SelectedItem as RadComboBoxItem).Content.ToString().ToLower() != "none")
{
Telerik.Windows.Data.GroupDescriptor lastGroupDescriptor = (Telerik.Windows.Data.GroupDescriptor)ctlrGridView.GroupDescriptors[ctlrGridView.GroupDescriptors.Count - 1];
mapping1.ItemMappings.Add(new ItemMapping(lastGroupDescriptor.Member, DataPointMember.XCategory));
}
mapping1.SeriesDefinition.ItemLabelFormat = "#Y{C0}";
ctlrAggregationChart.DefaultView.ChartArea.AxisY.DefaultLabelFormat = "C";
ctlrAggregationChart.SeriesMappings.Add(mapping1);
ctlrAggregationChart.DefaultView.ChartArea.AxisY.Title = "Pelnas";
ctlrAggregationChart.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Between;
ctlrAggregationChart.ItemsSource = ctlrGridView.ItemsSource; ///// WHERE I get ERROR !!! NullReferenceException
}

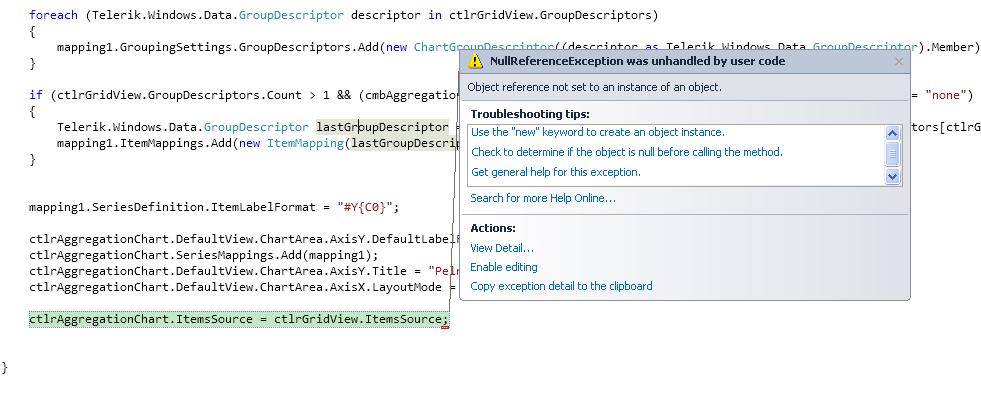

I attach a print screen with error.
Maybe someone can tell me, what I am doing wrong, or post a simple working example.
In previous version this code work perfectly, but in 2010.3 1314 version not, or maybe I make somewhere mistakes.
Thanks,
Jara
