Cartesian Chart Stack100 series label

2 Answers 71 Views
Chart
This is a migrated thread and some comments may be shown as answers.
Craig Mellon
Top achievements
Rank 1
Craig Mellon asked on 27 Sep 2012, 11:14 AM
Hi, I'm using the RadCartesianChart and bind four series using the Stack100 combine mode. I have a few issues when using the series labels:

1. It skips a series - the first series label is actually shown in the second series, please see on image; the first 100000 value should be displayed in the green bar, because of this the chart only shows 3 values instead of 4.
2. I cannot find anyway to declare a label format in the XAML, e.g I need to change 130000 to be shown as £130K
3. How can I control the labels margin and alignment...I need to right align the labels and ensure they vertically aligned center in the bar

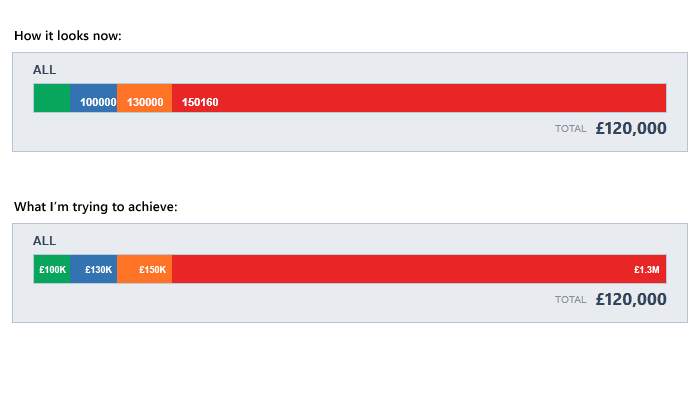

Please see image attached outling how the bar looks now and how it should look, I've spent hours searching your forums and help files but cannot find a solution.

Many thanks for any help you can provide!

2 Answers, 1 is accepted

Sort by
0
Accepted
Petar Kirov
Telerik team
answered on 02 Oct 2012, 10:24 AM
Hi Craig,

Here are the things you need to know about series items (some which you might already know):
  • In order for the series labels to be displayed, you have to set the property ShowLabels of the corresponding series to true
  • By default the label visualizes the Value of the corresponding data point, but if you want something else to be displayed you have to set the series LabelDefinition property:
    <telerik:BarSeries CombineMode="Stack100" ShowLabels="True">
        <telerik:BarSeries.LabelDefinitions>
            <telerik:ChartSeriesLabelDefinition Binding="Name"/>
  In this case the property Name of the underlying business object will be used for the series label
  • You can use the VerticalAlignment and HorizontalAlignment and Margin properties to position the series label.
  • You can use the Format property of the ChartSeriesLabelDefinition to define your custom string. The format is "{}{0:C0}K"
  • However in your case the "K " suffix will not be enough, because you have values larger than 1000000, for which you need the "M" suffix. In this case the most flexible solution is to use a custom coverter. In order to use it you will have to define a DataTemplate for the series labels to use. For example:
    <telerik:BarSeries CombineMode="Stack100" ShowLabels="True">
      <telerik:BarSeries.LabelDefinitions>
        <telerik:ChartSeriesLabelDefinition VerticalAlignment="Center"
                                 HorizontalAlignment="Center">
          <telerik:ChartSeriesLabelDefinition.Template>
            <DataTemplate>
              <TextBlock
                Text="{Binding Converter={StaticResource converter}}"/>

I have attached an example project demonstrating this.

Regards,
Petar Kirov
the Telerik team

Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

0
Craig Mellon
Top achievements
Rank 1
answered on 02 Oct 2012, 11:32 AM
