Hi,
I am trying to draw audiogram using charts. There are two specific requirements:
1 - The Y axis has range from -10 to 130 and it should show in reverse order i.e. -10 on top and 130 at the bottom.
2 - The X axis has fixed labels starting from 125, 250, 500, 750, 1000, 2000, 4000 ... upto 13000.
3 - If a ValuePoint is on 130 a different pointer needs to be displayed.

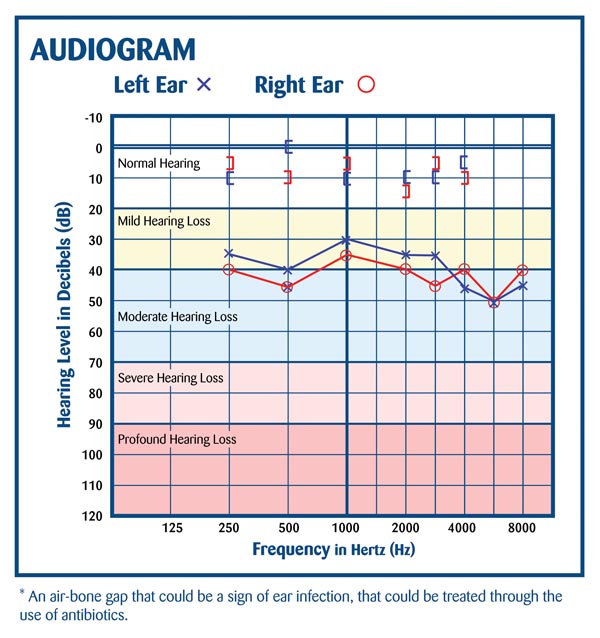

Can you please tell me how can I achieve this? I am attaching a snap shot of audiogram for your reference.
Thanks
Deven
I am trying to draw audiogram using charts. There are two specific requirements:
1 - The Y axis has range from -10 to 130 and it should show in reverse order i.e. -10 on top and 130 at the bottom.
2 - The X axis has fixed labels starting from 125, 250, 500, 750, 1000, 2000, 4000 ... upto 13000.
3 - If a ValuePoint is on 130 a different pointer needs to be displayed.
Can you please tell me how can I achieve this? I am attaching a snap shot of audiogram for your reference.
Thanks
Deven
5 Answers, 1 is accepted
0
Hi Deven,
Unfortunately I believe it will be quite difficult to achieve this sort of very custom chart with RadChart out of the box. We sincerely apologize for the inconvenience.
Kind regards,
Vladimir Milev
the Telerik team
