animation while loading tooltip

3 Answers 54 Views
Chart
This is a migrated thread and some comments may be shown as answers.
cielo valdoz
Top achievements
Rank 1
cielo valdoz asked on 14 May 2010, 02:48 AM
Hi,

Im adding a tooltip chart within a chart and im getting the data using wcf service. but it takes time before loading the tooltip chart. how can i display a loading animation or busy icon while calling the service? whenever i point the mouse, the tooltip chart will appear but without data then after a few seconds, it will load the data from datatabase.

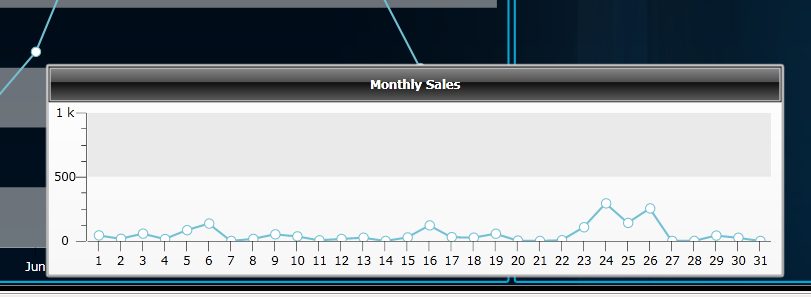

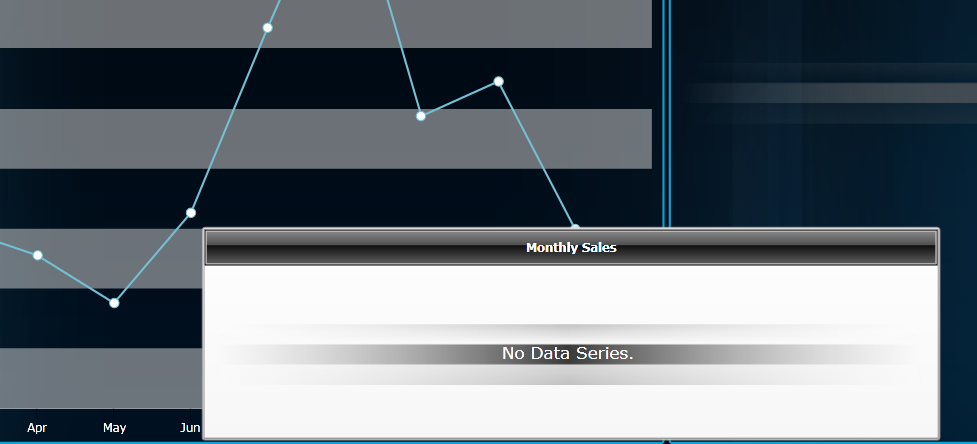

Pls see the screenshot i attached.

Dim chartToolTip As New RadChart()

Private Sub ChartTotalSales_ItemToolTipOpening(ByVal tooltip As Telerik.Windows.Controls.Charting.ItemToolTip2D, ByVal e As Telerik.Windows.Controls.Charting.ItemToolTipEventArgs) Handles ChartTotalSales.ItemToolTipOpening

        Dim bitMod As Integer
        Dim intCategoryGroup As Integer
        Dim intCategory As Integer
        Dim dateFrom As Date
        Dim dateTo As Date
        Dim timeFrom As TimeSpan
        Dim timeTo As TimeSpan
        Dim intTerminal As Integer
        Dim intSalesPerson As Integer

        chartToolTip = New RadChart
        If chkTotalSalesAll.IsChecked Then
            bitMod = -1
            intCategoryGroup = 0
            intCategory = 0
        Else
            If chkTotalSalesMOD.IsChecked Then
                bitMod = 1
            Else
                bitMod = 0
            End If
            intCategoryGroup = cmbTotalSalesCategoryGroup.SelectedValue
            intCategory = cmbTotalSalesCategory.SelectedValue
        End If

        If chkTotalSalesTerminalAll.IsChecked Then
            intTerminal = 0
        Else
            intTerminal = cmbTotalSalesTerminal.SelectedValue
        End If

        If chkTotalSalesSalesPersonAll.IsChecked Then
            intSalesPerson = 0
        Else
            intSalesPerson = cmbTotalSalesSalesPerson.SelectedValue
        End If

        If rbtTotalSalesPeriodDates.IsChecked Then
            dateFrom = dteTotalSalesPeriodFrom.SelectedDate
            dateTo = dteTotalSalesPeriodTo.SelectedDate
        ElseIf rbtTotalSalesPeriodWeek.IsChecked Then
            dateFrom = Now.Date.AddDays(-7)
            dateTo = Now.Date
        ElseIf rbtTotalSalesPeriodMonth.IsChecked Then
            dateFrom = Now.Date.AddMonths(-1)
            dateTo = Now.Date
        ElseIf rbtTotalSalesPeriodTrimester.IsChecked Then
            dateFrom = Now.Date.AddMonths(-3)
            dateTo = Now.Date
        ElseIf rbtTotalSalesPeriodYear.IsChecked Then
            dateFrom = Now.Date.AddYears(-1)
            dateTo = Now.Date
        End If

        If rbtTotalSalesPeriodTime.IsChecked Then
            timeFrom = timeTotalSalesPeriodFrom.SelectedTime
            timeTo = timeTotalSalesPeriodTo.SelectedTime
        ElseIf rbtTotalSalesPeriodBreakfast.IsChecked Then
            timeFrom = New TimeSpan(6, 0, 0)
            timeTo = New TimeSpan(10, 59, 0)
        ElseIf rbtTotalSalesPeriodLunch.IsChecked Then
            timeFrom = New TimeSpan(11, 0, 0)
            timeTo = New TimeSpan(12, 59, 0)
        ElseIf rbtTotalSalesPeriodDinner.IsChecked Then
            timeFrom = New TimeSpan(18, 0, 0)
            timeTo = New TimeSpan(21, 59, 0)
        ElseIf rbtTotalSalesPeriodLateNight.IsChecked Then
            timeFrom = New TimeSpan(22, 0, 0)
            timeTo = New TimeSpan(23, 59, 0)
        End If

        Select Case fctGetPeriod()
            Case 2
                Dim mService As DashboardService.DashboardClient = New DashboardService.DashboardClient()
                AddHandler mService.GetWeeklySalesCompleted, AddressOf webService_GetWeeklySalesCompleted


                mService.GetWeeklySalesAsync(bitMod, intCategoryGroup, intCategory, e.DataPoint.XValue, _
                                            dateFrom, dateTo, timeFrom, timeTo, intTerminal, intSalesPerson)
                chartToolTip.Height = 200
                chartToolTip.Width = 350
                chartToolTip.DefaultView.ChartLegend.Visibility = System.Windows.Visibility.Collapsed
                chartToolTip.DefaultView.ChartTitle.Content = "Weekly Sales"
                chartToolTip.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Inside

                tooltip.Content = chartToolTip
            Case 3, 4
                Dim mService As DashboardService.DashboardClient = New DashboardService.DashboardClient()
                AddHandler mService.GetMonthlySalesCompleted, AddressOf webService_GetMonthlySalesCompleted

                mService.GetMonthlySalesAsync(bitMod, intCategoryGroup, intCategory, e.DataPoint.XValue, _
                                          dateFrom, dateTo, timeFrom, timeTo, intTerminal, intSalesPerson)
                chartToolTip.Height = 200
                chartToolTip.Width = 700
                chartToolTip.DefaultView.ChartLegend.Visibility = System.Windows.Visibility.Collapsed
                chartToolTip.DefaultView.ChartTitle.Content = "Monthly Sales"
                chartToolTip.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Inside

                tooltip.Content = chartToolTip
        End Select

    End Sub

    Private Sub webService_GetMonthlySalesCompleted(ByVal sender As ObjectByVal e As DashboardService.GetMonthlySalesCompletedEventArgs) Handles webService.GetMonthlySalesCompleted

        chartToolTip.Height = 200
        chartToolTip.Width = 700
        chartToolTip.DefaultView.ChartLegend.Visibility = System.Windows.Visibility.Collapsed
        chartToolTip.DefaultView.ChartTitle.Content = "Monthly Sales"
        chartToolTip.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Inside

        Dim LineSeries As New DataSeries()
        LineSeries.Definition = New LineSeriesDefinition()
        LineSeries.Definition.ShowItemLabels = False

        For i As Integer = 0 To e.Result.Count - 1
            Dim point As New DataPoint
            point.YValue = e.Result.Item(i).Amount
            point.XCategory = e.Result.Item(i).Period
            LineSeries.Add(point)
        Next

        chartToolTip.DefaultView.ChartArea.DataSeries.Clear()
        chartToolTip.DefaultView.ChartArea.DataSeries.Add(LineSeries)

        'Dim tooltip As New Charting.ItemToolTip2D
        'tooltip.Content = chartToolTip
    End Sub

Thanks

3 Answers, 1 is accepted

Sort by
0
Jim Daly
Top achievements
Rank 1
answered on 18 May 2010, 07:40 PM
One way you could do it is to initially set the Content of your tooltip to an instance of the ActivityControl (or BusyIndicator as it is called in the SL Toolkit), and then set the Content to your RadChart when the data has returned from your service call.
0
Oscar
Top achievements
Rank 1
answered on 06 Apr 2011, 04:34 AM
Hello Telerik team,

Any improvements in 2011Q1 to what Cielo Valdoz is asking

Regards
0
Bartholomeo Rocca
Top achievements
Rank 1
answered on 08 Apr 2011, 10:44 AM
Hello Oscar,

As far as I know there are no built-in improvements in RadChart regarding this scenario but you should still be able to achieve the desired effect with a BusyIndicator as mentioned previously.


Greetings,
Bart.
