Hi:
I am doing my first UI testing. The rendered code can be found in the comments;
public string ValidationError
{
get
{
// <
div
class
=
"validation-summary-errors"
data-valmsg-summary
=
"true"
>
// <
ul
><
li
>The user name or password provided is incorrect.</
li
></
ul
>
// </
div
>
_browser.Manager.ActiveBrowser.AutoDomRefresh = true;
_browser.Manager.ActiveBrowser.RefreshDomTree();
System.Threading.Thread.Sleep(500);
return _browser.Find.ByAttributes<
HtmlDiv
>(_validationErrorsSelector).Find.ByTagIndex("li",0).InnerMarkup;
}
}

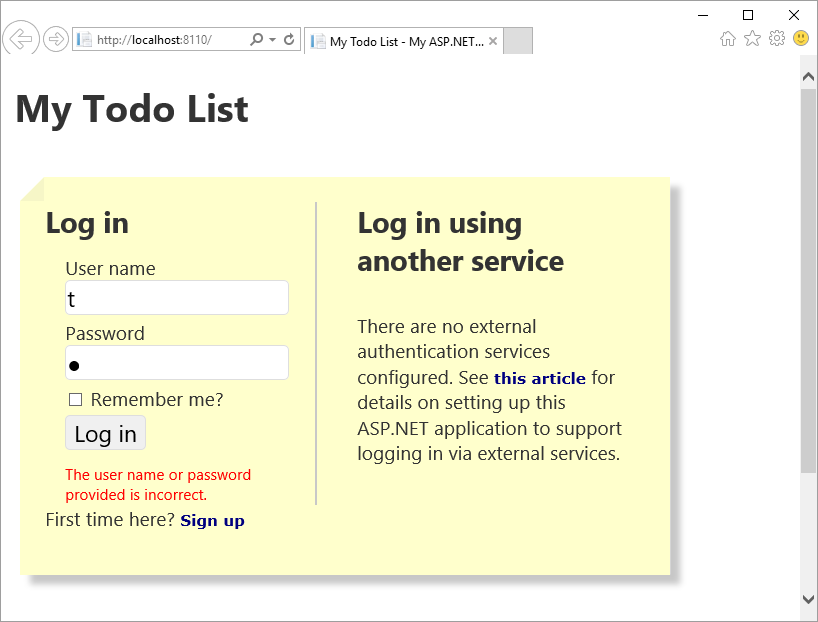

I can see the value on the screen, but what is returned is an empty string. It is finding by attribute OK, but the ActiveBrowser DOM does not seem to be what is rendered.
Phil
6 Answers, 1 is accepted
I have slightly modified your code so it is more simple:
HtmlDiv div = ActiveBrowser.Find.ByAttributes<HtmlDiv>(
"class=validation-summary-errors"
);
HtmlListItem item = div.Find.ByTagIndex<HtmlListItem>(
"li"
, 0);
This will find the first div with class=validation-summary-errors and then find the first li in that div.
Let me know if that helps.
Regards,
Boyan Boev
Telerik by Progress
Test Studio Trainings

Hi Boyan:
I am using a Page Object Model to simplify my UI tests and place all of the dependencies in a class.
My code is finding by attribute OK, but the ActiveBrowser DOM does not contain what is currently being rendered. That is why I am refreshing the DOM tree, but it still does not have what is currently being rendered.
PhilCan you please isolate the problem in a runnable test case you can send our way to replicate locally? That seems to be the best course of action here in order to avoid multiple back and forth messages before we can figure out how to further assist you. You can send any additional and even private data in a support ticket to avoid posting it publicly in the forum if you prefer.
Regards,
Konstantin Petkov
Telerik by Progress
Test Studio Trainings

Hi Konstantin:
The project is easy. This is the standard template ToDo SPA in Visual Studio. I am using VS 2012 Express edition. I do all of my talks with free VS. The test is as follows:
[TestCategory("TestingFramework"), TestMethod]
public void TF_UI_Todo_LoginFailure_Test()
{
Browser _browser = Manager.ActiveBrowser;
string _expected = "The user name or password provided is incorrect.";
Console.WriteLine("*** Login Failure Test ***");
SiteLoginPage _login = new SiteLoginPage(_browser);
_login.UserName = HelperPage.ValidUserName + "X";
_login.Password = "Invalid123@";
TodoPage _todo = _login.SubmitPage();
string _actual = _login.ValidationError;
Assert.AreEqual(_expected, _actual);
}
Login Page Object Model is as follows:
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
System.Threading.Tasks;
using
System.Windows.Forms;
//
using
ArtOfTest.WebAii.Controls.HtmlControls;
using
ArtOfTest.WebAii.Controls.HtmlControls.HtmlAsserts;
using
ArtOfTest.WebAii.Core;
using
ArtOfTest.WebAii.ObjectModel;
using
ArtOfTest.WebAii.TestAttributes;
using
ArtOfTest.WebAii.TestTemplates;
using
ArtOfTest.WebAii.Win32.Dialogs;
//
namespace
UAT_Tests
{
public
class
SiteLoginPage
{
Browser _browser =
null
;
string
_siteUrl = HelperPage.SiteUrl;
string
_userNameField =
"loginName"
;
string
_passwordField =
"Password"
;
string
_loginPanelId =
"loginPanel"
;
string
_submitButtonAttibute =
"type=submit"
;
string
_userSettings = HelperPage.UserSettingsSectionId;
string
_validationErrorsSelector =
"class=validation-summary-valid"
;
//
public
SiteLoginPage(Browser driver)
{
Console.WriteLine(
"*** Logout Script ***"
);
_browser = driver;
_browser.Manager.ActiveBrowser.NavigateTo(_siteUrl);
}
//
public
string
URL
{
get
{
return
_siteUrl; }
}
//
public
string
UserName
{
set
{
Console.WriteLine(
"SendKeys Login Field: "
+ _userNameField);
HtmlInputText loginField = _browser.Find.ById<HtmlInputText>(_userNameField);
loginField.Text = value;
}
}
//
public
string
Password
{
set
{
Console.WriteLine(
"SendKeys Password Field: "
+ _passwordField);
HtmlInputPassword passField = _browser.Find.ById<HtmlInputPassword>(_passwordField);
passField.Text = value;
passField.Focus();
passField.InvokeEvent(ScriptEventType.OnKeyUp);
}
}
//
public
bool
IsSiteLoginPage()
{
HtmlDiv _setting = _browser.Find.ById<HtmlDiv>(_userSettings);
if
(_setting !=
null
)
{
Console.WriteLine(_userSettings +
" text: "
+ _setting.InnerText.Trim());
return
(_setting.InnerText.Trim() ==
""
?
true
:
false
);
}
return
false
;
}
//
public
TodoPage SubmitPage()
{
Console.WriteLine(
"SendKeys Password Field: Enter"
);
HtmlInputSubmit _submit = _browser.Find.ByAttributes<HtmlInputSubmit>(_submitButtonAttibute);
_submit.Click();
System.Threading.Thread.Sleep(500);
return
new
TodoPage(_browser);
}
//
public
string
ValidationError
{
get
{
// <div class="validation-summary-errors" data-valmsg-summary="true">
// <ul><li>The user name or password provided is incorrect.</li></ul>
// </div>
_browser.Manager.ActiveBrowser.AutoDomRefresh =
true
;
_browser.Manager.ActiveBrowser.RefreshDomTree();
System.Threading.Thread.Sleep(500);
Console.WriteLine(
"Get error by: "
+ _validationErrorsSelector);
// _browser.Find.ById<HtmlDiv>(_loginPanelId).Wait.ForAttributes(_validationErrorsSelector);
return
_browser.Find.ByAttributes<HtmlDiv>(_validationErrorsSelector).Find.ByTagIndex(
"li"
,0).InnerMarkup;
}
}
//
public
TodoPage SiteLogin()
{
UserName = HelperPage.ValidUserName;
Password = HelperPage.ValidPassword;
TodoPage _todo = SubmitPage();
return
_todo;
}
}
}
Todo Page Object Model stub:
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
System.Threading.Tasks;
using
System.Windows.Forms;
//
using
ArtOfTest.WebAii.Controls.HtmlControls;
using
ArtOfTest.WebAii.Controls.HtmlControls.HtmlAsserts;
using
ArtOfTest.WebAii.Core;
using
ArtOfTest.WebAii.ObjectModel;
using
ArtOfTest.WebAii.TestAttributes;
using
ArtOfTest.WebAii.TestTemplates;
using
ArtOfTest.WebAii.Win32.Dialogs;
//
namespace
UAT_Tests
{
public
class
TodoPage
{
Browser _browser =
null
;
//
public
TodoPage(Browser manager)
{
_browser = manager;
}
}
}
Static helper class:
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
System.Threading.Tasks;
//
namespace
UAT_Tests
{
public
static
class
HelperPage
{
public
readonly
static
string
SiteUrl =
"http://localhost:20000/"
;
public
readonly
static
string
UserSettingsSectionId =
"userSettings"
;
public
readonly
static
string
ValidUserName =
"TestUser"
;
public
readonly
static
string
ValidPassword =
"Ab.!234@"
;
public
readonly
static
string
TestAddItem =
"X Test Todo item X"
;
}
}
Phil

Hi:
Got it with:
string
_validationErrorsXPath =
"//*[@id='loginForm']/fieldset/div/ul"
;
...
return
_browser.Find.ByXPath<HtmlUnorderedList>(_validationErrorsXPath).Find.ByTagIndex(
"li"
, 0).InnerMarkup;
But I am still missing a large piece of understanding, of why it wasn't working other ways!
Phil
I am happy to hear that everything works now.
In order to say why exactly it doesn't work we will need your project and access to the application so we can debug it.
Thank you for your cooperation.
Regards,
Boyan Boev
Telerik by Progress
Test Studio Trainings
