Erroneous DOM in WebAii for combination of nested table and an (empty) <td /> tag

3 Answers 43 Views

General Discussions

This is a migrated thread and some comments may be shown as answers.

Peter Lenz asked on 14 Jun 2010, 10:35 AM


Hi,
the combination of nested table and an (empty) <td /> tag empty table cell
causes my test fails in IE8 due to a wrongly interpreted DOM.

The source DOM is found in code1 the result after asking Webaii for the DOM ist listed in code2.
The row with the "td3" tag slips out of the outer table of the nested two ones.

This is observed when asking WebAii for parts of or the whole DOM by e.g.
- Find.ByNodeIndexPath("1") --> returns the root element which relates to a wrong XML structure as serialized in code2
- Find.ByNodeIndexPath("1/0/0/1") --> returns NULL when searching for the second row in the outer table.

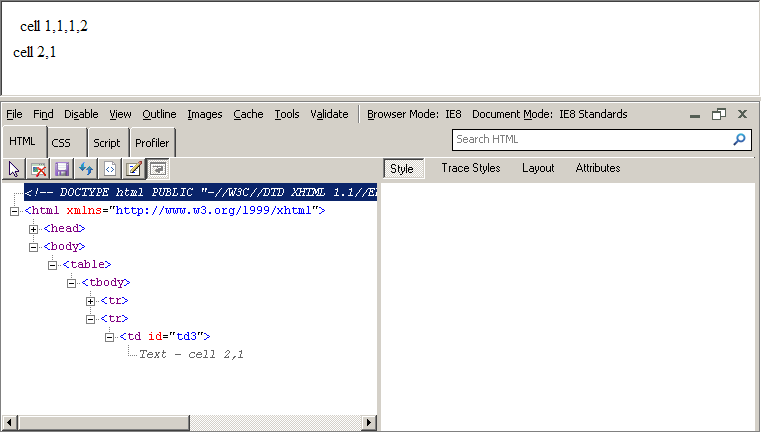

When observing the DOM in IE DEveloper Tools the correct DOM is shown (as seen in the attached screenshot of my IE)!
The same test with FireFox as the defult browsers is sucessfull!

Html code contains an nested table with an empty, self closing td tag (this html code is generated by our WebApplication Framework so I have almost no control over the html generation.

Here the htlm souce (code1):


            <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">

            <html  xmlns="http://www.w3.org/1999/xhtml">

              <head>

                <title>

                  Test

                </title>

              </head>

              <body>

                <table>

                  <tbody>

                    <tr>

                      <td>

                        <table>

                          <tbody>

                            <tr>

                              <td />                <!-- the problem cell -->

                              <td id="td2">cell 1,1,1,2</td>

                            </tr>

                          </tbody>

                        </table>

                      </td>

                    </tr>

                    <tr>

                      <td id="td3">cell 2,1</td>

                    </tr>

                  </tbody>

                </table>

              </body>

            </html>

html code of the DOM structure (serialized) as returned by Find.ByNodeIndexPath("1")


            <body>

                <table>

                    <tbody>

                        <tr>

                            <td>

                                <table>

                                    <tbody></tbody>

                                </table>

                            </td>

                            <tr>

                                <td>

                                    <td id='td2'></td>

                                </td>

                            </tr>

                        </tr>

                    </tbody>

                </table>

                <tr> <!-- ROW slipped out of outer table -->

                    <td id='td3'></td>

                </tr>

            </body>

Thank you for your support -

Peter Lenz

3 Answers, 1 is accepted

answered on 15 Jun 2010, 09:11 AM

Hi Nelson,

you are right, I still can get a special element using an appropiate method.
Unfortunatly in my test I often have to navigate across the DOM using Parent, ChildNodes, GetNextSibling and so on.

For example, if I wantet to get the outer table element started from the cell "td2" I would use code like:


            HtmlTableCell cell = ActiveBrowser.Find.ByExpression<HtmlTableCell>("textcontent=cell 1,1,1,2");

            HtmlTable outerTable = cell.Parent<HtmlTableRow>().Parent<HtmlTable>().Parent<HtmlTableCell>().Parent<HtmlTableRow>().Parent<HtmlTable>();

But this fails because the DOM built by the Framewok does not correspond to the html source in the browser (IE8).

Do you know if this issue is going to be fixed eventually?

Best Greetings
Peter Lenz
