Scrolling a chart takes my labels with it...

2 posts, 0 answers
  1. scott
    scott avatar
    67 posts
    Member since:
    Jul 2010

    Posted 23 Feb 2013 Link to this post

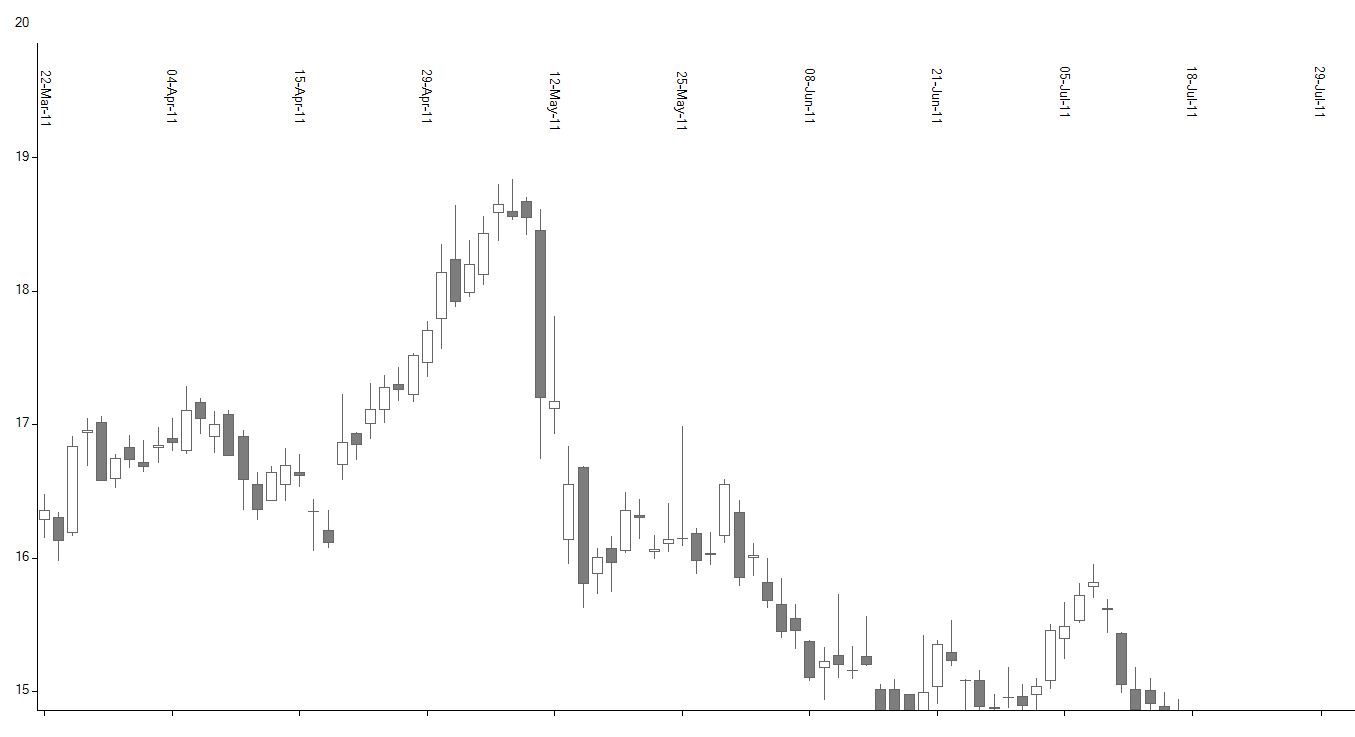

    Hi.  I'm working with the winforms chartview and exploring what it can do.  I've noticed that If I scroll and zoom my chart with control/mouse-wheel and click/drag operations, the labels fly off the X axis and start scrolling with the chart... I've attached a pic and some code.

    Ideas?

    ChartPanZoomController panZoomController = new ChartPanZoomController();
    panZoomController.PanZoomMode = ChartPanZoomMode.Both;
    chart.Controllers.Add(panZoomController);
    private void DrawChart(string ticker)
    {
        chart.Series.Clear();
        chart.ShowPanZoom = true;

        CandlestickSeries series = new CandlestickSeries();
        List<DailyOHLCV> prices = hStocks[ticker];
        foreach (DailyOHLCV dayPrice in prices)
            series.DataPoints.Add(
                new OhlcDataPoint(dayPrice.open, dayPrice.high, dayPrice.low, dayPrice.close, dayPrice.date));

        DateTimeCategoricalAxis axis = new DateTimeCategoricalAxis();
        axis.LabelFormat = "{0:dd-MMM-yy}";
        axis.LabelRotationAngle = 90;
        axis.LabelFitMode = AxisLabelFitMode.Rotate;
        axis.MajorTickInterval = chart.Width / 10;
        series.HorizontalAxis = axis;
        chart.Series.Add(series);
    }
  2. Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 27 Feb 2013 Link to this post

    Hi Scott,

    Thank you for writing.

    I was able to reproduce the issue you are experiencing and have logged it in our Public Issue Tracking System - PITS. You can track the progress of the issue, subscribe for status changes and add your vote/comment to it on the following link - PITS Issue. We will do our best to try and fix this issue for our next release. Unfortunately I am not able to give you a workaround due to the nature of the issue.

    I have also updated your Telerik points for bringing this issue to our attention.

    I hope this helps. Do not hesitate to write back with any further questions.

    All the best,
    Ivan Petrov
    the Telerik team
