Ruler Background Color

5 posts, 0 answers
  1. Jeff
    Jeff avatar
    48 posts
    Member since:
    Apr 2012

    Posted 14 Mar 2013 Link to this post

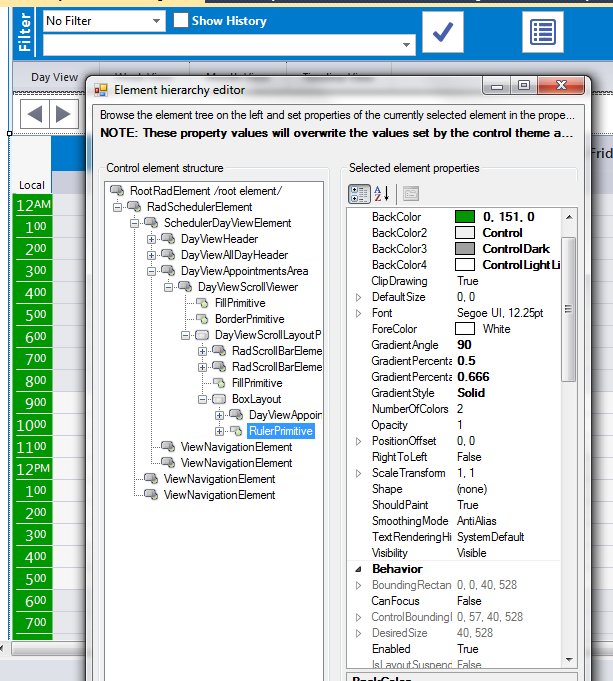

    When I set the ruler background color using the UI Editor, it shows properly in design time but in run time the color is set back the default. I have attached an image showing where I set the color.
  2. Jeff
    Jeff avatar
    48 posts
    Member since:
    Apr 2012

    Posted 16 Mar 2013 Link to this post

    Something is overwriting settings at run time on several of these controls. I was able to solve this, and several other style problems in a similar manner. It would be nice if the settings in design time would carry over into run time.

    This is the code I used to fix the color problem.
    Dim SchedElement As SchedulerDayViewElement = RadScheduler1.SchedulerElement.ViewElement
    SchedElement.DataAreaElement.Ruler.BackColor = Color.FromArgb(0, 151, 0)
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Jeff
    Jeff avatar
    48 posts
    Member since:
    Apr 2012

    Posted 18 Mar 2013 Link to this post

    I still need some help. I found the solution for the DayView but I need the code for WeekView and MonthView.

    My problem would be solved if the changes I made in design time using the UI Editor weren't overwritten. Even using the ControlSpy, when I switch from view to view the settings are overwritten after I change them.
  5. Jeff
    Jeff avatar
    48 posts
    Member since:
    Apr 2012

    Posted 18 Mar 2013 Link to this post

    Well, another hour later and I've found a solution. I'm not sure why the UI Editor settings don't work for these elements, but this code does.
    Only run the code for the specific view, otherwise you get an error. I run the code each time the view is changed.

    I have custom navigation buttons and this is the Sub I run after they are clicked. I set "ActiveNavButton" to the name of the button and perform the steps needed to make it look right. At the end I set focus to the parent panel. This removes the thick border around the button that was clicked.

    Hope this helps anyone who's been dealing with a similar issue.

    Private Sub SetActiveNav()
        ButtonDay.BackColor = Color.FromArgb(0, 159, 60)
        ButtonWeek.BackColor = Color.FromArgb(0, 159, 60)
        ButtonMonth.BackColor = Color.FromArgb(0, 159, 60)
        ButtonTimeline.BackColor = Color.FromArgb(0, 159, 60)
        Select Case ActiveNavButton
            Case "ButtonDay"
                ButtonDay.BackColor = Color.FromArgb(0, 105, 39)
                Dim SchedElement As SchedulerDayViewElement = RadScheduler1.SchedulerElement.ViewElement
                SchedElement.DataAreaElement.Ruler.BackColor = Color.FromArgb(0, 159, 60)
            Case "ButtonWeek"
                ButtonWeek.BackColor = Color.FromArgb(0, 105, 39)
                Dim SchedElement As SchedulerDayViewElement = RadScheduler1.GetWeekView.Scheduler.SchedulerElement.ViewElement
                SchedElement.DataAreaElement.Ruler.BackColor = Color.FromArgb(0, 159, 60)
            Case ("ButtonMonth")
                Dim SchedElement As SchedulerMonthViewElement = RadScheduler1.GetMonthView.Scheduler.SchedulerElement.ViewElement
                For Each Child As RadElement In SchedElement.VerticalHeader.Children
                    Dim Cell As SchedulerHeaderCellElement = TryCast(Child, SchedulerHeaderCellElement)
                    If Cell IsNot Nothing Then
                        Cell.BackColor = Color.FromArgb(0, 159, 60)
                    End If
                Next
                ButtonMonth.BackColor = Color.FromArgb(0, 105, 39)
            Case "ButtonTimeline"
                ButtonTimeline.BackColor = Color.FromArgb(0, 105, 39)
        End Select

        RadPanel2.Focus()
    End Sub

  6. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 19 Mar 2013 Link to this post

    Hi Jeff,

    Thank you for writing.

    As you noticed, when you change the view, the elements in RadScheduler are being recreated and you are loosing your design time settings. Another useful place to use your code would be the ActiveViewChanged event of the control, which is fired when the users changes the view.

    Thank you for sharing you solution.

    Kind regards,
    Stefan
    the Telerik team
