RadLabel and angle

3 posts, 1 answers
  1. QuizzBox
    QuizzBox avatar
    46 posts
    Member since:
    Jan 2011

    Posted 12 Oct 2011 Link to this post

    Hey,
    Is it possible to display a radlabel with a 45° angle ?
    thanks
  2. Answer
    Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 13 Oct 2011 Link to this post

    Hello Nermond,

    Thank you for writing.

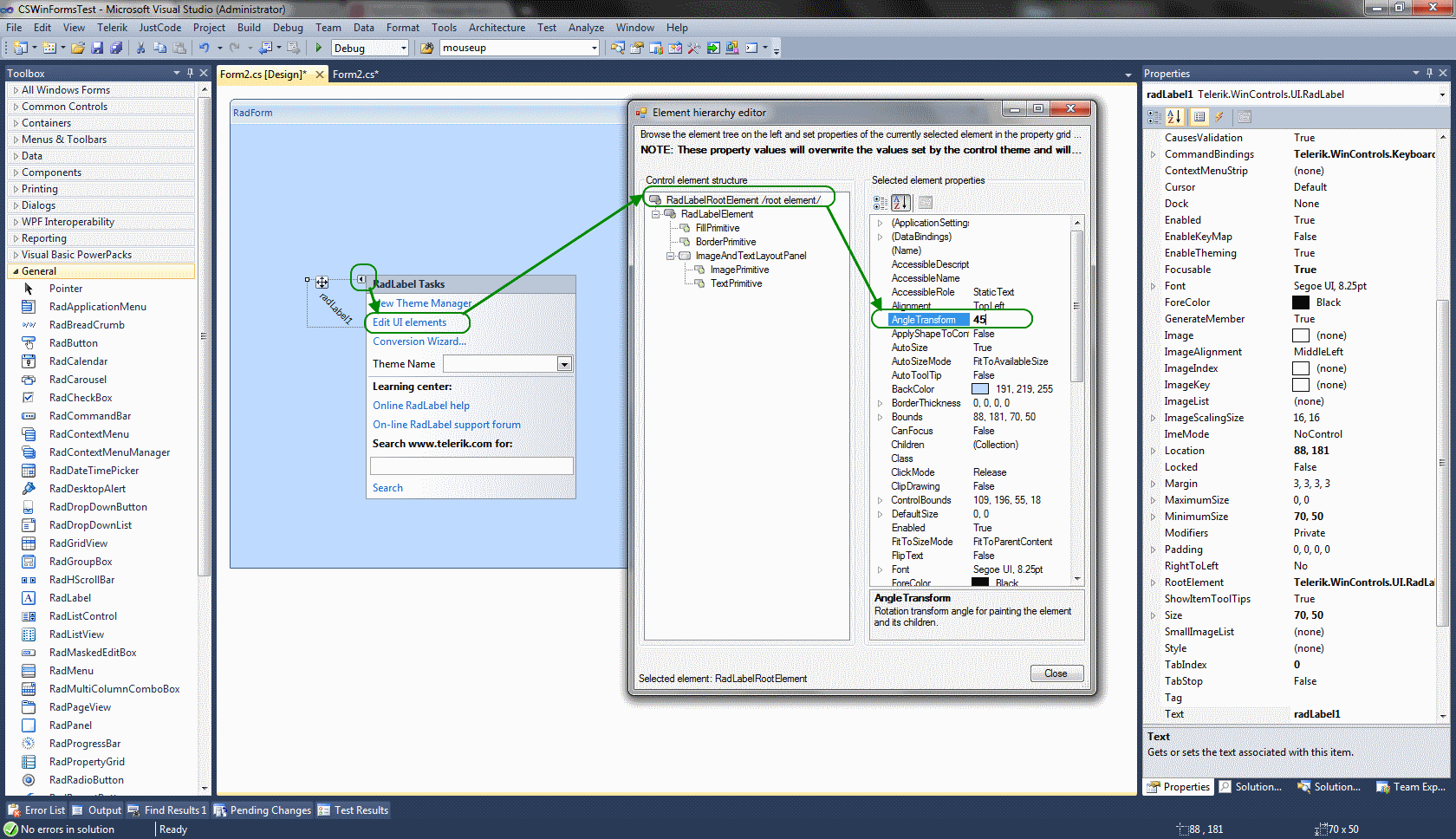

    You can display a RadLabel under a 45° angle by setting an AngleTransform. You have to use the RadLabel smart-tag and select Edit UI Elements and set the property of the top most element. Refer to the attached image to get a visual idea where the property is. Then you have to set a MinimumSize of the label so the whole text can be displayed within the control bounds. And finally you should set the TextAlignment property so the text would be displayed properly when you run the application.

    I hope this will help. If you need further assistance, I would be glad to provide it.

    Best wishes,
    Ivan Petrov
    the Telerik team

    Q2’11 SP1 of RadControls for WinForms is available for download (see what's new); also available is the Q3'11 Roadmap for Telerik Windows Forms controls.

  3. UI for WinForms is Visual Studio 2017 Ready
  4. QuizzBox
    QuizzBox avatar
    46 posts
    Member since:
    Jan 2011

    Posted 14 Oct 2011 Link to this post

    thanks :)
