RadDock Problem while minimizing the form

13 posts, 0 answers
  1. Sandeep
    Sandeep avatar
    2 posts
    Member since:
    Apr 2012

    Posted 24 Apr 2012 Link to this post

    Problem occur while minimizing the parent radDock form.

    i opened the form1 in document window of radDock as a child form. The form1 is little bigger than the radDock document window so i made the  form1 autoScroll properties true. up to this there is no problem, i can scroll the form . when i minimized the parent form i.e. radDock then the error occurred.

    error is like this:

    ArgumentOutOfRangeException was Unhandled

    Value of '-1' is not valid for 'SmallChange'. 'SmallChange' must be greater than or equal to 0.
    Parameter name: SmallChange
  2. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 24 Apr 2012 Link to this post

    Hi Sandeep,

    I've not been able to reproduce this.

    Please can you add the code here (designer and form) using the format code block here that replicates the issue and I'll be happy to take a look at it for you
    Thanks
    Richard
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Sandeep
    Sandeep avatar
    2 posts
    Member since:
    Apr 2012

    Posted 25 Apr 2012 Link to this post

    HI Richard Slade,

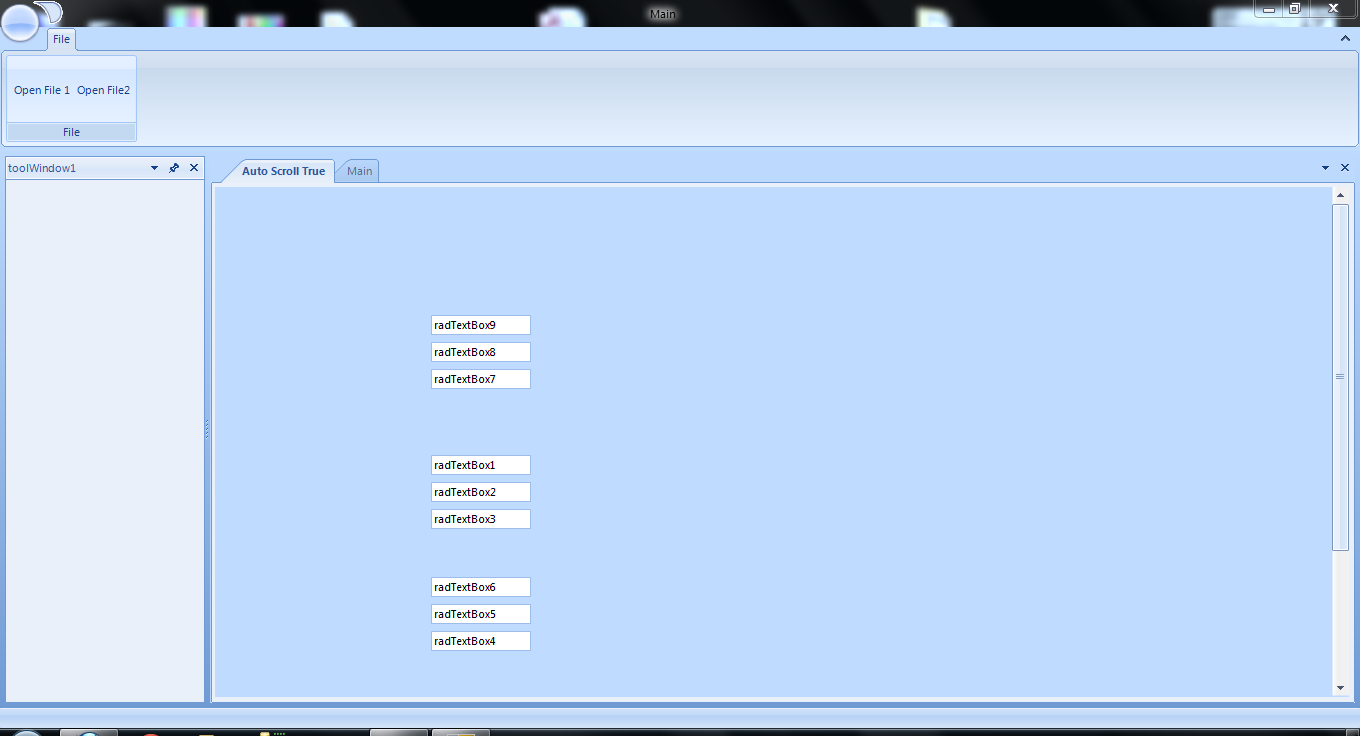

    here is the snap of the main form, i have not done much coding in it, but this will represent my problem.
    Form "Auto Scroll True" will open in the document window when button is clicked as a child form. This form "Auto Scroll True" has a properties AutoScroll = True. If you tried to minimize the Main window then the error occurred.
  5. Julian Benkov
    Admin
    Julian Benkov avatar
    1135 posts

    Posted 26 Apr 2012 Link to this post

    Hello Sandeep,

    Thank you for writing.

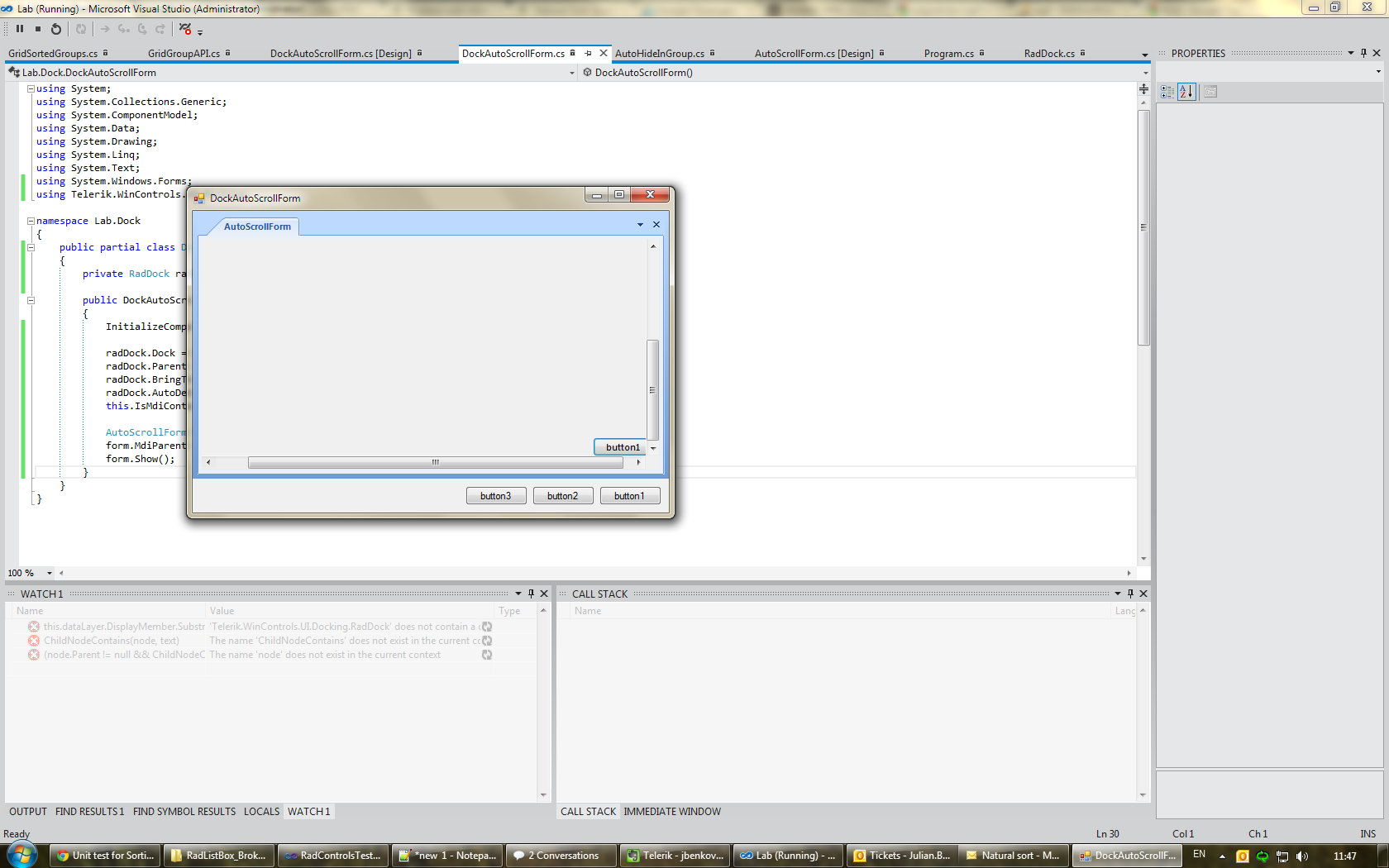

    I made sample application with a DocumentWindow holding a Form with RadDock AutoScroll and I did not find any issues with the minimize / restore window operations. In the attached screen-shot the Form is shown after a restore operation. So, I would kindly ask you to provide us with additional details about your scenario. It will be best if you can open a new support ticket, where you can send us a sample project demonstrating the experienced issue. This will allow us to understand the exact behavior and the circumstances in which it occurs, thus we will be able to provide you with adequate support.

    Thank you for your time and cooperation.

    All the best,
    Julian Benkov
    the Telerik team
    RadControls for WinForms Q1'12 release is now live! Check out what's new or download a free trial >>
  6. Giovanni
    Giovanni avatar
    8 posts
    Member since:
    Apr 2008

    Posted 27 Feb 2015 Link to this post

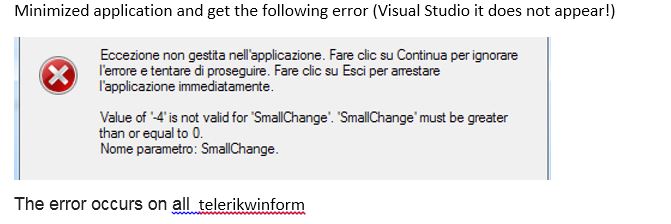

    The error does not appear in Visual Studio, only on exec application:

    Le informazioni su come richiamare il debug JIT (Just-In-Time) anziché questa finestra
    sono riportate in fondo al messaggio.************** Testo dell'eccezione **************
    System.ArgumentOutOfRangeException: Value of '-4' is not valid for 'SmallChange'. 'SmallChange' must be greater than or equal to 0.
    Nome parametro: SmallChange
       in Telerik.WinControls.UI.RadScrollBarElement.set_SmallChange(Int32 value)
       in Telerik.WinControls.UI.RadFormBehavior.SynchronizeHorizontalScrollbarValues()
       in Telerik.WinControls.UI.RadFormBehavior.Form_SizeChanged(Object sender, EventArgs e)
       in System.Windows.Forms.Control.OnSizeChanged(EventArgs e)
       in System.Windows.Forms.Control.UpdateBounds(Int32 x, Int32 y, Int32 width, Int32 height, Int32 clientWidth, Int32 clientHeight)
       in System.Windows.Forms.Control.UpdateBounds()
       in System.Windows.Forms.Control.WmWindowPosChanged(Message& m)
       in System.Windows.Forms.Control.WndProc(Message& m)
       in System.Windows.Forms.ScrollableControl.WndProc(Message& m)
       in System.Windows.Forms.Form.WndProc(Message& m)
       in Telerik.WinControls.UI.RadFormControlBase.WndProc(Message& m)
       in System.Windows.Forms.Control.ControlNativeWindow.OnMessage(Message& m)
       in System.Windows.Forms.Control.ControlNativeWindow.WndProc(Message& m)
       in System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)
    ************** Assembly caricati **************
    mscorlib
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.NET/Framework/v4.0.30319/mscorlib.dll
    ----------------------------------------
    Klondike.Win
        Versione assembly: 1.0.0.0
        Versione Win32: 1.0.0.0
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Klondike.Win.exe
    ----------------------------------------
    Microsoft.VisualBasic
        Versione assembly: 10.0.0.0
        Versione Win32: 12.0.51209.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/Microsoft.VisualBasic/v4.0_10.0.0.0__b03f5f7f11d50a3a/Microsoft.VisualBasic.dll
    ----------------------------------------
    System.Windows.Forms
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms/v4.0_4.0.0.0__b77a5c561934e089/System.Windows.Forms.dll
    ----------------------------------------
    System.Drawing
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Drawing/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll
    ----------------------------------------
    System
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34238 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System/v4.0_4.0.0.0__b77a5c561934e089/System.dll
    ----------------------------------------
    System.Configuration
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Configuration/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll
    ----------------------------------------
    System.Xml
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34234 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
    ----------------------------------------
    System.Runtime.Remoting
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34245 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Runtime.Remoting/v4.0_4.0.0.0__b77a5c561934e089/System.Runtime.Remoting.dll
    ----------------------------------------
    Telerik.WinControls.UI
        Versione assembly: 2010.3.10.1215
        Versione Win32: 2010.3.10.1215
        Base di codice: file:///C:/Windows/assembly/GAC_MSIL/Telerik.WinControls.UI/2010.3.10.1215__5bb2a467cbec794e/Telerik.WinControls.UI.dll
    ----------------------------------------
    Telerik.WinControls
        Versione assembly: 2010.3.10.1215
        Versione Win32: 2010.3.10.1215
        Base di codice: file:///C:/Windows/assembly/GAC_MSIL/Telerik.WinControls/2010.3.10.1215__5bb2a467cbec794e/Telerik.WinControls.dll
    ----------------------------------------
    Klondike.StSiLibreria
        Versione assembly: 1.0.0.0
        Versione Win32: 1.0.0.0
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Klondike.StSiLibreria.DLL
    ----------------------------------------
    TelerikCommon
        Versione assembly: 2010.3.10.1215
        Versione Win32: 2010.3.10.1215
        Base di codice: file:///C:/Windows/assembly/GAC_MSIL/TelerikCommon/2010.3.10.1215__5bb2a467cbec794e/TelerikCommon.dll
    ----------------------------------------
    Microsoft.GeneratedCode
        Versione assembly: 1.0.0.0
        Versione Win32: 4.0.30319.34234 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
    ----------------------------------------
    Telerik.WinControls.Themes.Telerik
        Versione assembly: 2010.3.10.1215
        Versione Win32: 2010.3.10.1215
        Base di codice: file:///C:/Windows/assembly/GAC_MSIL/Telerik.WinControls.Themes.Telerik/2010.3.10.1215__5bb2a467cbec794e/Telerik.WinControls.Themes.Telerik.dll
    ----------------------------------------
    Telerik.WinControls.Themes.Miscellaneous
        Versione assembly: 2010.3.10.1215
        Versione Win32: 2010.3.10.1215
        Base di codice: file:///C:/Windows/assembly/GAC_MSIL/Telerik.WinControls.Themes.Miscellaneous/2010.3.10.1215__5bb2a467cbec794e/Telerik.WinControls.Themes.Miscellaneous.dll
    ----------------------------------------
    Telerik.WinControls.RadDock
        Versione assembly: 2010.3.10.1215
        Versione Win32: 2010.3.10.1215
        Base di codice: file:///C:/Windows/assembly/GAC_MSIL/Telerik.WinControls.RadDock/2010.3.10.1215__5bb2a467cbec794e/Telerik.WinControls.RadDock.dll
    ----------------------------------------
    Klondike.Parameters
        Versione assembly: 1.0.0.0
        Versione Win32: 1.0.0.0
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Klondike.Parameters.DLL
    ----------------------------------------
    Framework.Parameters
        Versione assembly: 3.5.3696.21941
        Versione Win32: 3.5.3696.21941
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Framework.Parameters.DLL
    ----------------------------------------
    Klondike.Business
        Versione assembly: 1.0.0.0
        Versione Win32: 1.0.0.0
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Klondike.Business.DLL
    ----------------------------------------
    Framework.Business
        Versione assembly: 3.5.3696.21942
        Versione Win32: 3.5.3696.21942
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Framework.Business.DLL
    ----------------------------------------
    Framework.DataAccess.SqlClient
        Versione assembly: 3.5.3696.21941
        Versione Win32: 3.5.3696.21941
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Framework.DataAccess.SqlClient.DLL
    ----------------------------------------
    Klondike.Data
        Versione assembly: 1.0.0.0
        Versione Win32: 1.0.0.0
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Klondike.Data.DLL
    ----------------------------------------
    Framework.Data
        Versione assembly: 3.5.3696.21941
        Versione Win32: 3.5.3696.21941
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Framework.Data.DLL
    ----------------------------------------
    System.Data
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_32/System.Data/v4.0_4.0.0.0__b77a5c561934e089/System.Data.dll
    ----------------------------------------
    System.Core
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Core/v4.0_4.0.0.0__b77a5c561934e089/System.Core.dll
    ----------------------------------------
    mscorlib.resources
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.18408 built by: FX451RTMGREL
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/mscorlib.resources/v4.0_4.0.0.0_it_b77a5c561934e089/mscorlib.resources.dll
    ----------------------------------------
    System.Management
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Management/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Management.dll
    ----------------------------------------
    System.Numerics
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Numerics/v4.0_4.0.0.0__b77a5c561934e089/System.Numerics.dll
    ----------------------------------------
    System.Web
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34237 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_32/System.Web/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Web.dll
    ----------------------------------------
    Klondike.DataAccess
        Versione assembly: 1.0.0.0
        Versione Win32: 1.0.0.0
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Klondike.DataAccess.DLL
    ----------------------------------------
    System.Transactions
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_32/System.Transactions/v4.0_4.0.0.0__b77a5c561934e089/System.Transactions.dll
    ----------------------------------------
    System.EnterpriseServices
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_32/System.EnterpriseServices/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.EnterpriseServices.dll
    ----------------------------------------
    Klondike.Core.Data
        Versione assembly: 1.0.0.0
        Versione Win32: 1.0.0.0
        Base di codice: file:///C:/_Net10/Clienti/Klondike/klondikeWin/Klondike.Win/bin/Debug/Klondike.Core.Data.DLL
    ----------------------------------------
    Telerik.WinControls.GridView
        Versione assembly: 2010.3.10.1215
        Versione Win32: 2010.3.10.1215
        Base di codice: file:///C:/Windows/assembly/GAC_MSIL/Telerik.WinControls.GridView/2010.3.10.1215__5bb2a467cbec794e/Telerik.WinControls.GridView.dll
    ----------------------------------------
    Accessibility
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.34209 built by: FX452RTMGDR
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/Accessibility/v4.0_4.0.0.0__b03f5f7f11d50a3a/Accessibility.dll
    ----------------------------------------
    System.Windows.Forms.resources
        Versione assembly: 4.0.0.0
        Versione Win32: 4.0.30319.18408 built by: FX451RTMGREL
        Base di codice: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms.resources/v4.0_4.0.0.0_it_b77a5c561934e089/System.Windows.Forms.resources.dll
    ----------------------------------------
  7. Giovanni
    Giovanni avatar
    8 posts
    Member since:
    Apr 2008

    Posted 27 Feb 2015 in reply to Julian Benkov Link to this post

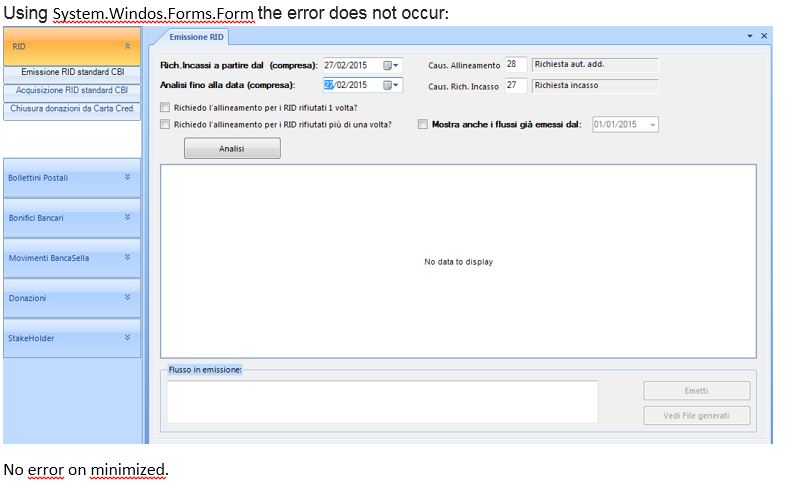

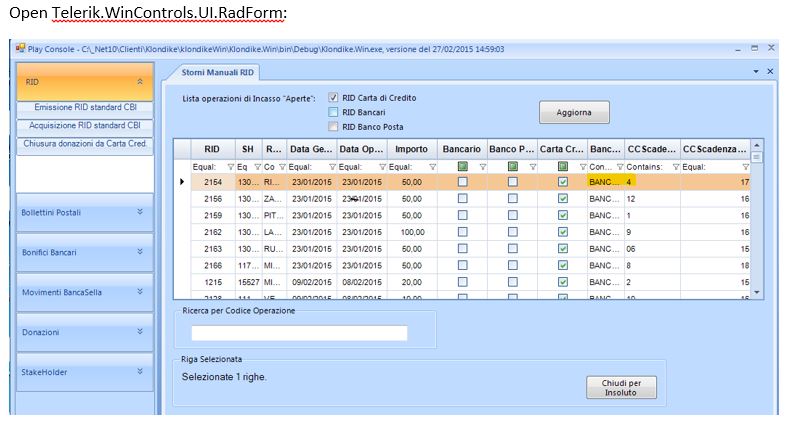

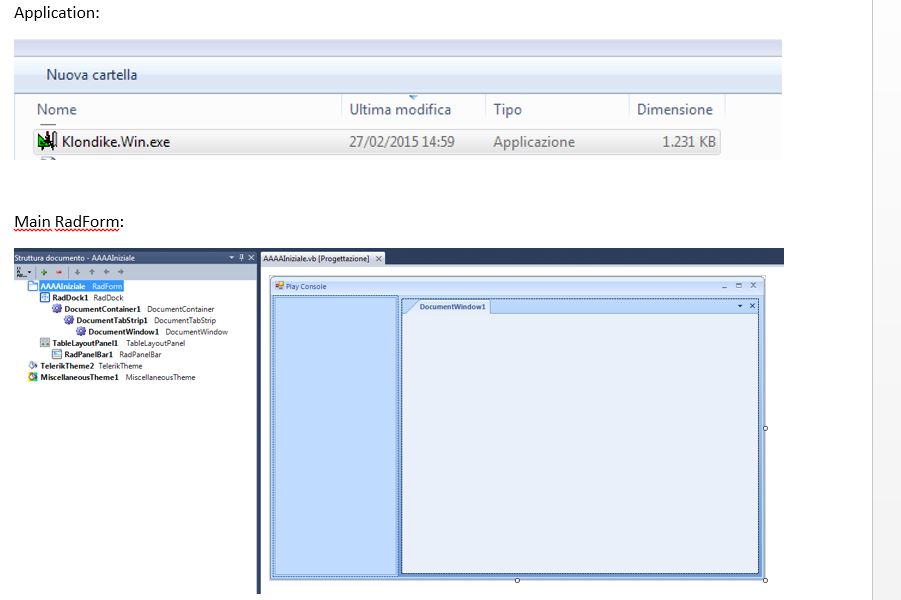

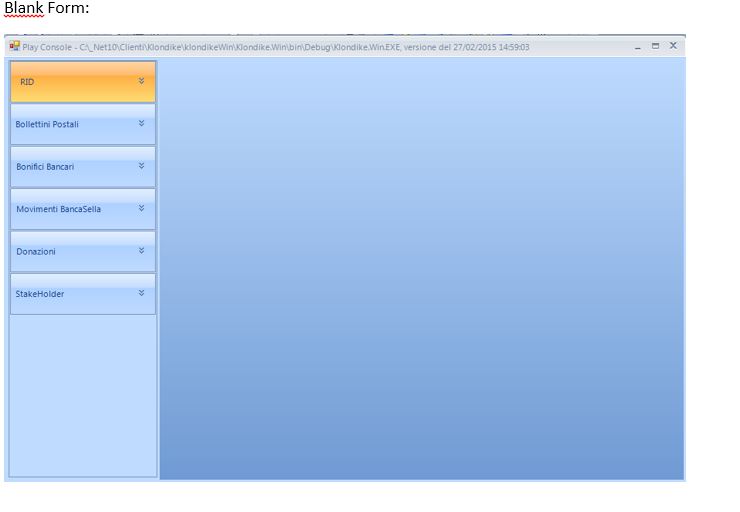

    The error does not occur on Visual Studio but only executing the application (both version debug or release) : see the attach file
  8. Giovanni
    Giovanni avatar
    8 posts
    Member since:
    Apr 2008

    Posted 27 Feb 2015 in reply to Giovanni Link to this post

    After many day(month) i found the solution:

    The property autoscroll=true causes the error.

  9. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 03 Mar 2015 Link to this post

    Hello Giovanni,

    I am not sure how your case is related to the case in this thread? Can you please clarify? If it is, and you still experience issues, please provide more details about the precise case. If it is not related, feel free to open a new thread about the case you have.

    Regards,
    Stefan
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  10. Giovanni
    Giovanni avatar
    8 posts
    Member since:
    Apr 2008

    Posted 04 Mar 2015 in reply to Stefan Link to this post

    Is related: with autoscroll property set = true in raddoc document, when the user minimized the application the error "Value .. is not valid for smallChange " occured.
  11. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 06 Mar 2015 Link to this post

    Hi Giovanni,

    Thank you for getting back to me.

    I have tested two scenarios with our latest version but I was unable to reproduce such behavior.

    Scenario 1:
    - Add dock with a DocumentWindow at design time
    - Set the DocumentWindow AutoScroll property to true
    - Start the app and minimize/restore the form
    - Then I docked the RadDock control to Fill and tried again to minimize/restore the form
    - All worked good

    Scenario 2:
    - Add dock to the form
    - In the code behind, set the form's IsMdiContainer to true and the dock's AutoDetectMdiChildren property to true
    - On a button click add a a RadForm with its AutoScroll property set to true
    - Start the app and minimize/restore the form
    - Then I docked the RadDock control to Fill and tried again to minimize/restore the form
    - All worked good

    Attached you can find a video of my tests (opens in browser).

    May I please ask you for a step by step instruction how to replicate the observed exception. Also, can you clarify which version of the suite you use?

    If it would be more convenient for you, you can send us a sample project (via support ticket as attachments in the forums are not allowed).

    I am looking forward to your reply.

    Regards,
    Stefan
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  12. Giovanni
    Giovanni avatar
    8 posts
    Member since:
    Apr 2008

    Posted 06 Mar 2015 in reply to Stefan Link to this post

    My telerik version is Q3 2010
    I prepared small project with the error when the user minimized the application.

    But my licence has expired and i do not know how send you the project (if you're still interested)

    As written above I have already solved by setting the autoscroll = false

    I repeat that the error only appears when you run the .exe and not in visual studio
  13. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 10 Mar 2015 Link to this post

    Hi Giovanni,

    I am definitely interested in this project - want to make sure this issue is no longer applicable.

    You can either upload it somewhere and provide the link, or you can log in to your account where I added new support ticket for you and you can attach the project in it. The ticket title is "RadDock Problem while minimizing the form"

    I have tested the below scenarios with the exe as well, but to no avail.

    I am looking forward to your sample.

    Regards,
    Stefan
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  14. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 10 Mar 2015 Link to this post

    Thanks to Giovanni, we managed to replicate the issue and I logged it in our portal. To all interested, here is a link: http://feedback.telerik.com/Project/154/Feedback/Details/153117.

    Regards,
    Stefan
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


Back to Top
UI for WinForms is Visual Studio 2017 Ready
