How to put RadChartView inside RadGridView

4 posts, 0 answers
  1. Pedram
    Pedram avatar
    2 posts
    Member since:
    Feb 2015

    Posted 10 Feb 2015 Link to this post

    I have a radChartView and also a radGridView. I want to put Chart View on new row of Grid View. How can I perform this ?
    here is my Chart View sample data code :
    var series = new LineSeries {LegendTitle = "تعداد امانت بر اساس ماه", BorderWidth = 2};
            series.DataPoints.Add(new CategoricalDataPoint(10, "Jan"));
            series.DataPoints.Add(new CategoricalDataPoint(30, "Feb"));
            series.DataPoints.Add(new CategoricalDataPoint(22, "Mar"));
            series.DataPoints.Add(new CategoricalDataPoint(15, "Apr"));
            series.DataPoints.Add(new CategoricalDataPoint(40, "May"));
            series.DataPoints.Add(new CategoricalDataPoint(80, "Jun"));
            series.DataPoints.Add(new CategoricalDataPoint(10, "Jul"));
            series.DataPoints.Add(new CategoricalDataPoint(30, "Aug"));
            series.DataPoints.Add(new CategoricalDataPoint(22, "Sep"));
            series.DataPoints.Add(new CategoricalDataPoint(15, "Oct"));
            series.DataPoints.Add(new CategoricalDataPoint(40, "Nov"));
            series.DataPoints.Add(new CategoricalDataPoint(80, "Dec"));
            this.radChartView1.ShowSmartLabels = true;
            radChartView1.ShowLegend = true;
            this.radChartView1.Series.Add(series);

    I try this code but a row was added without any value :
    this.radGridView1.Rows.Add("Sample", radChartView1);
  2. Dess
    Admin
    Dess avatar
    1605 posts

    Posted 12 Feb 2015 Link to this post

    Hello Pedram,

    Thank you for writing.

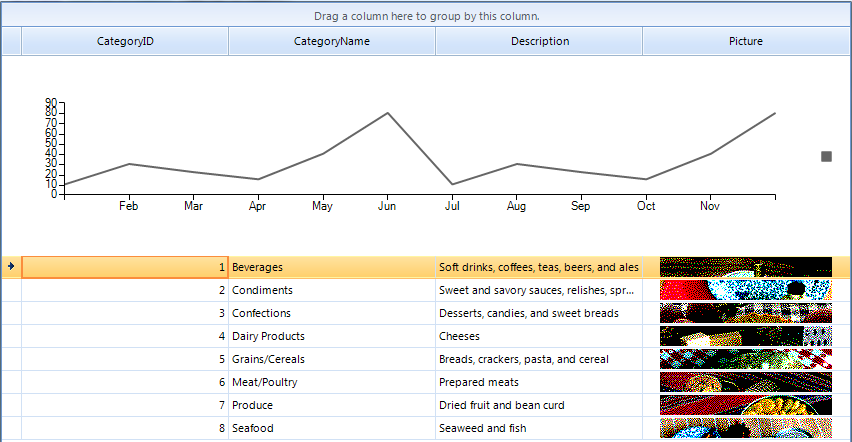

    In order to achieve your goal, you can use a custom GridRowElement. Here is a sample code snippet which result is illustrated on the attached screenshot. It is important to subscribe to the CreateRowInfo event at design time:
    public Form1()
    {
        InitializeComponent();

        this.radGridView1.TableElement.ViewInfo.TableAddNewRow.Height = 200;
        this.radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
        this.radGridView1.DataSource = this.categoriesBindingSource;
    }

    private void radGridView1_CreateRowInfo(object sender, GridViewCreateRowInfoEventArgs e)
    {
        if (e.RowInfo is GridViewNewRowInfo)
        {
            e.RowInfo = new CustomGridViewRowInfo(e.ViewInfo);
        }
    }

    public class CustomGridRowElement : GridRowElement
    {
        private GridCellElement cellElement;
        private RadChartElement radChartElement;

        public CustomGridRowElement()
        {
        }

        protected override void CreateChildElements()
        {
            base.CreateChildElements();
            this.cellElement = new GridCellElement(null, this);
            this.cellElement.StretchHorizontally = true;
            this.cellElement.StretchVertically = true;
            this.Children.Add(cellElement);

            this.radChartElement = new RadChartElement();
            this.radChartElement.View.Series.Clear();
            LineSeries series = new LineSeries();
            series.DataPoints.Add(new CategoricalDataPoint(10, "Jan"));
            series.DataPoints.Add(new CategoricalDataPoint(30, "Feb"));
            series.DataPoints.Add(new CategoricalDataPoint(22, "Mar"));
            series.DataPoints.Add(new CategoricalDataPoint(15, "Apr"));
            series.DataPoints.Add(new CategoricalDataPoint(40, "May"));
            series.DataPoints.Add(new CategoricalDataPoint(80, "Jun"));
            series.DataPoints.Add(new CategoricalDataPoint(10, "Jul"));
            series.DataPoints.Add(new CategoricalDataPoint(30, "Aug"));
            series.DataPoints.Add(new CategoricalDataPoint(22, "Sep"));
            series.DataPoints.Add(new CategoricalDataPoint(15, "Oct"));
            series.DataPoints.Add(new CategoricalDataPoint(40, "Nov"));
            series.DataPoints.Add(new CategoricalDataPoint(80, "Dec"));
            this.radChartElement.View.ShowSmartLabels = true;
            this.radChartElement.ShowLegend = true;
            this.radChartElement.View.Series.Add(series);

            this.cellElement.Children.Add(this.radChartElement);
            this.cellElement.ClipDrawing = true;
        }

        public override bool IsCompatible(GridViewRowInfo data, object context)
        {
            return data is CustomGridViewRowInfo;
        }
    }

    public class CustomGridViewRowInfo : GridViewNewRowInfo
    {
        public CustomGridViewRowInfo(GridViewInfo viewInfo) : base(viewInfo)
        {
        }

        public override Type RowElementType
        {
            get
            {
                return typeof(CustomGridRowElement);
            }
        }
    }

    private void Form1_Load(object sender, EventArgs e)
    {
        this.categoriesTableAdapter.Fill(this.nwindDataSet.Categories);
    }

    I hope this information helps. Should you have further questions, I would be glad to help.

    Regards,
    Dess
    Telerik
