Grouping problem, empty value and no correctly grouping done

5 posts, 1 answers
  1. FMorales
    FMorales avatar
    26 posts
    Member since:
    Aug 2014

    Posted 29 Oct 2014 Link to this post

    Hi,

    I am having a problem with grouping feature, if a try to group by a column, the grid perform the grouping but it does not group rows with same colum value, so, it creates a gruping row for each row in the group with the same value in the grouping column.

    Additionaly, no value of the grouping is shown in the grouping row, it shows "Column_name: " and nothing behing ":"

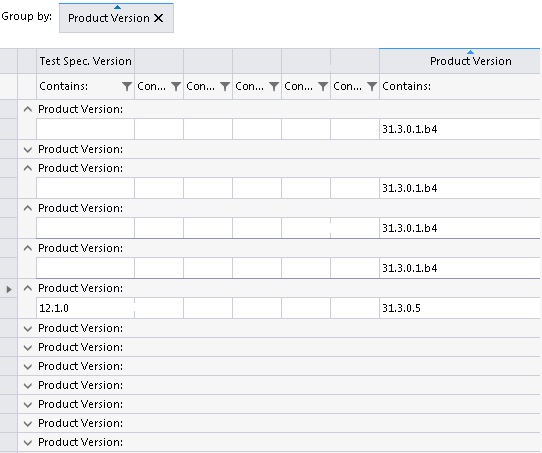

    I have upload a picture where I am trying to group by "Product Version", but grid do not agrupate for example the values "31.3.0.1.b4" as same value, I have try with other columns and other values and I have always same result.

    any help would be very appreciated.

    Thanks
  2. FMorales
    FMorales avatar
    26 posts
    Member since:
    Aug 2014

    Posted 30 Oct 2014 Link to this post

    I can not get it work, I will try to give more data about my scenary.

    Control is a "DragAndDropRadGrid" acording to the example to get Drag and Drop functionality:


    Designer:
    // RadGridBrowser
    //
    this.RadGridBrowser.ColumnChooserSortOrder = Telerik.WinControls.UI.RadSortOrder.Ascending;
    this.RadGridBrowser.EnableCustomGrouping = true;
    this.RadGridBrowser.EnableHotTracking = false;
    this.RadGridBrowser.Location = new System.Drawing.Point(0, 0);
    //
    // RadGridBrowser
    //
    this.RadGridBrowser.MasterTemplate.AllowAddNewRow = false;
    this.RadGridBrowser.MasterTemplate.AllowDeleteRow = false;
    this.RadGridBrowser.MasterTemplate.AllowEditRow = false;
    this.RadGridBrowser.MasterTemplate.AllowRowReorder = true;
    this.RadGridBrowser.MasterTemplate.ClipboardCopyMode = Telerik.WinControls.UI.GridViewClipboardCopyMode.Disable;
    this.RadGridBrowser.MasterTemplate.ClipboardPasteMode = Telerik.WinControls.UI.GridViewClipboardPasteMode.Disable;
    this.RadGridBrowser.MasterTemplate.EnableCustomGrouping = true;
    this.RadGridBrowser.MasterTemplate.EnableFiltering = true;
    this.RadGridBrowser.MasterTemplate.MultiSelect = true;
    this.RadGridBrowser.MasterTemplate.ShowGroupedColumns = true;
    this.RadGridBrowser.Name = "RadGridBrowser";
    this.RadGridBrowser.ReadOnly = true;
    this.RadGridBrowser.Size = new System.Drawing.Size(554, 194);
    this.RadGridBrowser.TabIndex = 5;
    this.RadGridBrowser.Text = "dragAndDropRadGrid1";
    this.RadGridBrowser.ThemeName = "VisualStudio2012Light";
    this.RadGridBrowser.CellDoubleClick += new Telerik.WinControls.UI.GridViewCellEventHandler(this.RadGridBrowser_CellDoubleClick);
    this.RadGridBrowser.ContextMenuOpening += new Telerik.WinControls.UI.ContextMenuOpeningEventHandler(this.RadGridBrowser_ContextMenuOpening);
    this.RadGridBrowser.Click += new System.EventHandler(this.RadGridBrowser_Click);


    Form:

    public DragAndDropRadGrid()
            {
                ThemeResolutionService.ApplicationThemeName = "VisualStudio2012Light";
                this.ThemeName = "VisualStudio2012Light";
                this.MultiSelect = true;
                this.EnableSorting = true;
                this.EnableCustomSorting = false;
                this.DisableRadDragDropService = false;

                //handle drag and drop events for the grid through the DragDrop service
                this.svc =
                        this.GridViewElement.GetService<RadDragDropService>();
                this.svc.PreviewDragStart += svc_PreviewDragStart;
                this.svc.PreviewDragDrop += svc_PreviewDragDrop;
                this.svc.PreviewDragOver += svc_PreviewDragOver;

                //register the custom row selection behavior
                var gridBehavior = this.GridBehavior as BaseGridBehavior;
                gridBehavior.UnregisterBehavior(typeof(GridViewDataRowInfo));
                gridBehavior.RegisterBehavior(typeof(GridViewDataRowInfo), new RowSelectionGridBehavior());
            }

    Any idea why grouping does not work properly?

  3. UI for WinForms is Visual Studio 2017 Ready
  4. Mikhail
    Mikhail avatar
    4 posts
    Member since:
    Dec 2013

    Posted 30 Oct 2014 Link to this post

    I have the same problem.
    It looks like  grouping field comparator is not working properly.
    In my case i am using generic list of poco objects as DataSource.
  5. FMorales
    FMorales avatar
    26 posts
    Member since:
    Aug 2014

    Posted 30 Oct 2014 in reply to Mikhail Link to this post

    HI Mikhail,

    I have solved my problem.


    1.- I have comment in the designer.cs file all field related with properties of the grid (make a copy)
    2.- After do that, designer automaticatly regeneratethe default properties values for the grid
    3.- The grouping now works.

    //this.RadGridBrowser.ColumnChooserSortOrder = Telerik.WinControls.UI.RadSortOrder.Ascending;
    //this.RadGridBrowser.EnableCustomGrouping = true;
    //this.RadGridBrowser.EnableHotTracking = false;
    //this.RadGridBrowser.Location = new System.Drawing.Point(0, 0);
    //
    // RadGridBrowser
    //
    //this.RadGridBrowser.MasterTemplate.AllowAddNewRow = false;
    //this.RadGridBrowser.MasterTemplate.AllowDeleteRow = false;
    //this.RadGridBrowser.MasterTemplate.AllowEditRow = false;
    //this.RadGridBrowser.MasterTemplate.AllowRowReorder = true;
    //this.RadGridBrowser.MasterTemplate.ClipboardCopyMode = //Telerik.WinControls.UI.GridViewClipboardCopyMode.Disable;
    //this.RadGridBrowser.MasterTemplate.ClipboardPasteMode = //Telerik.WinControls.UI.GridViewClipboardPasteMode.Disable;
    //this.RadGridBrowser.MasterTemplate.EnableCustomGrouping = true;
    //this.RadGridBrowser.MasterTemplate.EnableFiltering = true;
    //this.RadGridBrowser.MasterTemplate.MultiSelect = true;
    //this.RadGridBrowser.MasterTemplate.ShowGroupedColumns = true;
    //this.RadGridBrowser.Name = "RadGridBrowser";
    //this.RadGridBrowser.ReadOnly = true;
    //this.RadGridBrowser.Size = new System.Drawing.Size(554, 194);
    //this.RadGridBrowser.TabIndex = 5;
    //this.RadGridBrowser.Text = "dragAndDropRadGrid1";
    //this.RadGridBrowser.ThemeName = "VisualStudio2012Light";
    //this.RadGridBrowser.CellDoubleClick += new //Telerik.WinControls.UI.GridViewCellEventHandler(this.RadGridBrowser_CellDoubleClick);
    //this.RadGridBrowser.ContextMenuOpening += new //Telerik.WinControls.UI.ContextMenuOpeningEventHandler(this.RadGridBrowser_ContextMenuOpening);
    //this.RadGridBrowser.Click += new System.EventHandler(this.RadGridBrowser_Click);

  6. Answer
    George
    Admin
    George avatar
    500 posts

    Posted 03 Nov 2014 Link to this post

    Hello Francisco,

    Thank you for writing.

    As far as I can see you have set the EnableCustomGrouping property of RadGridView. Without handling the custom grouping events RadGridView does not know how to compare each value, that is why you get such results. You can read more about Custom Grouping here. As far as I can see, you do not need it, so leaving it to its default value - false, should be sufficient for this scenario.

    I hope this helps.

    Regards,
    George
    Telerik
