XAxis.AxisLabel don't appear and instead a serie item name, appear only numbers.

7 posts, 0 answers
  1. Lourival de Souza Junior
    Lourival de Souza Junior avatar
    2 posts
    Member since:
    Feb 2010

    Posted 14 Aug 2010 Link to this post

    Hi,

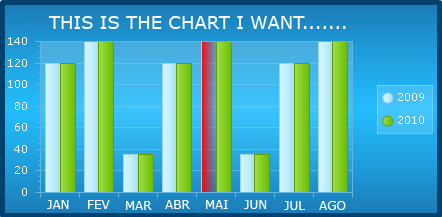

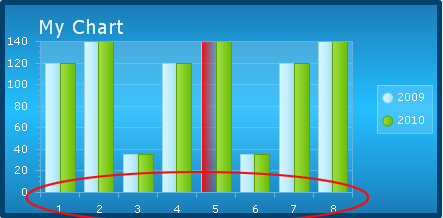

    i'm trying to create a SIMPLE CHART that shows a title, legend, XAxis.AxisLabel and a XAxis itens label.   XAxis.AxisLabel don't appear and instead a serie item name, appear only numbers. See attachments. What's wrong with the code below? Tks. Lourival.

    RadChart1.Series.Clear()
    RadChart1.ChartTitle.TextBlock.Text = "My Chart"
    Dim chartSeries As ChartSeries = RadChart1.CreateSeries("2009", System.Drawing.Color.RoyalBlue, System.Drawing.Color.LightSteelBlue, ChartSeriesType.Bar)
    chartSeries.AddItem(120, "")
    chartSeries.AddItem(140, "")
    chartSeries.AddItem(35, "")
    chartSeries.AddItem(120, "")
    chartSeries.AddItem(140, "", System.Drawing.Color.Red)
    chartSeries.AddItem(35, "")
    chartSeries.AddItem(120, "")
    chartSeries.AddItem(140, "")
    RadChart1.Series.Add(chartSeries)
    chartSeries.Appearance.LabelAppearance.Visible = False
    Dim chartSeries2 As ChartSeries = RadChart1.CreateSeries("2010", System.Drawing.Color.DarkBlue, System.Drawing.Color.LightBlue, ChartSeriesType.Bar)
    chartSeries2.AddItem(120, "")
    chartSeries2.AddItem(140, "")
    chartSeries2.AddItem(35, "")
    chartSeries2.AddItem(120, "")
    chartSeries2.AddItem(140, "")
    chartSeries2.AddItem(35, "")
    chartSeries2.AddItem(120, "")
    chartSeries2.AddItem(140, "")
    RadChart1.Series.Add(chartSeries)
    chartSeries2.Appearance.LabelAppearance.Visible = False
    RadChart1.PlotArea.XAxis.AxisLabel.TextBlock.Text = "Months"
    RadChart1.PlotArea.XAxis.AxisLabel.TextBlock.Appearance.TextProperties.Color = System.Drawing.Color.Red
    RadChart1.PlotArea.XAxis.AddRange(1, 8, 1)
    RadChart1.PlotArea.XAxis(0).TextBlock.Text = "Jan"
    RadChart1.PlotArea.XAxis(1).TextBlock.Text = "Fev"
    RadChart1.PlotArea.XAxis(2).TextBlock.Text = "Mar"
    RadChart1.PlotArea.XAxis(3).TextBlock.Text = "Abr"
    RadChart1.PlotArea.XAxis(4).TextBlock.Text = "Mai"
    RadChart1.PlotArea.XAxis(5).TextBlock.Text = "Jun"
    RadChart1.PlotArea.XAxis(6).TextBlock.Text = "Jul"
    RadChart1.PlotArea.XAxis(7).TextBlock.Text = "Ago"
    RadChart1.DataBind()

  2. Ves
    Admin
    Ves avatar
    2879 posts

    Posted 18 Aug 2010 Link to this post

    Hi Lourival de Souza Junior,

    You need to set the AutoScale property of XAxis before calling AddRange. Omitting this the chart actaully ignores your subsequent settings. So, please add this line before the call to XAxis.AddRange:

    RadChart1.PlotArea.XAxis.AutoScale = false;

    Sincerely,
    Ves
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Andreas Nebel
    Andreas Nebel avatar
    16 posts
    Member since:
    Jan 2010

    Posted 30 Aug 2010 Link to this post

    Same here, setting AutoScale = false, don't shows the AxisLabel or the ItemNames.

    Andy
  5. Phillip Foster
    Phillip Foster avatar
    58 posts
    Member since:
    Apr 2010

    Posted 30 Aug 2010 Link to this post

    I'm also not getting this to work properly. I'm able to get the labels to change with the following code, but it only shows half the chart. There should be 24 intervals, but i'm only showing 13 or so. Any info would help.

    private void GetVolume()
     {
                rcVolume.Series.Clear();
                DateTime dtCurrent = calTrackedStart.SelectedDate;
                DataTable dtVolume = new DataTable();

                ChartSeries series = new ChartSeries("Category", ChartSeriesType.Bar, rcCBSummary.Series);
                while (dtCurrent <= calTrackedEnd.SelectedDate)
                 {

                    dtVolume = webservice.GetAvayaArrivalPattern(dtCurrent);

                    if (dtVolume.Rows.Count > 0)
                    {
                        series = new ChartSeries(Convert.ToDateTime(dtVolume.Rows[0].ItemArray[0]).ToShortDateString(), ChartSeriesType.Line, rcCBSummary.Series);
                        for (int i = 0; i < dtVolume.Rows.Count; i++)
                            series.Items.Add(new ChartSeriesItem(Convert.ToInt16(dtVolume.Rows[i].ItemArray[2])));

                        rcVolume.Series.Add(series);
                        rcVolume.Refresh();
                    }

                    dtCurrent = dtCurrent.AddDays(1);
                }

                rcVolume.PlotArea.XAxis.Clear();
                rcVolume.PlotArea.XAxis.AutoScale = false;

                string intrvl = "0000";
                rcVolume.PlotArea.XAxis.AddRange(1, 24, 1);
                for (int k = 0; k < 24; k++)
                {
                    intrvl = dtVolume.Rows[k].ItemArray[1].ToString();
                    if (intrvl.Length < 4)
                        intrvl = "0" + intrvl;

                    rcVolume.PlotArea.XAxis[k].TextBlock.Text = intrvl;
                }
                rcVolume.Refresh();
    }
  6. Ves
    Admin
    Ves avatar
    2879 posts

    Posted 01 Sep 2010 Link to this post

    Hi Phillip Foster,

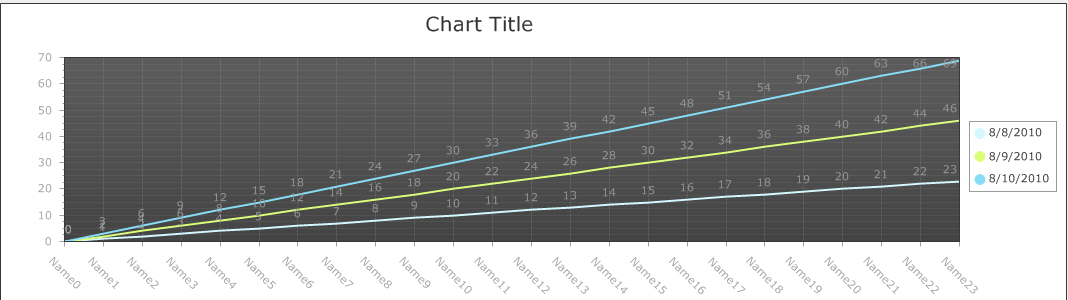

    I copied your code, filled the chart with fake data and it seems to work fine for me. Please, find attached my example along with the resulting chart.

    Regards,
    Ves
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  7. Eduan Marais
    Eduan Marais avatar
    18 posts
    Member since:
    Feb 2010

    Posted 19 Jan 2011 Link to this post

    Hi.

    I have a simular problem.
    I populate a dataset based on the graph that I want to display. The dataset returns with a table that has 2 fields - the date, and a value
    The value displays correctly, but the XAxis is displaying the number instead of the date.
    If I set the AutoScale to true, all the data is not displayed in the plot area.

    This is my code.

    groupboxGraph.Text = "Test Graph";
    data = new dsData();
    data = ReadGraphData(TestGraph);
    radChartSiloGraph.DataSource = data.tblData;
    radChartSiloGraph.DataBind();
    radChartSiloGraph.ChartTitle.TextBlock.Text = "Test Graph";
    radChartSiloGraph.DefaultType = ChartSeriesType.SplineArea;
    radChartSiloGraph.Series[0].Appearance.FillStyle.MainColor = Color.Fuchsia;
    radChartSiloGraph.Series[0].Appearance.TextAppearance.TextProperties.Color = Color.White;
    radChartSiloGraph.PlotArea.YAxis.AxisMode = ChartYAxisMode.Extended;

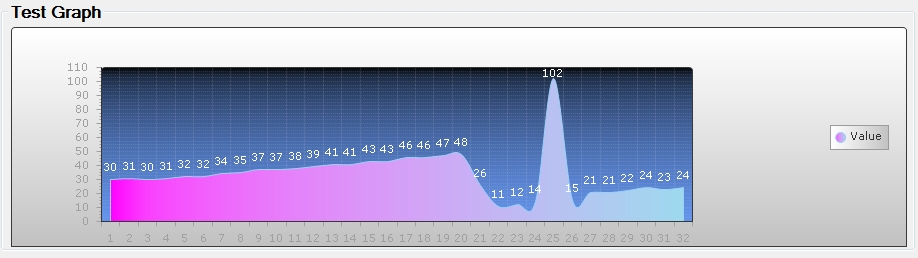

    Also see attached screenshot of incorrect graph.

    Thanks

    Eduan













  8. Ves
    Admin
    Ves avatar
    2879 posts

    Posted 24 Jan 2011 Link to this post

    Hi Eduan,

    In order to databind RadChart with DateTime values you need to ensure that several conditions are met:

    • Make sure the data sent to chart contains the OLEAutomation equivalent of DateTime. It is a double, obtained through the ToOADate() method of DateTime.
    • Create a ChartSeries object, set its DataYColumn property with the name of the column, holding the values and set its DataXColumn property with the name of the column, holding the dates (the one with the double values, discussed in the above bullet). Then add this ChartSeries to radChart1.Series collection.
    • Set appropriate format for the X axis labels: radChart1.PlotArea.XAxis.Appearance.ValueFormat = Telerik.Charting.Styles.ChartValueFormat.ShortDate; In addition, you may want to set the radChart1.PlotArea.XAxis.Appearance.CustomFormat property in order to specify another DateTime formatting string.
    • Set radChart1.PlotArea.XAxis.IsZeroBased property to false, so that the axis range is calculated to focus on the data. This is needed as OLEAutomation date represents the number of days since 12/30/1899 and you do not need to cover all the period, but only the period where your data lies.
    • Finally, you can check this forum thread for an example of a sql query, which will convert the DateTime values to their OLE automation equivalents.

    Best regards,
    Ves
    the Telerik team
    Q3’10 SP1 of RadControls for WinForms is available for download; also available is the Q1'11 Roadmap for Telerik Windows Forms controls.
