Tiles separation in Panorama

2 posts, 0 answers
  1. Alfonso
    Alfonso avatar
    3 posts
    Member since:
    Aug 2013

    Posted 09 Aug 2013 Link to this post

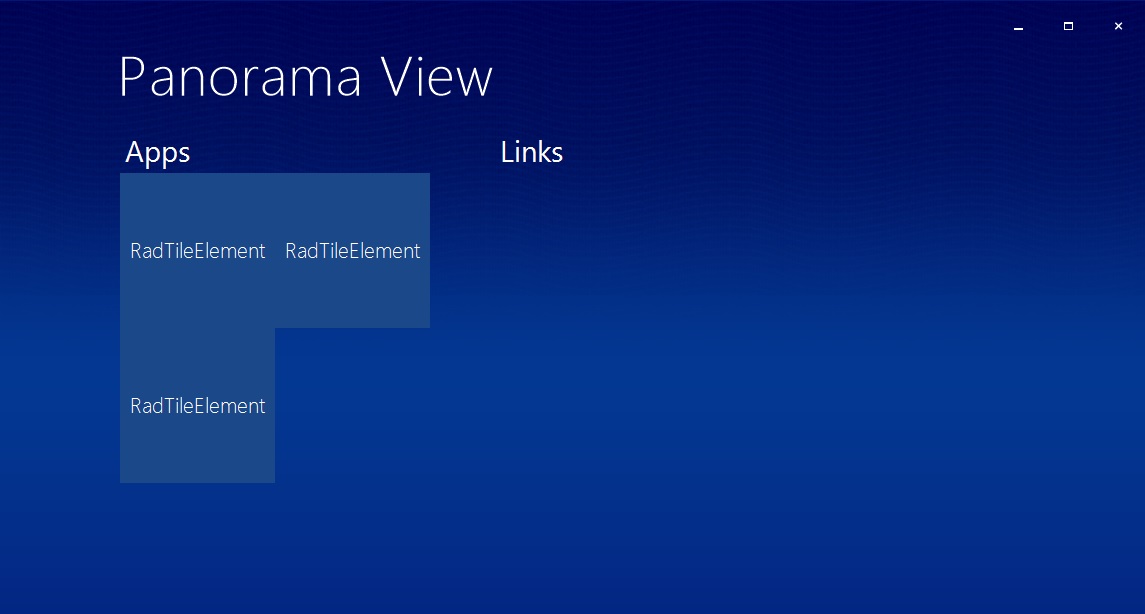

    hi, i'm new at this and i'm trying follow the demoHub app to learn more of this control. My problem is when i apply the PanoramaDemo tssp to may app, the tiles get together and i can´t see any separation between them, no matter the tile silze i set to the tile group. Am i doing something grong?

    thanks in advance
  2. Dimitar
    Admin
    Dimitar avatar
    1404 posts

    Posted 14 Aug 2013 Link to this post

    Hi Alfonso,

    Thank you for writing.

    First I want to mention that the PanoramaDemo theme is not created to be used outside of the DemoAppsHub, I want to recommend you to use one of our predefined themes. However if you want to use this particular theme you have to take the following steps to achieve the desired style:
    • Open the theme in Visual Style Builder.
    • Expand the RadPanorama  up to RadTileElement.
    • In the elements window expand RadTileElement (make sure no-filter is selected)
    • Find the CellPadding property and set it to a desired value.

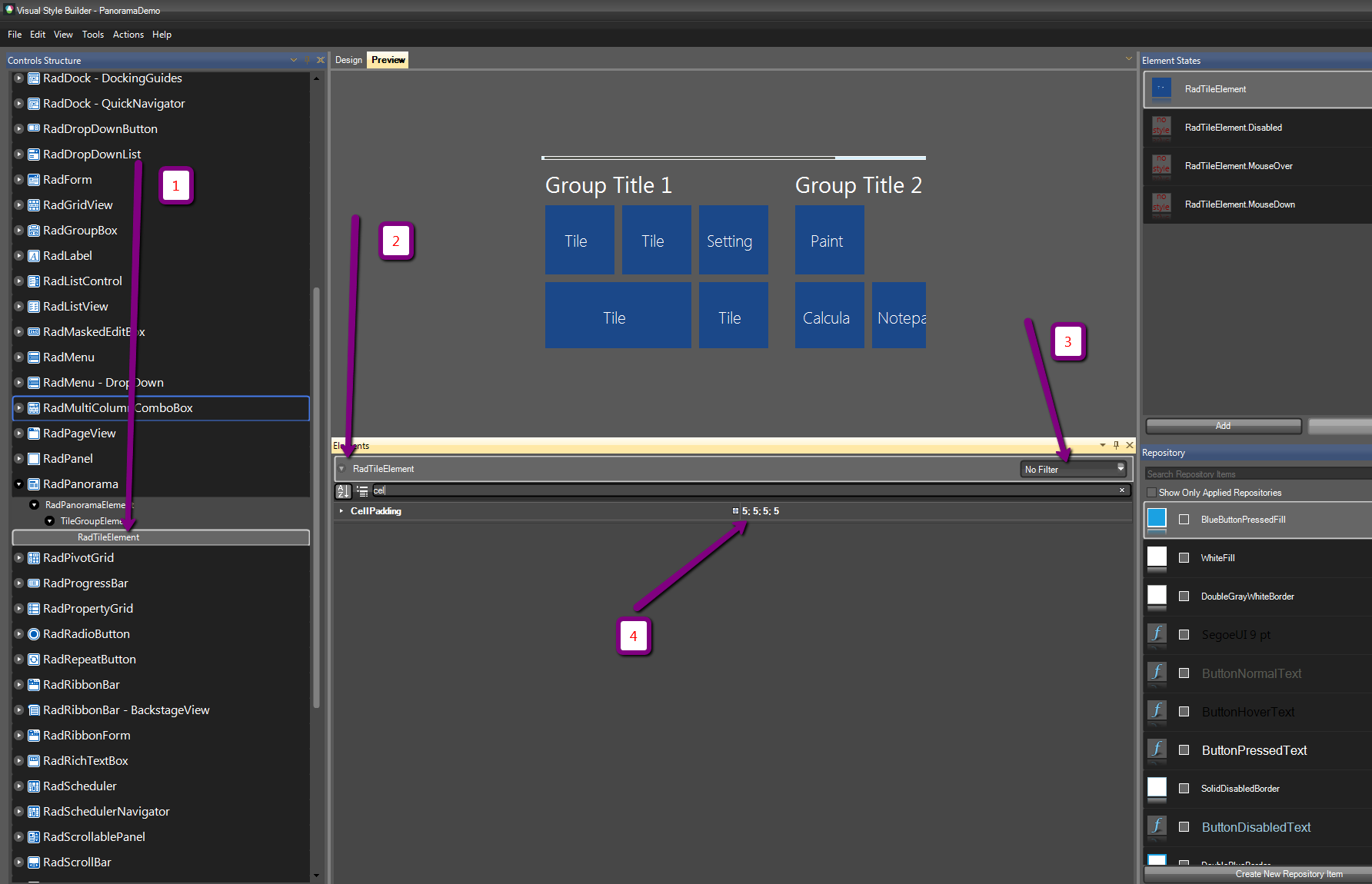

    I have attached a picture that is illustrating the steps and the modified PanoramaDemo theme.

    I hope this helps. Should you have any other questions do not hesitate to ask.

    Regards,
    Dimitar
