summation of chart data table

2 posts, 0 answers
  1. matthew
    matthew avatar
    2 posts
    Member since:
    Aug 2014

    Posted 05 Aug 2014 Link to this post

    Hi all

    I have three questions:

    First :I use telerik chart to create a chart for my
    application. I want to insert column and row sum of chart data table below the

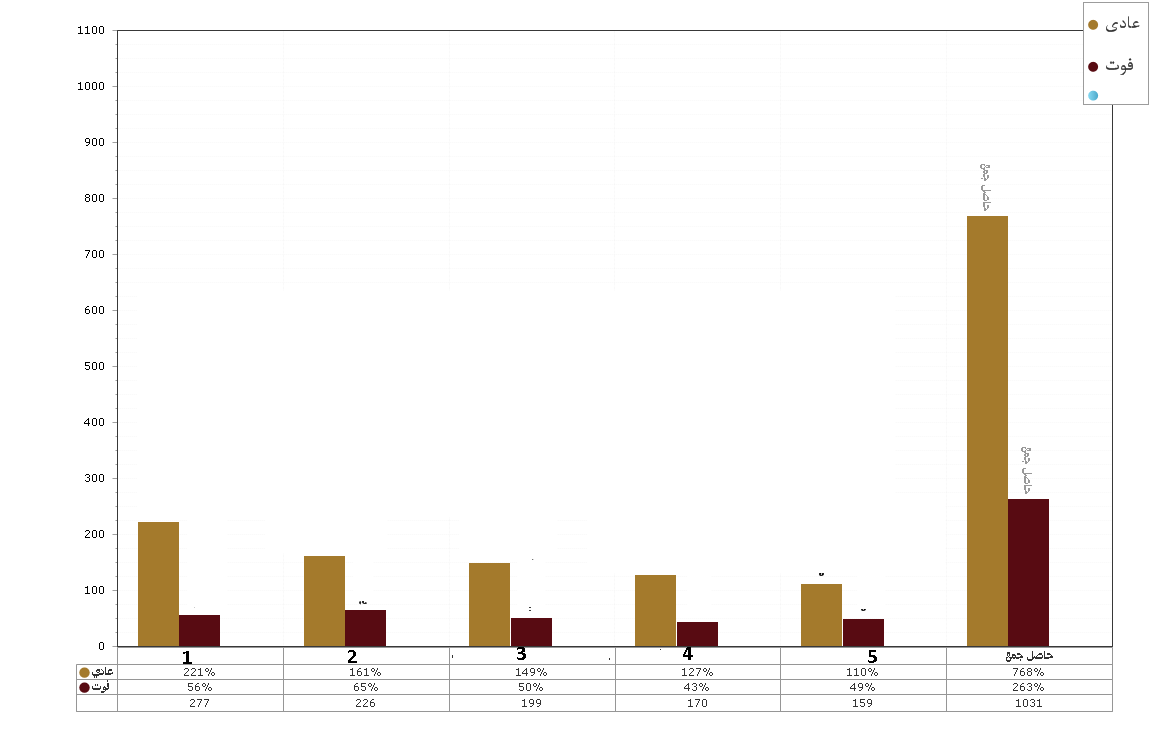

    chart (the same as last column and row in attached image).I do it manually. Is
    it possible to do it automatically?

    Second:As you can see in the attached image, The last column
    is the total sum of row.Is it possible that the last column shows just the
    value not bar chart?



    Third:is it possible to remove colored bullet  of total last row  from legend?
  2. Dess
    Admin
    Dess avatar
    1601 posts

    Posted 07 Aug 2014 Link to this post

    Hello Matthew,

    Thank you for writing.

    I am not sure how exactly you populate RadChartView with data, however please find below a sample code snippet demonstrating how to achieve similar look as the one in the screenshot. There is one horizontal RadSplitContainer with two panels, one for the RadGridView and one for the RadChartView. You can populate the RadChartView with the same data as the RadGridView. Additionally, add summary items to summarize the column values and add a calculated column to summarize the row values.
    public Form1()
    {
        InitializeComponent();

        BarSeries barSeries = new BarSeries("Performance", "RepresentativeName");
        barSeries.Name = "Q1";
        barSeries.LegendTitle = "Q1";
        barSeries.DataPoints.Add(new CategoricalDataPoint(221, "1"));
        barSeries.DataPoints.Add(new CategoricalDataPoint(161, "2"));
        barSeries.DataPoints.Add(new CategoricalDataPoint(149, "3"));
        barSeries.DataPoints.Add(new CategoricalDataPoint(127, "4"));
        barSeries.DataPoints.Add(new CategoricalDataPoint(110, "5"));
        this.radChartView1.Series.Add(barSeries);

        BarSeries barSeries2 = new BarSeries("Performance", "RepresentativeName");
        barSeries2.Name = "Q2";
        barSeries2.LegendTitle = "Q2";
        barSeries2.DataPoints.Add(new CategoricalDataPoint(56, "1"));
        barSeries2.DataPoints.Add(new CategoricalDataPoint(65, "2"));
        barSeries2.DataPoints.Add(new CategoricalDataPoint(50, "3"));
        barSeries2.DataPoints.Add(new CategoricalDataPoint(43, "4"));
        barSeries2.DataPoints.Add(new CategoricalDataPoint(49, "5"));
        this.radChartView1.Series.Add(barSeries2);

        this.radChartView1.ShowLegend = true;
        this.radChartView1.LegendTitle = "Legend";
        StringBuilder sb = new StringBuilder();
        foreach (CategoricalDataPoint p in barSeries.DataPoints)
        {
            GridViewDecimalColumn newColumn = new GridViewDecimalColumn("col" + p.Category.ToString());
            newColumn.HeaderText = p.Category.ToString();
            this.radGridView1.Columns.Add(newColumn);
            sb.AppendFormat("{0}{1}", "col" + p.Category.ToString(), " + ");
        }
        sb.Remove(sb.ToString().Length - 3, 3);
        GridViewDecimalColumn col = new GridViewDecimalColumn("Total Column");
        radGridView1.Columns.Add(col);
        radGridView1.Columns["Total Column"].Expression = sb.ToString();

        GridViewRowInfo row = this.radGridView1.Rows.AddNew();
        foreach (CategoricalDataPoint p in barSeries.DataPoints)
        {
            row.Cells["col" + p.Category.ToString()].Value = p.Value;
        }

        GridViewRowInfo row2 = this.radGridView1.Rows.AddNew();
        foreach (CategoricalDataPoint p in barSeries2.DataPoints)
        {
            row2.Cells["col" + p.Category.ToString()].Value = p.Value;
        }

        GridViewSummaryRowItem summaryRowItem = new GridViewSummaryRowItem();
        foreach (GridViewColumn column in this.radGridView1.Columns)
        {
            GridViewSummaryItem summaryItem = new GridViewSummaryItem();
            summaryItem.Name = column.Name;
            summaryItem.Aggregate = GridAggregateFunction.Sum;
            summaryRowItem.Add(summaryItem);
        }

        this.radGridView1.SummaryRowsBottom.Add(summaryRowItem);
        this.radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
    }

    1: There is no automatic way to produce a RadGridView from the data inside a RadChartView. However, it can be easily achieved using the snippet above.

    2: It is not necessary to add a CategoricalDataPoint in the BarSeries for the total data. Thus, the total bar would not be rendered at all.

    3: In order to customize an item in the legend, you can use the ChartElement.LegendElement.VisualItemCreating event and perform the desired customization. Here is a code snippet, demonstrating how to hide a certain item:
    this.radChartView1.ChartElement.LegendElement.VisualItemCreating+=LegendElement_VisualItemCreating

    private void LegendElement_VisualItemCreating(object sender, LegendItemElementCreatingEventArgs e)
    {
        if (e.LegendItem.Title=="Q1")
        {
            e.ItemElement = new LegendItemElement(e.LegendItem);
            e.ItemElement.Visibility = ElementVisibility.Collapsed;
        }
    }

    I hope this information helps. Should you have further questions, I would be glad to help.

    Regards,
    Desislava
    Telerik
