Spin Editor Styling

5 posts, 1 answers
  1. Michael Holten
    Michael Holten avatar
    2 posts
    Member since:
    Sep 2009

    Posted 14 Jan 2011 Link to this post

    I'm familiar with making my own themes, but the SpinEditor does not seem to accept new colors for the "up/down arrows". I want a new fill color for those buttons.

    I also followed the Spin Editor Styling Tutorial, but again nothing changes the arrow buttons from their default blue shading. Also, when I'm in the Visual Style Builder's design mode, the display of the button does not change at all as I pick the various "state" tabs. Everything works great with other controls, just not the spin editor. ??? - Aussie
  2. Answer
    Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 16 Jan 2011 Link to this post

    Hello Michael,

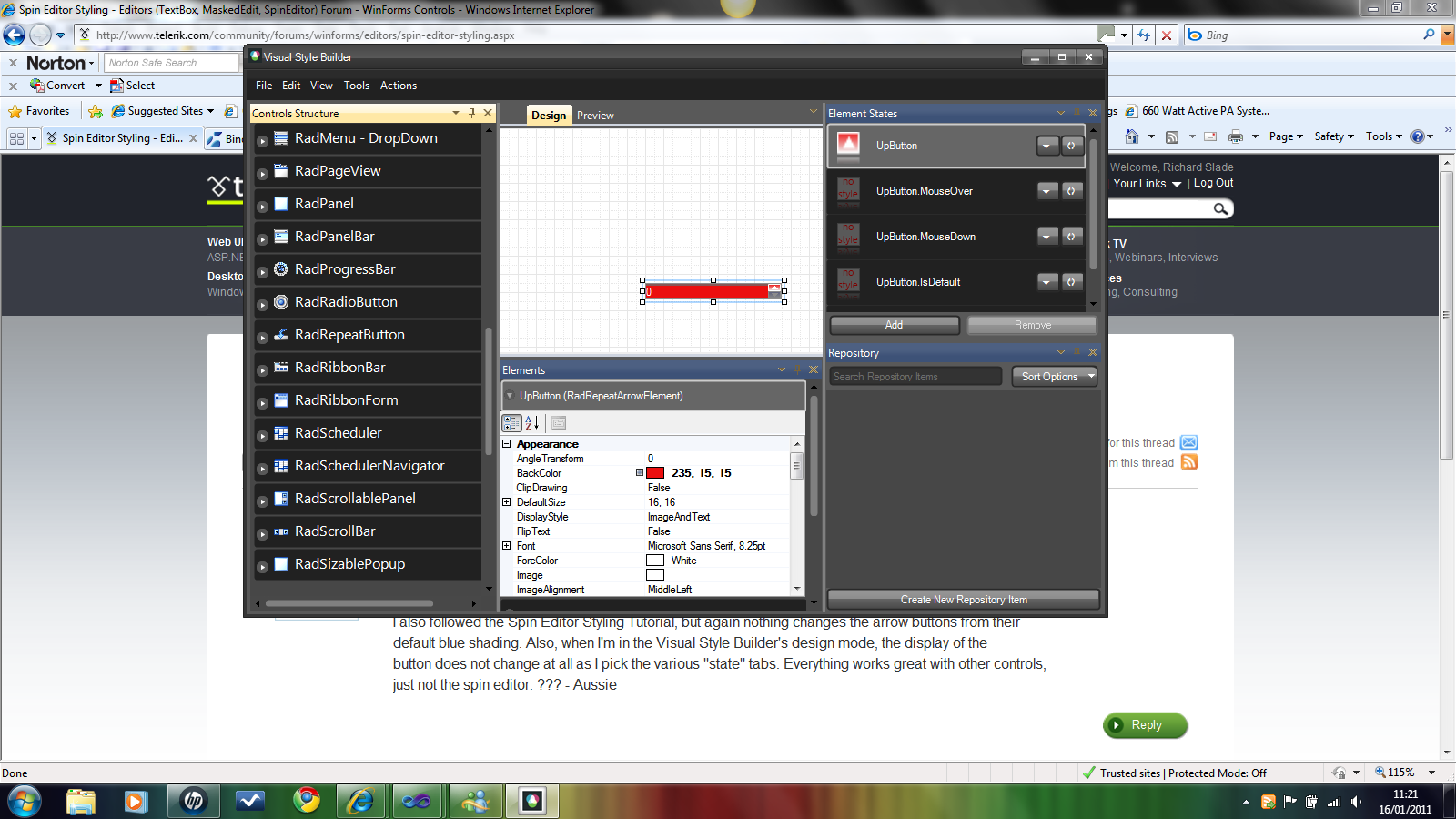

    What version of the RadControls are you using? As you can see from the attached screenshot, the arrow buttons on the RadSpinEditor can be styled.
    Regards,
    Richard
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Michael Holten
    Michael Holten avatar
    2 posts
    Member since:
    Sep 2009

    Posted 18 Jan 2011 Link to this post

    Thanks Richard, I bet you're right that I'm using an older version. Runtime version v2.0.50727, version 2009.3.9.1103. I'll see about us updating this. Thanks for the speedy reply. BTW, we love RadForms.
  5. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 18 Jan 2011 Link to this post

    No problem. Once you've upgraded, if you found that worked, please remember to mark as answer.
    Thanks
    Richard
  6. Ivan Petrov
    Admin
    Ivan Petrov avatar
    701 posts

    Posted 20 Jan 2011 Link to this post

    Hi Michael Holten,

    Thank you for writing.

    Richard is right that the up/down arrows can be themed. In Visual Style Builder you need to navigate to:
    1.In the Controls Structure:
    RadSpinEditor>>RadSpinElement>>Up/DownButton (either one Up or Down)
    2.Then in the Elements you need to go to:
    RadArrowButtonArrow(ArrowPrimitive)
    And set the ForeColor property to the desired color.

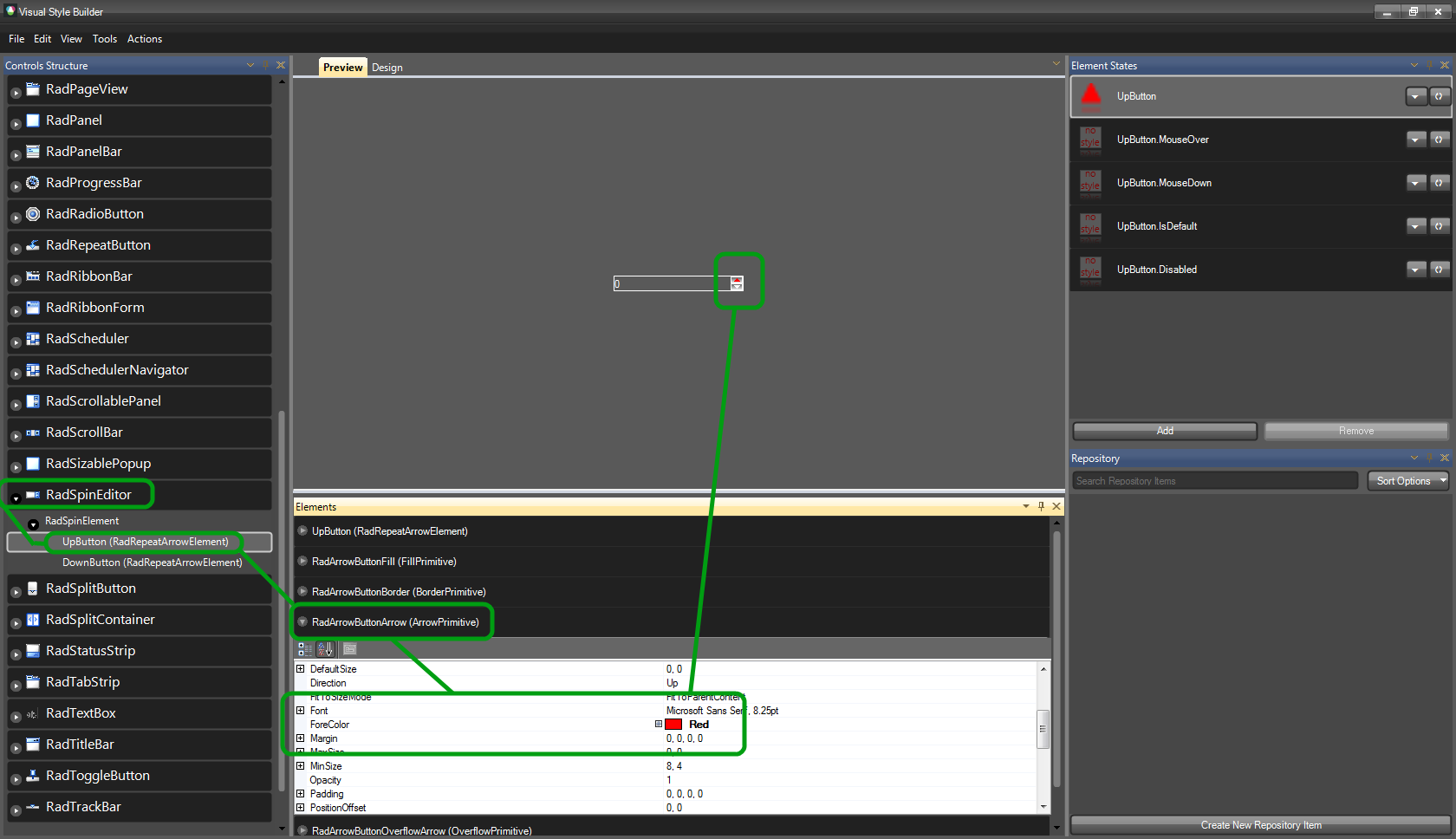

    You can look at the attached screenshot to get a better idea of the solution.

    I hope this will be of use to you. If you have further questions, I would be glad to assist you.

    Kind regards,
    Ivan Petrov
    the Telerik team
    Q3’10 SP1 of RadControls for WinForms is available for download; also available is the Q1'11 Roadmap for Telerik Windows Forms controls.
