Space between two RadButtonElement in a RibbonGroup

5 posts, 1 answers
  1. DoomerDGR8
    DoomerDGR8 avatar
    133 posts
    Member since:
    Aug 2010

    Posted 13 Jan 2011 Link to this post

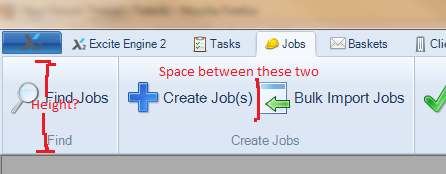

    Hello, this is a quick one: I need to increase space between two RadButtonElement inside a Ribbon group. The screen shot explains more. Is there a possibility?

    Secondly, What controls the overall Ribbon's height? can I make it slightly less taller?
  2. DoomerDGR8
    DoomerDGR8 avatar
    133 posts
    Member since:
    Aug 2010

    Posted 13 Jan 2011 Link to this post

    I've currently managed by typing three space characters in the text property of the Button element :)
    See, it works but was wondering if we could induce space between elements.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Answer
    Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 13 Jan 2011 Link to this post

    Hello again Hassan,

    To set the space, you should use padding on the button. For exmaple
    Me.RadButtonElement1.Padding = New Padding(3)

    To set the overall height, you may need to first manually set the size of the buttons and turn off Auto Size
    Me.RadButtonElement1.AutoSize = False
    Me.RadButtonElement1.Size = New Size(Me.RadButtonElement1.Size.Width, 40)

    then you can set the MaxSize of the RootElement of the RibbonBar itself
    Me.RadRibbonBar1.RootElement.MaxSize = New Size(0, 120)

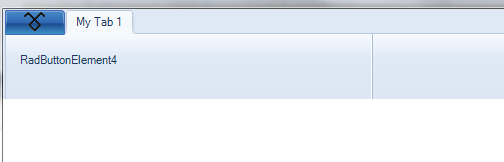

    I've attached a screenshot of the smaller version
    Regards
    Richard
  5. DoomerDGR8
    DoomerDGR8 avatar
    133 posts
    Member since:
    Aug 2010

    Posted 14 Jan 2011 Link to this post

    You are on a roll, Richard!
  6. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 14 Jan 2011 Link to this post

    haha, Thanks Hassan. Glad that helped you.
    Best wishes
    Richard
