RadRibbonForm icon size / position is skewed

3 posts, 0 answers
  1. Tops Software
    Tops Software avatar
    8 posts
    Member since:
    Aug 2012

    Posted 25 Jun 2013 Link to this post

    hello,

    i have a RadRibbonForm that has a skewed icon in the Form's titlebar.

    i have removed and replaced dozens of times - it does not help.

    i cannot start over on a new form - i have too much invested in this form already.

    does anyone have any ideas of how to resolve this?  what property is set to make it behave this way?



  2. Paul
    Admin
    Paul avatar
    60 posts

    Posted 28 Jun 2013 Link to this post

    Hi Chris,

    Thank you for writing.

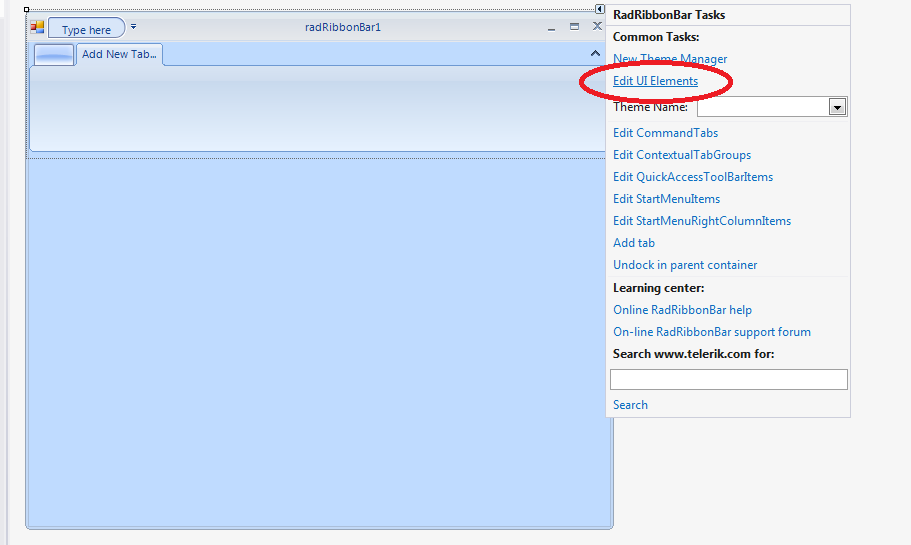

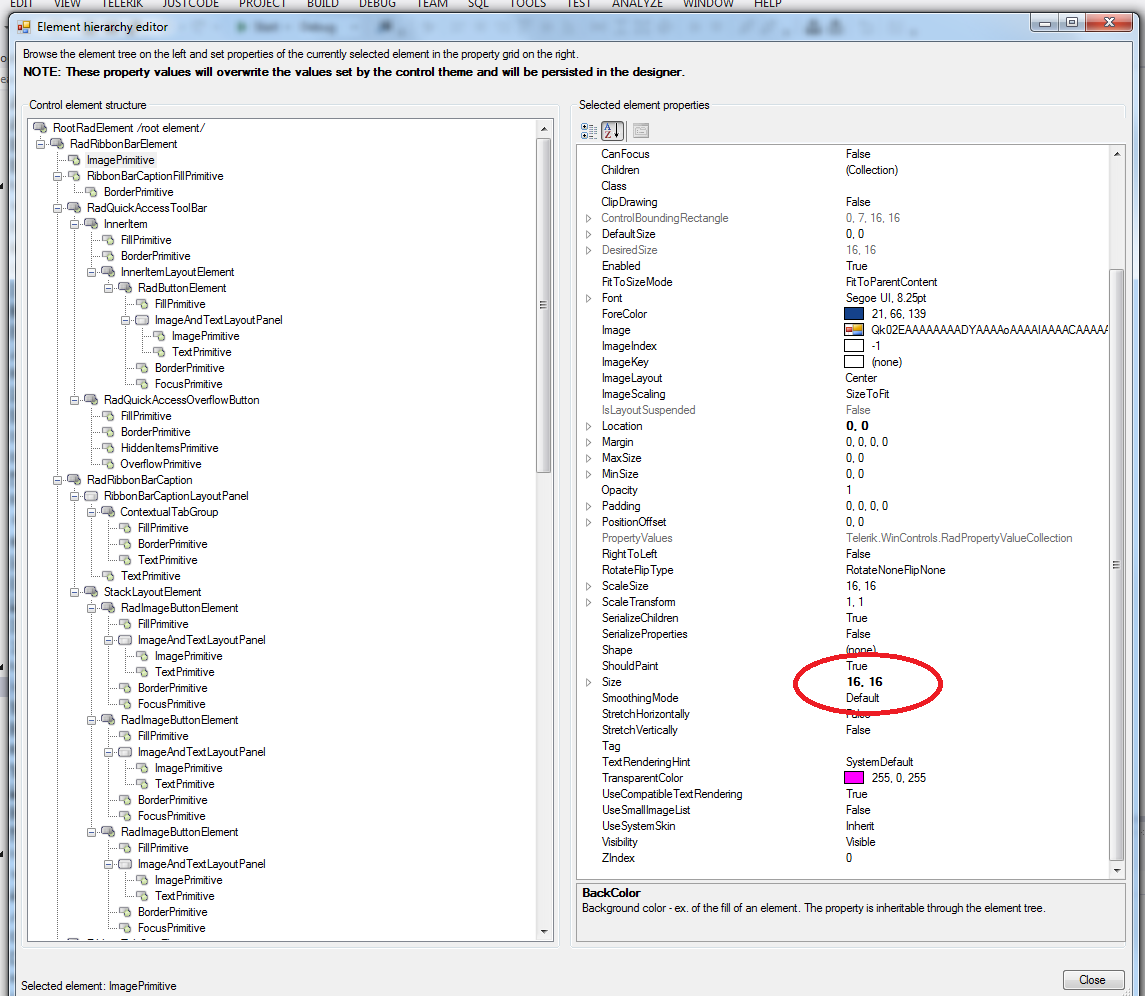

    A possible reason for changing the size of the element which holds the icon in the title bar might be changing the properties of the latter via the Edit UI Elements option. To check them out, open the same menu (from the Smart Tag of the ribbon). Once the menu is opened go to the third element "Image primitive" and check if the size is the correct one "16x16" pixels.

    I have attached two images to show you where exactly to look.

    If after checking you realize that everything is ok, I would kindly ask you to send across your project so I can run it here and see what is going on.

    Hope that helps. Please do not hesitate to contact us, should you need further assistance.

    Regards,
    Paul
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WINFORMS.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Tops Software
    Tops Software avatar
    8 posts
    Member since:
    Aug 2012

    Posted 28 Jun 2013 Link to this post

    you nailed in paul - thank you!!!
