RadGridView takes long time to load

12 posts, 1 answers
  1. hacker
    hacker avatar
    78 posts
    Member since:
    Nov 2006

    Posted 13 Feb 2008 Link to this post

    The telerik radgridview takes a long time to load all records.

      Dim strProp As String = "Select * from " & ViewName
      Dim daProp As New OleDb.OleDbDataAdapter(strProp, conNFAD_NEW)
      Dim dsProp As New DataSet
      daProp.Fill(dsProp, "dtProp")
      rgvMain.DataSource = dsProp.Tables("dtProp")

    (rgvMain) being the radgridview

    The query returns 31 000 records (8 columns). It takes about 10 seconds to load.

    --------------

    I tried instead of doing "select * from"  to do a "select top 500". But when you filter the radgridview it filters the 500 records it returned form the query not the 31 000. which is correct.

    But:

    Is there a way to re-query the grid when a filter is applied so that it would return the top 500 records with the applied filter.

    Thanks,

    Goran Djuric

  2. Jack
    Admin
    Jack avatar
    2335 posts

    Posted 14 Feb 2008 Link to this post

    Hi soatley,

    Thank you for writing us.

    We did several tests with RadGridView. We bound the grid to a DataTable containing 50000 rows and 10 columns. The average result was 2.5 seconds load time. Please, could you measure the time when the DataSource property is set after calling the Fill method of your DataAdapter. It is possible that the Fill method needs some time to connect to the SQL server and fill its data.

    Currently, we are revising the RadGridView data layer and will optimize the load time in our upcoming release Q1 2008.

    Do not hesitate to contact us if you need further assistance.

    All the best,
    Jack
    the Telerik team

    Instantly find answers to your questions at the new Telerik Support Center
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Goran
    Goran avatar
    3 posts
    Member since:
    Feb 2008

    Posted 14 Feb 2008 Link to this post

    HI Jack,

    ViewName =

    "srcProperty"
    Dim strProp As String = "Select * from " & ViewName
    Dim daProp As New OleDb.OleDbDataAdapter(strProp, conNFAD_NEW)
    Dim dsProp As New DataSet
    Dim ds1 As DateTime = DateTime.Now
    daProp.Fill(dsProp,
    "dtProp")
    Dim ds2 As DateTime = DateTime.Now

    Dim rgv1 As DateTime = DateTime.Now
    rgvMain.DataSource = dsProp.Tables(
    "dtProp")
    Dim rgv2 As DateTime = DateTime.Now

    Dim dgv1 As DateTime = DateTime.Now
    dgvMain.DataSource = dsProp.Tables(
    "dtProp")
    Dim dgv2 As DateTime = DateTime.Now

    Dim strMsg As String = "dsLoad = " & ds2.Subtract(ds1).ToString & vbNewLine
    strMsg +=
    "rgvMain = " & rgv2.Subtract(rgv1).ToString & vbNewLine
    strMsg +=
    "dgvMain = " & dgv2.Subtract(dgv1).ToString

    rgvMian = rad grid view
    dgvMain = data grid view

    "THE Message:

    dsLoad =   00.00.06.2063804
    rgvMain =  00.00.05.8468168
    dgvMain = 00.00.00.0781660
    -----------------------------


    I was wondering would it be possible to do the following:

    In the rgvMain.FilterChanged event:
    ---
    For i As Integer = 0 To rgvmain.columns.count - 1
        If CType(Me.rgvmain.mastergridviewtemplate.colmns(i),     gridviewdatacolumn).filter.stringvalue <> vbnullstring Then

    msg += COLUMN NAME

    msg += " like/= etc.. "

     msg += CType(Me.rgvmain.mastergridviewtemplate.columns(i), gridviewdatacolumn).filter.stringvalue

    End If
    Next
    -----

    So when ever the filters change, I would get the filter string value and the databse column name. I would re - query the datagrid to select the top 500 records based on the filter value. This will bring down the time the data set takes to load, and the time the rad grid view takes to load.  Do you think someting like this would be possible ?


    Thank You,

    Goran Djuric







  5. Julian Benkov
    Admin
    Julian Benkov avatar
    1135 posts

    Posted 15 Feb 2008 Link to this post

    Hi Goran,

    You can implement this approach, but this will not decrease the load time of RadGirdView. For the new edition of RadGridView we have made more improvements for loading/showing/updating of data. The beta release will be available next week at the latest.

    Currently, you can filter data in your SQL query or filter DefaultView of DataTable object and bind it to the RadGridView. Also you can bind a DataTable object to a BindingSource object, setup its Filter property and then bind to RadGridView.

    I hope this was helpful. Contact me with any further questions you might have.

    Kind regards,
    Julian Benkov
    the Telerik team

    Instantly find answers to your questions at the new Telerik Support Center
  6. hacker
    hacker avatar
    78 posts
    Member since:
    Nov 2006

    Posted 15 Feb 2008 Link to this post

    I got the radgridview to select "TOP" while using the filter control.

    I have posted the code below. There is one small glitch. After you type in a filter (the radgridview requires the data with "Select TOP") but due to the requery it takes the focus of the filter text box. Is there a way I can put the focus back to the last filter column with the "blinking text cursor" to the right of the text. (Not selecting the filter text) .

    Thank you,

    Goran Djuric

    Imports Telerik.WinControls

    Imports Telerik.WinControls.UI

    Imports Telerik.WinControls.Docking



    ''' <summary>

    ''' PROPERTY SEARCH FORM

    ''' </summary>

    Public Class frmPropertySearch

        Inherits ShapedForm



        Private formLoading As Boolean = True

        Private strFilter As String = ""





    #Region " --== FORM PROPERTIES ==-- "

        ''' <summary>

        ''' VIEW NAME

        ''' </summary>

        Private strViewName As String

        Public Property ViewName() As String

            Get

                Return strViewName

            End Get

            Set(ByVal value As String)

                strViewName = value

            End Set

        End Property

    #End Region



        ''' <summary>

        ''' FORM LOAD

        ''' </summary>

        Private Sub frmPropertySearch_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load

            '-- LOADS THE MAIN COLUMN ITEMS THE (SEARCH DATAGRID)

            loadMainDataGrid()



            '-- SETTING ALL COLUMNS TO FILTER BY (STARTS WITH)

            For i As Integer = 0 To rgvMain.Columns.Count - 1

                CType(Me.rgvMain.MasterGridViewTemplate.Columns(i), GridViewDataColumn).Filter.Function = GridKnownFunction.StartsWith

            Next



            tlpPropertySearch.RowStyles.Remove(tlpPropertySearch.RowStyles.Item(3))

            formLoading = False

        End Sub





        ''' <summary>

        ''' LOADS THE SEARCH DATA

        ''' </summary>

        Private Sub loadMainDataGrid()

            rgvMain.Rows.Clear()

            '-- VIEW NAME (T-SQL VIEW)

            ViewName = "srcProperty"

            '-- TOP 500 LOADS IN UNDER 1 SEC :)

            Dim strProp As String = "Select top 500 * from " & ViewName & " " & IIf(strFilter <> "", " where ", "") & " " & strFilter

            Dim daProp As New OleDb.OleDbDataAdapter(strProp, conNFAD_NEW)

            Dim dsProp As New DataSet

            daProp.Fill(dsProp, "dtProp")

            rgvMain.DataSource = dsProp.Tables("dtProp")

            rgvMain.Refresh()

        End Sub



        ''' <summary>

        ''' SELECTING A PROPERTY

        ''' </summary>

        Private Sub rbeSelect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles rbeSelect.Click

            '--== PASSING PRIMARY KEY TO PASSING OBJECT AND OPENING PASSING OBJECT (FORM)

            mdiMain.propForm.pkValue = rgvMain.SelectedRows.Item(0).Cells(0).Value

            mdiMain.propForm.MdiParent = mdiMain

            mdiMain.propForm.Dock = DockStyle.Fill

            mdiMain.propForm.Show()

            mdiMain.propForm.loadData()

            mdiMain.propForm.Visible = True

            Me.Close()

            'mdiMain.popup = passingObject

        End Sub



        ''' <summary>

        ''' RAD GRID VIEW - FILTER CHANGED EVENT

        ''' </summary>

        Private Sub rgvmain_filterchanged(ByVal sender As Object, ByVal e As Telerik.WinControls.UI.FilterChangedEventArgs) Handles rgvMain.FilterChanged

            If formLoading = True Then Exit Sub

            strFilter = ""  '--> PRIVATE FILTER STRING (CLEAR EVERY TIME FILTER EVENT RUNS)

            For i As Integer = 0 To rgvMain.Columns.Count - 1 '--> LOOPING THORUGH RAD GRID VIEW COLUMNS

                If CType(Me.rgvMain.MasterGridViewTemplate.Columns(i), GridViewDataColumn).Filter.StringValue <> vbNullString Then '--> IF THE FILTER STRING IN A GIVEN COLUMN IS NOT NULL

                    If strFilter <> "" Then strFilter += " and " '--> IF THE strFILTER IS NOT "" THEN IT ALREADY HAS A FILTER SO ADD (and) BEFORE ADDING NEXT FILTER

                    strFilter += Me.rgvMain.Columns(i).HeaderText '--> ADDING COLUMN NAME

                    strFilter += " like '"

                    strFilter += CType(Me.rgvMain.MasterGridViewTemplate.Columns(i), GridViewDataColumn).Filter.StringValue '--> ADDING FILTER VALUE

                    strFilter += "%'"

                End If

            Next



            '-- CALLING THE DATAGRID LOAD EVENT (TO REQUERY DATA)

            loadMainDataGrid()

        End Sub

    End Class




  7. Jack
    Admin
    Jack avatar
    2335 posts

    Posted 18 Feb 2008 Link to this post

    Hi soatley,

    Thank you for writing.

    Currently, the filtering row cannot be focused through the API. We will consider adding this feature in one of our future releases. Do not hesitate to write us if you have other questions.

    Kind regards,
    Jack
    the Telerik team

    Instantly find answers to your questions at the new Telerik Support Center
  8. Rick Petersen
    Rick Petersen avatar
    13 posts
    Member since:
    Feb 2009

    Posted 08 Oct 2009 Link to this post

    I am curious what the official response is to this with the current (2009 Q2 SP1) tool.

    I have found myself able to do the following:

            private void TransactionList_Activated(object sender, EventArgs e)
            {
                this.radGridView1.MasterGridViewInfo.TableFilteringRow.IsCurrent = true
            }

    This does successfully, upon the WinForm receiving focus, set the focus into the Filtering Row of the gridview.  That said, I only have 1 column in the grid, and it goes nicely to that column for text entry, but I'm not sure what would happen on a multi-column grid.

    My only issue now is, this grid is a single integer-based column grid.  When the window pops up and I begin typing, the first keypress triggers a form KeyPress event that has a sender type of Telerik.WinControls.UI.RadGridView, and places the digit typed at the beginning of the filter textbox; however, it then places the cursor BEFORE that character.  Subsequent keypresses do not trigger a form KeyPress event.  I'm not sure if there is an event I can use to hook into future keypresses or not.

    Basically, I wanted to point out that now, there IS a way to give focus to the TableFilteringRow, and ask if there is a way, when doing this, to have two subsequent keypresses place the inputted characters in the proper order.




  9. Jack
    Admin
    Jack avatar
    2335 posts

    Posted 09 Oct 2009 Link to this post

    Hi Rick,

    You can use the following code to focus a cell in the filtering row:

    protected override void OnActivated(EventArgs e)
    {
        base.OnActivated(e);
        this.radGridView1.MasterGridViewInfo.TableFilteringRow.IsCurrent = true;
        this.radGridView1.Columns[1].IsCurrent = true;
        this.radGridView1.BeginEdit();
    }

    If you continue to experience the issue, please send us your project so we can test and locate the problem. I will be glad to help you further.

    Sincerely yours,
    Jack
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  10. Muthu
    Muthu avatar
    8 posts
    Member since:
    Oct 2012

    Posted 06 Nov 2012 Link to this post

    Hi, I am using radgrid in my winform. There I am allowing users to add new row. I have also enabled filter. Here, Add new rows comes on the top where as filter row comes below as second row(not as last row). I want filter column as first row always and add new row as second row. Is it possible? Help me in this issue.
  11. Answer
    Emanuel Varga
    Emanuel Varga avatar
    1336 posts
    Member since:
    May 2010

    Posted 07 Nov 2012 Link to this post

    Hello Muthu,

    Usually for unrelated questions you should open a new thread, so people could easily find the right answer for your question.

    grid.MasterView.SystemRows.Move(grid.MasterView.SystemRows.IndexOf(grid.MasterView.TableAddNewRow), grid.MasterView.SystemRows.IndexOf(grid.MasterView.TableFilteringRow));

    This should solve your problem.

    Best Regards,
    Emanuel Varga

    Winforms MVP
  12. denish
    denish avatar
    2 posts
    Member since:
    Sep 2014

    Posted 25 Sep 2014 Link to this post

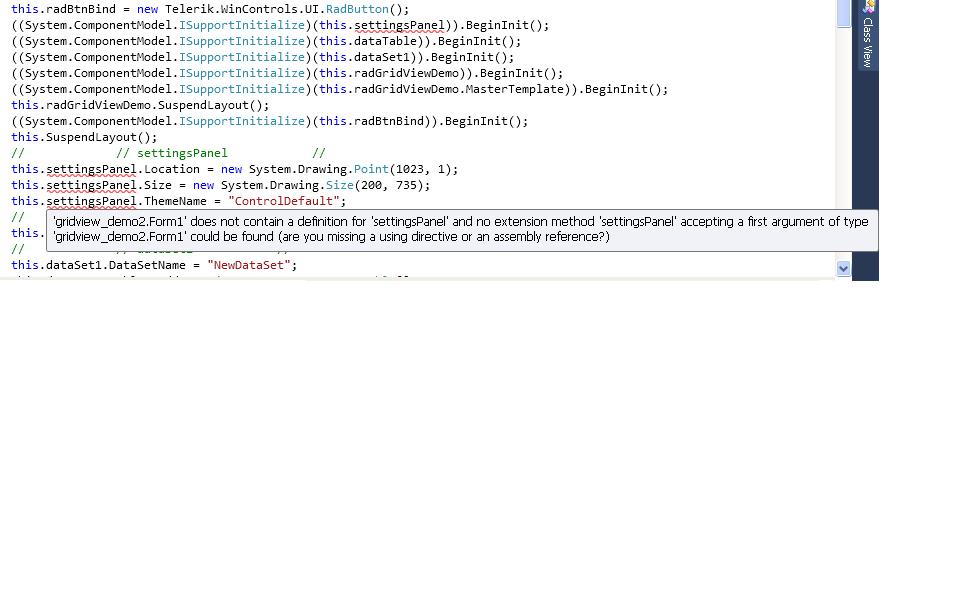

    i have a problem with gridview while i m copy from the telerik software.
    this problem is with gridview/50000 rows.
    i  hope u got my point.
  13. George
    Admin
    George avatar
    500 posts

    Posted 30 Sep 2014 Link to this post

    Hi Denish,

    The error you are getting is just extra code you have copied from the example, concerning the demo application. You should not need it and you can safely remove it. Here you can get acquainted with the RadGridView control data binding: http://www.telerik.com/help/winforms/gridview-populating-with-data-tutorial-binding-to-datatable-or-dataset.html.

    Regards,
    George
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.
