Persist State - Kendo Grid

16 posts, 0 answers
  1. Suresh
    Suresh avatar
    8 posts
    Member since:
    Dec 2014

    Posted 07 Jan 2015 Link to this post

    Hi,

    I have a kendo grid that can be sorted, filtered, grouped, etc. via bound columns. I have action links in each row. If the user wants to filter the grid (sort, group, etc), then perform an edit action (navigates to another view), and then return back to the index page, the filtered records need to be preserved. I have tried the coding that is presented in the demo, but those are for situations within the index page (Save & Load buttons). I want to navigate from the index page and return back and keep the grid state preserved.

    Thanks,
    Suresh
  2. Bob
    Bob avatar
    123 posts
    Member since:
    Sep 2012

    Posted 07 Jan 2015 in reply to Suresh Link to this post

    I've done this by adding the event on the grid

    .Events(events => events.DataBound("onDataBound"))

    Here's the javascript.  It saves the options whenever a databound event happens which should occur when you page, filter, or sort.  Then when user comes back, the settings are pulled and applied.
    var localStorageKey = "UserAdministrationUserGridOptions";

    function onDataBound(arg)
    {
        var grid = $("#UserAdministrationUserGrid").data("kendoGrid");
        localStorage[localStorageKey] = kendo.stringify(grid.getOptions());
    }

    $(function () {
        // pull client grid state and apply to grid (filters, current page, sorts, etc).
    });

    function setGridOptions() {
        var options = localStorage[localStorageKey];

        if (options) {
            $("#UserAdministrationUserGrid").data("kendoGrid").setOptions(JSON.parse(options));
        }
    }

  3. UI for ASP.NET MVC is VS 2017 Ready
  4. Bob
    Bob avatar
    123 posts
    Member since:
    Sep 2012

    Posted 07 Jan 2015 in reply to Suresh Link to this post

    Here's what I did:

    Set databound event: .Events(events => events.DataBound("onDataBound"))

    Then in javascript, save the state on every databind automatically, then pull the state when the page is re-loaded.

    var localStorageKey = "UserAdministrationUserGridOptions";

    function onDataBound(arg) {
        var grid = $("#UserAdministrationUserGrid").data("kendoGrid");
        localStorage[localStorageKey] = kendo.stringify(grid.getOptions());
    }

    function setGridOptions() {
        var options = localStorage[localStorageKey];

        if (options) {
            $("#UserAdministrationUserGrid").data("kendoGrid").setOptions(JSON.parse(options));
        }
    }
  5. Bob
    Bob avatar
    123 posts
    Member since:
    Sep 2012

    Posted 07 Jan 2015 Link to this post

    I love how this forum tells me there's an error, then I re-type post and find I double-posted.
  6. Suresh
    Suresh avatar
    8 posts
    Member since:
    Dec 2014

    Posted 08 Jan 2015 in reply to Bob Link to this post

    Thanks Bob. I implemented your code, but the grid state is not being applied when I return back from the edit page. Here is my code.

    <script type="text/javascript">
    var localStorageKey = "UserAdministrationUserGridOptions";
    function dataBound() {
    var grid = $("#grid").data("kendoGrid");
    localStorage[localStorageKey] = kendo.stringify(grid.getOptions());
    }
    $(function () {
    setGridOptions();
    });

    function setGridOptions() {

    var options = localStorage[localStorageKey];
    if (options) {

    $("#grid").data("kendoGrid").setOptions(JSON.parse(options));

    }

    }
    </script>
  7. Bob
    Bob avatar
    123 posts
    Member since:
    Sep 2012

    Posted 08 Jan 2015 in reply to Suresh Link to this post

    Hmmm...have you tried debugging (or JavaScript alerts) to make sure options are getting set on databound and pulled on page load?
  8. Suresh
    Suresh avatar
    8 posts
    Member since:
    Dec 2014

    Posted 08 Jan 2015 Link to this post

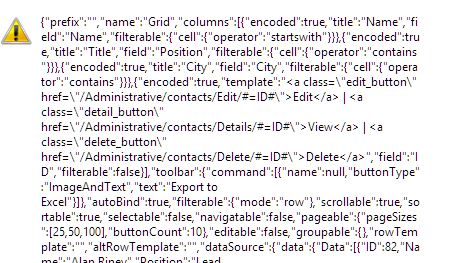

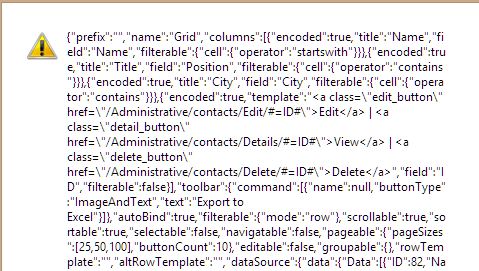

    Yes, I did. Attached are screenshots.
    GetOptions_Alert.jpg is after grid.getOptions()
    SetOptions.jpg is after

    I filtered by FirstName = 'Bob' but I don't see this filter in the alert message

    Is the databound event being saved?

    Thanks.
  9. Suresh
    Suresh avatar
    8 posts
    Member since:
    Dec 2014

    Posted 08 Jan 2015 Link to this post

    Ok, I changed the code like this.

    function dataBound() {
    var grid = $("#grid").data("kendoGrid");
    var dataSource = grid.dataSource;
    var state = {
    columns: grid.columns,
    page: dataSource.page(),
    pageSize: dataSource.pageSize(),
    sort: dataSource.sort(),
    filter: dataSource.filter(),
    group: dataSource.group()
    };
    localStorage[localStorageKey] = kendo.stringify(state);
    alert(localStorage[localStorageKey]);

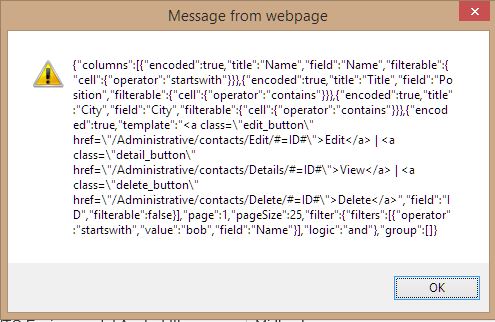

    The alert shows the filter that I applied (filter_bob.jpg)


    SetGridOptions
    function setGridOptions() {

    var options = localStorage[localStorageKey];


    if (options) {
    alert(options);
    $("#grid").data("kendoGrid").setOptions(JSON.parse(options));

    }

    This alert shows the original state of the grid, not the state through setoptions.

    Thanks.
  10. Petur Subev
    Admin
    Petur Subev avatar
    1882 posts

    Posted 09 Jan 2015 Link to this post

    Hello Suresh,

    Here is an example which you can try in action - resize, hide / show column, reorder or lock column, or any dataBinding action and then refresh the page. The page should look the same as it was left.

    http://runner.telerik.io/fullscreen/@pesho/oQOwo/3

    You can check the code by editing the example:

    http://dojo.telerik.com/@pesho/oQOwo/3



    Kind Regards,

    Petur Subev

    Telerik



    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  11. Bob
    Bob avatar
    123 posts
    Member since:
    Sep 2012

    Posted 09 Jan 2015 in reply to Petur Subev Link to this post

    Thanks for example Petur as there was several events I wasn't capturing
  12. Suresh
    Suresh avatar
    8 posts
    Member since:
    Dec 2014

    Posted 09 Jan 2015 in reply to Bob Link to this post

    Thanks Bob and Petur.

    This what I ended up doing. On the Edit action link I call:

    function LinkEdit() {
    var grid = $("#grid").data("kendoGrid");
    localStorage["kendo-grid-options"] = kendo.stringify(grid.getOptions());
    }

    and on page load I call:

    $(document).ready(function () {
    var grid = $("#grid").data("kendoGrid");
    var options = localStorage["kendo-grid-options"];
    if (options) {
    grid.setOptions(JSON.parse(options));
    }
    })


    This works, except when I load the page from the menu, the persists state is restored. So, in the menu onclick, I set
    localStorage["kendo-grid-options"] = null;

    Works fine for now.

    Thanks for your help.

    Suresh
  13. DHHS
    DHHS avatar
    59 posts
    Member since:
    Mar 2015

    Posted 03 Sep 2015 Link to this post

    Hi Suresh,

    Is your custom command is working after coming back?



    Hi Petur,



    I have used the solution given by suresh. Everything is working fine and the grid is setting the options back. But next time my custom command buttons are not working. On click function is not working on edit or view buttons. I think it is because the custom command buttons are not binding properly while setting options.

       <div class="row">
           <div class="col-xs-18 col-md-12">
               @(Html.Kendo().Grid<BHEBS.Areas.Admin.Models.ContractorModel.contractor>()
           .Name("contractorGrid")
           .Columns(columns =>
           {
               //columns.Bound(p => p.Id).Filterable(false).Width(50);
               columns.Bound(p => p.ContractorName).Width(150);
               columns.Bound(p => p.ContractorType).Title("Type").Width(40);
               columns.Bound(p => p.BHSISNum).Width(100); ;
               columns.Bound(p => p.ContractorIsAlsoRegion).Width(50).Title("Is Region").ClientTemplate("<input type='checkbox' disabled='disabled' #= ContractorIsAlsoRegion ? checked='checked': '' # class='chkbx' />").HtmlAttributes(new { style = "text-align: center" });
               columns.Bound(p => p.IsParent).Width(50).Title("Is Parent").ClientTemplate("<input type='checkbox' disabled='disabled' #= IsParent ? checked='checked': '' # class='chkbx' />").HtmlAttributes(new { style = "text-align: center" });
               columns.Bound(p => p.AddressBkNum).Width(60);
               columns.Bound(p => p.StartDate).Format("{0:MM/dd/yyyy}").Width(60);
               columns.Bound(p => p.EndDate).Format("{0:MM/dd/yyyy}").Width(60); ;
               columns.Bound(p => p.ISAT).Width(50);
               columns.Bound(p => p.MHS).Width(50);
               columns.Bound(p => p.ParentName).Width(100);
               columns.Command(command =>
               {
                   command.Custom("Edit").SendDataKeys(true).Click("editClick");
                   command.Custom("View").SendDataKeys(true).Click("viewClick");
                   //command.Custom("Delete").SendDataKeys(true).Click("deleteClick");
               }).Width(120);
           })
              .Events(e => e.DataBound("onDataBound"))
              .Pageable(pageable => pageable.Refresh(true).PageSizes(true).ButtonCount(5))
              .Sortable()
              .Scrollable()
              .Filterable()
              .Selectable()
              .AutoBind(true)
              .Resizable(resize => resize.Columns(true))
              .HtmlAttributes(new { style = "height:600px;" })
              .DataSource(dataSource => dataSource.Ajax().Read(read => read.Action("Contractors_Read", "Contractor")).Model(model => model.Id(p => p.Id)))
              .ToolBar(toolbar =>
              {
                  toolbar.Template(@<text><div class="toolbar pull-right tbheight">
                       <a class="k-button k-button-icontext k-grid-excel" href="#"><span class="k-icon k-i-excel"></span></a>
                   </div></text>);
                  toolbar.Excel().HtmlAttributes(new { @class = "pull-right" }).Text(" Export to Excel");
              })
                      .Excel(excel => excel.FileName("Contractor.xlsx").Filterable(true).AllPages(true).ProxyURL(Url.Action("Excel_Export_Save", "Contractor")))
               )
           </div>
       </div>


    function editClick(e) {
           var grid = $("#contractorGrid").data("kendoGrid");
           localStorage["kendo-grid-options"] = kendo.stringify(grid.getOptions());
           //saveGridOptions("contractorGrid", '@Url.Action("SaveGridOptions")');
           e.preventDefault();
           var dataItem = this.dataItem($(e.currentTarget).closest("tr"));
           var Id = dataItem.Id;
           var element = $(document.body);
           kendo.ui.progress(element, true);
           $.ajax({
               url: '@Url.Action("Edit")',
               type: 'GET',
               data: {
                   'id': Id
               },
               success: function (data) {
                   kendo.ui.progress(element, false);
                   $('#ContractorIndexDiv').html(data);
               },
               error: function () {
                   kendo.ui.progress(element, false);
                   console.log("error in saving the record");
               }
           });
           //window.location.href = '@Url.Action("Edit","Contractor")/' + Id;
       }


      $(document).ready(function () {
           var grid = $("#contractorGrid").data("kendoGrid");
           var options = localStorage["kendo-grid-options"];
           alert(options);

           if (options) {
               alert(JSON.parse(options));
               grid.setOptions(JSON.parse(options));
           }
          // loadGridOptions("contractorGrid", '@Url.Action("LoadGridOptions")');
       });

  14. Kiril Nikolov
    Admin
    Kiril Nikolov avatar
    2566 posts

    Posted 07 Sep 2015 Link to this post

    Hello DHHS,



    Please check the important section of the following documentation article, that explains what happens in your case:



    http://docs.telerik.com/kendo-ui/api/javascript/ui/grid#methods-setOptions



    you can also find a possible solution there.



    Regards,
    Kiril Nikolov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  15. Adrian Segovia
    Adrian Segovia avatar
    9 posts
    Member since:
    Dec 2009

    Posted 10 Sep 2015 in reply to DHHS Link to this post

    Hi DHHS,

    Did you get a solution for this? I'm having the same problem with the custom command.

  16. DHHS
    DHHS avatar
    59 posts
    Member since:
    Mar 2015

    Posted 14 Sep 2015 Link to this post

    Hi Adrian,



    Yes I did some workaround. I was not using columns or group by, so i removed those and kept only i want. This is how I am doing. Hope this helps :) Ley me know if you have any other issues. I really spent lot of time on this :(



       function editClick(e) {
    var grid = $("#contractGrid").data("kendoGrid");
            var dataSource = grid.dataSource;
            var state = {
                page: dataSource.page(),
                pageSize: dataSource.pageSize(),
                sort: dataSource.sort(),
                filter: dataSource.filter()
            };
            localStorage["kendo-grid-options"] = kendo.stringify(state);
    }

      $(document).ready(function () {
            var grid = $("#contractGrid").data("kendoGrid");
            var state = localStorage["kendo-grid-options"];
            //  alert(state);
            if (state) {
                data = JSON.parse(state);
                //alert(data.page);
                var options = grid.options;
                options.dataSource.page = data.page;
                options.dataSource.pageSize = data.pageSize;
                options.dataSource.sort = data.sort;
                options.dataSource.filter = data.filter;
                grid.destroy();
                $("#contractGrid")
               .empty()
               .kendoGrid(options);
            }
        });

    On menu click I am clearing the localstorage

      $(".nav-stacked").click(function () {
            window.localStorage.clear();
        });

  17. DD101
    DD101 avatar
    3 posts
    Member since:
    Apr 2015

    Posted 14 Oct 2015 in reply to DHHS Link to this post

    Big thanks to DHHS for this work around :)
