List View in Cell of GridView

4 posts, 1 answers
  1. Saeed
    Saeed avatar
    4 posts
    Member since:
    May 2014

    Posted 12 Aug 2015 Link to this post

    Hello

    I succeeded to put a listview in a cell ​of a grid. But I have some problems with it.

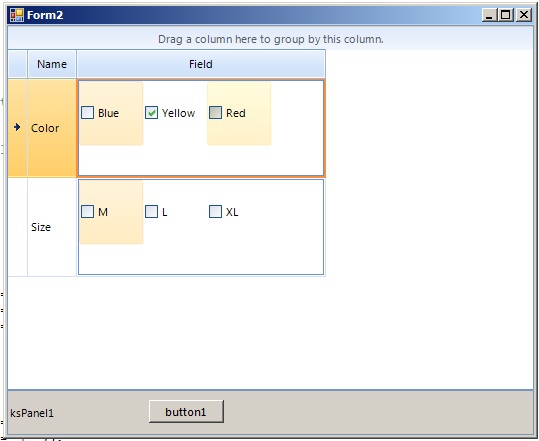

    1. Why the first listview item is always highlighted.
    2. How can I add the possibility to work with keyboard to select some listview items instead of mouse.

    public class CheckListBoxCellElement : GridDataCellElement
    {
        public CheckListBoxCellElement(GridViewColumn column, GridRowElement row)
            : base(column, row)
        {
        }

        RadListViewElement radListElement;

        protected override void CreateChildElements()
        {
            base.CreateChildElements();

            radListElement = new RadListViewElement();

            radListElement.ShowCheckBoxes = true;
            radListElement.AllowArbitraryItemHeight = true;
            radListElement.ViewType = ListViewType.IconsView;
            radListElement.VisualItemFormatting += new ListViewVisualItemEventHandler(radListElement_VisualItemFormatting);

            radListElement.ItemCheckedChanged += new ListViewItemEventHandler(radListElement_ItemCheckedChanged);
            this.Children.Add(radListElement);
        }

        void radListElement_VisualItemFormatting(object sender, ListViewVisualItemEventArgs e)
        {
            BaseListViewVisualItem lvi = e.VisualItem as BaseListViewVisualItem;
            lvi.DrawBorder = true;
            lvi.DrawFill = true;
            lvi.CanFocus = true;
        }

        void radListElement_ItemCheckedChanged(object sender, ListViewItemEventArgs e)
        {
            if (e.Item.CheckState == Telerik.WinControls.Enumerations.ToggleState.On)
            {
                PropertyValue val = (PropertyValue)e.Item.DataBoundItem;
                val.Selected = true;
            }
            else
            {
                PropertyValue val = (PropertyValue)e.Item.DataBoundItem;
                val.Selected = false;
            }
        }

        protected override void SetContentCore(object value)
        {
            IList list = (IList)value;

            radListElement.DataSource = list;
            radListElement.DisplayMember = "Name";
            radListElement.ValueMember = "ID";
        }

        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(GridDataCellElement);
            }
        }

        public override bool IsCompatible(GridViewColumn data, object context)
        {
            return data is CheckListBoxColumn && context is GridDataRowElement;
        }
    }



    public class CheckListBoxColumn : GridViewDataColumn
    {
        public CheckListBoxColumn(string fieldName)
            : base(fieldName)
        {
        }

        public override Type GetCellType(GridViewRowInfo row)
        {
            if (row is GridViewDataRowInfo)
            {
                return typeof(CheckListBoxCellElement);
            }
            return base.GetCellType(row);
        }
    }

    public class Data
    {
        public string Name { get; set; }
        public IList Field { get; set; }
    }


    public partial class MYForm : Form
    {
        public MYForm()
        {
            InitializeComponent();

            Init();
        }

        private void Init()
        {
            GridViewTextBoxColumn column1 = new GridViewTextBoxColumn("Name");
            ksGrid.Columns.Add(column1);

            CheckListBoxColumn column2 = new CheckListBoxColumn("Field");
            ksGrid.Columns.Add(column2);
            column2.Width = 250;

            ksGrid.AutoGenerateColumns = false;

            ArrayList list = new ArrayList();

            IList values1 = new ArrayList();
            values1.Add(new PropertyValue() { ID = 1, Name = "Blue" });
            values1.Add(new PropertyValue() { ID = 2, Name = "Yellow" });
            values1.Add(new PropertyValue() { ID = 3, Name = "Red" });
            Data data1 = new Data { Name = "Color", Field = values1 };
            list.Add(data1);


            IList values2 = new ArrayList();
            values2.Add(new PropertyValue() { ID = 4, Name = "M" });
            values2.Add(new PropertyValue() { ID = 5, Name = "L" });
            values2.Add(new PropertyValue() { ID = 6, Name = "XL" });
            Data data2 = new Data { Name = "Size", Field = values2 };
            list.Add(data2);

            ksGrid.DataSource = list;

            object ob = ksGrid.Rows[1];
        }
  2. Dess
    Admin
    Dess avatar
    1607 posts

    Posted 13 Aug 2015 Link to this post

    Hello Saeed,

    Thank you for writing.

    When RadListViewElement is bound, its first item is selected by default. It is normal behavior. In the SetContentCore method of your custom cell, you always set the RadListViewElement.DataSource property to the desired collection. I would recommend you to set this property only if it is not already set. In order to deal with the initial selection of the first item, you can set the SelectedIndex property to -1:
    protected override void SetContentCore(object value)
    {
        IList list = (IList)value;

        if (radListElement.DataSource == null)
        {
            radListElement.DataSource = list;
            radListElement.DisplayMember = "Name";
            radListElement.ValueMember = "ID";
            radListElement.SelectedIndex = -1;
        }
    }

    As to the keyboard navigation, note that RadGridView manages user mouse and keyboard input over its rows by GridRowBehavior. Depending on the row type, RadGridView introduces different behaviors. You can override the specific keyboard handling and introduce the desired behavior for navigating through RadListViewElement's items for example. You can refer to the Row behaviors help article which demonstrates how to plug a specific functionality to a specific row behavior. You can follow a similar approach.

    I hope this information helps. Should you have further questions I would be glad to help.

    Regards,
    Dess
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Saeed
    Saeed avatar
    4 posts
    Member since:
    May 2014

    Posted 15 Aug 2015 in reply to Dess Link to this post

    Thanks Dess

    It seems not working again.

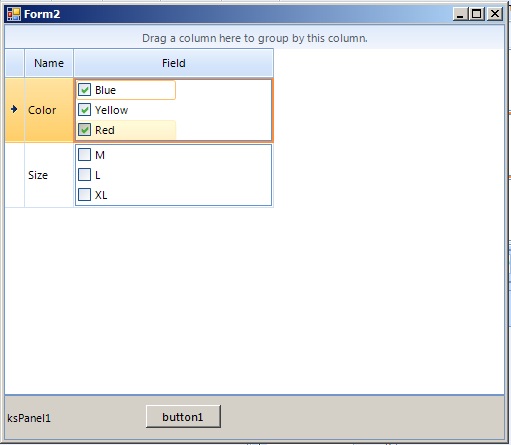

    The highlighted area of the first listitem was removed but the border around it still remains.
    I think there is some problem with rendering, when a first listitem is selected the border around it remains even I select another listitem.





  5. Answer
    Hristo Merdjanov
    Admin
    Hristo Merdjanov avatar
    711 posts

    Posted 17 Aug 2015 Link to this post

    Hi Saeed,

    Thank you for writing back.

    In your custom cell element class, you could subscribe your RadListViewElement object to the VisualItemFormatting event and in the handler set the value of the DrawBorder property to false. Please check my code snippet below:
    private void radListElement_VisualItemFormatting(object sender, ListViewVisualItemEventArgs e)
    {
        BaseListViewVisualItem visualItem = e.VisualItem as BaseListViewVisualItem;
        if (visualItem != null)
        {
             visualItem.DrawBorder = false;
        }
    }

    If you need to you could also perform additional checkings and apply different styling.

    I hope this helps. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo Merdjanov
    Telerik
