How to show all labels without grouping?

4 posts, 0 answers
  1. Eda
    Eda avatar
    3 posts
    Member since:
    Mar 2016

    Posted 07 Mar Link to this post

    Hi. I am having a problem with converting the RadChart that we used earlier to ChartView. I am using this code to generate the LineSeries with DataTable.

    radChart1.Axes.Clear();

               radChart1.BackColor = Color.White;
               radChart1.ShowPanZoom = true;
               Telerik.WinControls.UI.LineSeries ls = new Telerik.WinControls.UI.LineSeries();
               radChart1.Series.Add(ls);
               ls.DataSource = dt;
               ls.ShowLabels = true;
               ls.ValueMember = "Value";
               ls.CategoryMember = "Label";
               ls.CombineMode = Telerik.Charting.ChartSeriesCombineMode.None;

               foreach (DataColumn dc in dt.Columns)
               {
                   if (dc.ColumnName == "LSL" || dc.ColumnName == "USL" || dc.ColumnName == "LWL" || dc.ColumnName == "UWL")
                   {
                       DataTable LSLDt = dt.Copy();
                       LSLDt.Columns.Remove("Value");

                       Telerik.WinControls.UI.LineSeries LSLSeries = new Telerik.WinControls.UI.LineSeries();

                       radChart1.Series.Add(LSLSeries);
                       LSLSeries.DataSource = dt;
                       LSLSeries.ShowLabels = false;
                       LSLSeries.ValueMember = dc.ColumnName;
                       LSLSeries.Name = dc.ColumnName;
                       LSLSeries.CategoryMember = "Label";
                       LSLSeries.CombineMode = Telerik.Charting.ChartSeriesCombineMode.None;

                       if (dc.ColumnName.Contains("SL"))
                       {
                           LSLSeries.BackColor = Color.Red;
                       }
                       else if (dc.ColumnName.Contains("WL"))
                       {
                           LSLSeries.BackColor = Color.Yellow;
                       }
                   }
               }

               //  radChart1.ShowSmartLabels = true;
               radChart1.Axes.Get<Telerik.WinControls.UI.CategoricalAxis>(0).PlotMode = Telerik.Charting.AxisPlotMode.OnTicksPadded;
               radChart1.Axes.Get<Telerik.WinControls.UI.CategoricalAxis>(0).LabelFitMode = Telerik.Charting.AxisLabelFitMode.Rotate;
               radChart1.Axes.Get<Telerik.WinControls.UI.CategoricalAxis>(0).LabelRotationAngle = 270;
               radChart1.Axes.Get<Telerik.WinControls.UI.CategoricalAxis>(0).ShowLabels = true;
               radChart1.Axes.Get<Telerik.WinControls.UI.LinearAxis>(1).ShowLabels = true;

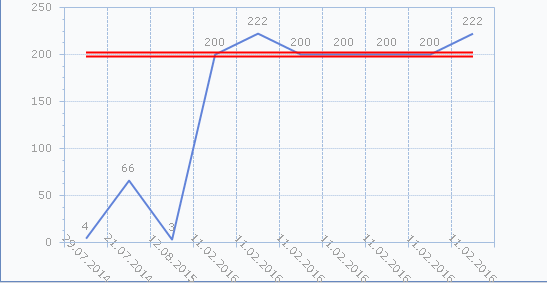

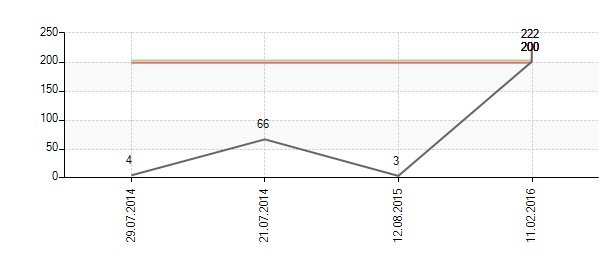

    But I need to show every single detail without grouping the labels. I have attached the way it used to look with RadChart and the new ChartView.

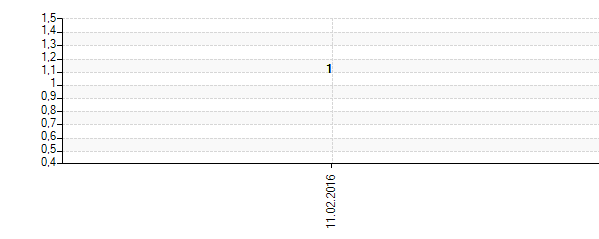

    One of my other problems is that, when there is only one category and one Y value, I want to show a dot. But when I give the DataTable(which has 5 rows, all the values and labels are the same) as a source to LineSeries, nothing is shown. It is also attached as a file below. I'd appreciate it if you can help me with these issues.

  2. Eda
    Eda avatar
    3 posts
    Member since:
    Mar 2016

    Posted 08 Mar Link to this post

    Right now I am doing it so, I am taking the minutes in to count too. I just have one more question, how can I set up the label format, so that it doesn't show the minutes, only dates?



        radChart1.Axes.Clear();

                DateTimeCategoricalAxis ax = new DateTimeCategoricalAxis();

                ax.DateTimeComponent = Telerik.Charting.DateTimeComponent.TimeOfDay;
                ax.LabelFormat = "{0:dd.MM.yyyy}";

                ax.PlotMode = Telerik.Charting.AxisPlotMode.OnTicksPadded;
                ax.LabelFitMode = Telerik.Charting.AxisLabelFitMode.Rotate;
                ax.LabelRotationAngle = 270;
                ax.ShowLabels = true;

                radChart1.BackColor = Color.White;
                radChart1.ShowPanZoom = true;
                Telerik.WinControls.UI.LineSeries ls = new Telerik.WinControls.UI.LineSeries();
                ls.DataSource = dt;
                ls.ShowLabels = true;
                ls.ValueMember = "Value";
                ls.CategoryMember = "Label";
                ls.HorizontalAxis = ax;
                radChart1.Series.Add(ls);


                foreach (DataColumn dc in dt.Columns)
                {
                    if (dc.ColumnName == "LSL" || dc.ColumnName == "USL" || dc.ColumnName == "LWL" || dc.ColumnName == "UWL")
                    {
                        DataTable LSLDt = dt.Copy();
                        LSLDt.Columns.Remove("Value");

                        Telerik.WinControls.UI.LineSeries LSLSeries = new Telerik.WinControls.UI.LineSeries();

                        LSLSeries.DataSource = dt;
                        LSLSeries.ShowLabels = false;
                        LSLSeries.ValueMember = dc.ColumnName;
                        LSLSeries.Name = dc.ColumnName;
                        LSLSeries.CategoryMember = "Label";
                        LSLSeries.HorizontalAxis = ax;
                        radChart1.Series.Add(LSLSeries);

                        if (dc.ColumnName.Contains("SL"))
                        {
                            LSLSeries.BackColor = Color.Red;
                        }
                        else if (dc.ColumnName.Contains("WL"))
                        {
                            LSLSeries.BackColor = Color.Yellow;
                        }
                    }
                }

  3. UI for WinForms is Visual Studio 2017 Ready
  4. Eda
    Eda avatar
    3 posts
    Member since:
    Mar 2016

    Posted 08 Mar Link to this post

    I used LabelFormatProvider so it is OK now.
