How to get a percentage value when using grouping and an aggregator function

2 posts, 1 answers
  1. Jonathan
    Jonathan avatar
    15 posts
    Member since:
    Dec 2014

    Posted 26 Feb 2015 Link to this post

    Hi there,

    I'm using a RadChart to create some bar graphs of the total number of projecs per project type. I'm using a group descriptor to group the data:

    <telerikCharting:SeriesMapping.GroupingSettings>
        <telerikCharting:GroupingSettings ShouldCreateSeriesForLastGroup="True">
            <telerikCharting:GroupingSettings.GroupDescriptors>
                <telerikCharting:ChartGroupDescriptor Member="ProjectType"/>
            </telerikCharting:GroupingSettings.GroupDescriptors>
        </telerikCharting:GroupingSettings>
    </telerikCharting:SeriesMapping.GroupingSettings>

    My item mappings looks like this:

    <telerik:SeriesMapping.ItemMappings>
        <telerik:ItemMapping FieldName="ProjectType" DataPointMember="XCategory" />
        <telerik:ItemMapping FieldName="Name" DataPointMember="YValue" AggregateFunction="Count" />
    </telerik:SeriesMapping.ItemMappings>

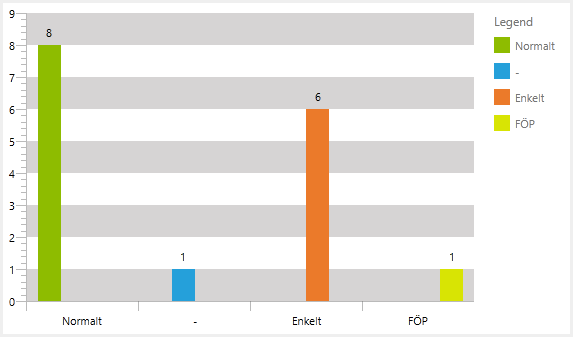

    I'm attaching a screenshot showing what this currently looks like. What I want though, is to show the percentages of each category in addition to the number of projects. I don't know ahead of time how many project types will be included in the data being graphed.

    I appreciate any help I can get with this.

    Thanks,
    Jonathan
  2. Answer
    Peshito
    Admin
    Peshito avatar
    497 posts

    Posted 02 Mar 2015 Link to this post

    Hi Jonathan,

    Simply use the ItemLabelFormat property of the SeriesDefinition like shown below:
    <telerik:RadChart.SeriesMappings>
          <telerik:SeriesMapping>
              <telerik:SeriesMapping.SeriesDefinition>
                  <telerik:BarSeriesDefinition ItemLabelFormat="#DATAITEM.Value %"/>
              </telerik:SeriesMapping.SeriesDefinition>
              <telerik:SeriesMapping.ItemMappings>
                  <telerik:ItemMapping FieldName="Title" DataPointMember="XCategory" />
                  <telerik:ItemMapping FieldName="Value2" DataPointMember="YValue" />
              </telerik:SeriesMapping.ItemMappings>
          </telerik:SeriesMapping>
      </telerik:RadChart.SeriesMappings>
    The above code will just add the percentage sign to the item's value. You can use a custom or standard numeric format expression to further specify the format.

    More about expressions can be found in our Format Expressions help topic.

    Regards,
    Peshito
    Telerik
