How can I make Panorama Background Transparent

4 posts, 0 answers
  1. Mohamed
    Mohamed avatar
    4 posts
    Member since:
    Dec 2011

    Posted 12 Jan 2013 Link to this post

    Hi All ,
    Please I need to ask how to make that tool trasparent becouse i use other background and i need to make my items floating on this background
    thanx
  2. Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 14 Jan 2013 Link to this post

    Hello Mohamed,

    Thank you for your question.

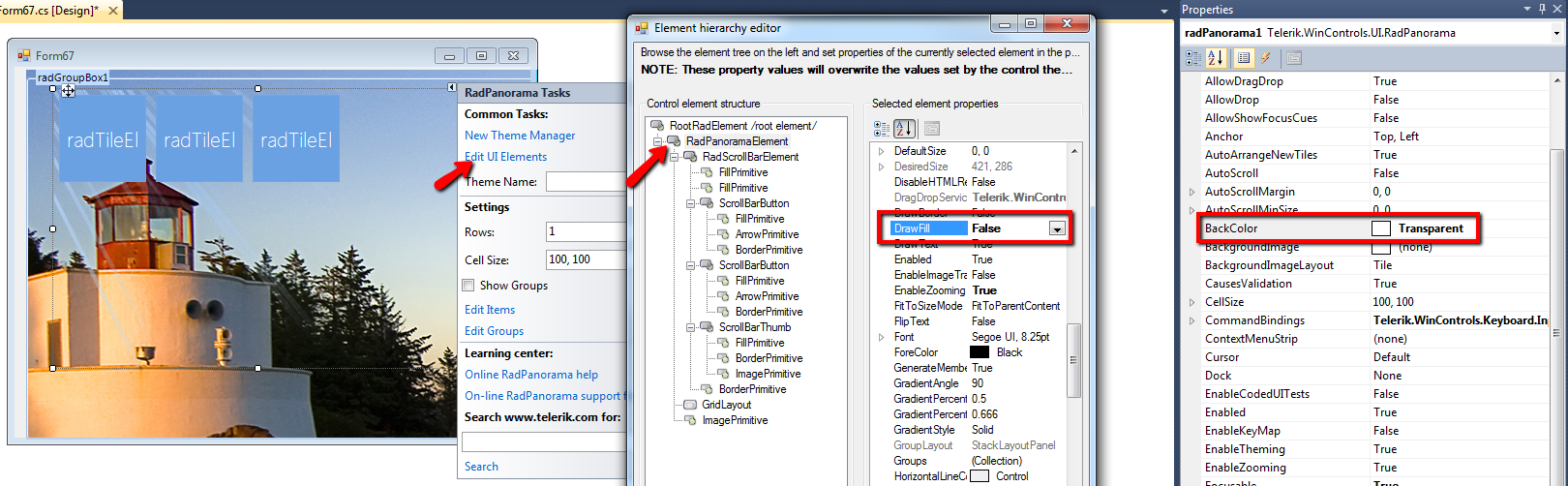

    To make RadPanorama transparent, you need to set its BackColor to Transparent and the DrawFill property of its RadPanoramaElement to false. Please refer to the attachment to see how you can set this at design time.

    Should you have any other questions, do not hesitate to ask.

    Regards,
    Ivan Todorov
    the Telerik team
    Q3'12 SP1 of RadControls for WinForms is out now. See what's new.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Alex
    Alex avatar
    2 posts
    Member since:
    Dec 2014

    Posted 06 Mar 2015 in reply to Ivan Todorov Link to this post

    Hi Ivan,

    This solution does not seem to work with 2015 Q1 WinForms UI RadPanorama and RadTileElement.
    Please advise.
  5. Alex
    Alex avatar
    2 posts
    Member since:
    Dec 2014

    Posted 06 Mar 2015 in reply to Alex Link to this post

    I actually resolved this.

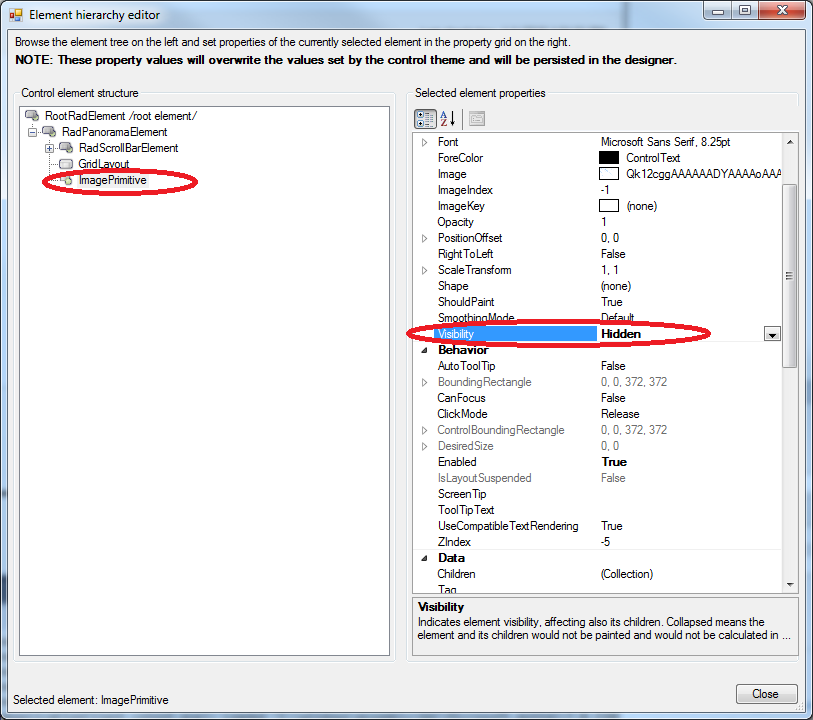

    Here's what I did: on top of what Ivan suggested in his post above, I opened "RadPanorama Tasks" context menu, clicked on "Edit UI Elements" link. Then, in Control Element Structure I selected the "ImagePrimitive" item, then in its properties on the right side set the Visibility property to Hidden (See the attached screenshot).
    This makes the panorama background truly transparent.

    Hope it helps somebody.

    Alex.
