Getting Height of innerControl

20 posts, 1 answers
  1. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 10 Nov 2010 Link to this post

    Hello,

    I meet difficulties to autoresize my Pageview (in explorerBar mode)
    I add several PageviewPage inside, and I would like to get the inner control container height in order to autoresize my page view.

    When Pages are collapsed, I would like to set my pageview's height

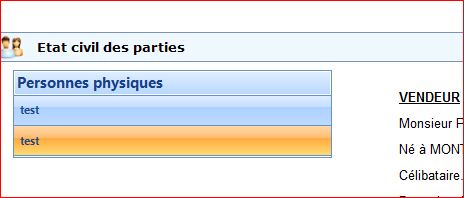

    (see attached picture collapsed.png)

    I put autosize mode of my PageView à true.But it's not autosizing.
    I tried the RadPageViewExplorerBarElement as children[0] of my pageview. But the autosize mode is not the good one too.
    I also tried the RadPageViewContentAreaElement but not working.

    What is the container inside my pageview which contains the RadPageViewPages?
    This container is autoscrolled (my page view is not autoscrolled) and seems autosize.

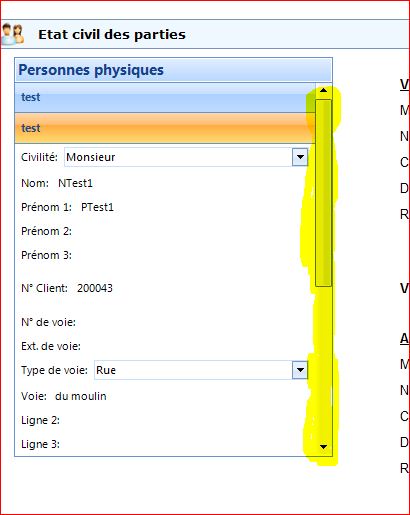

    We can see the vertical scroll of this container on picture container.png (yellow painted).
    What is this container? I really need to get his height.

    As far I know, it's not the pageview, explorerbar, contentArea neither.

    Maybe you know a better way to autosize my pageview following the collapsed and extand event?
    Please let me know.

    Thanks a lot for help.

    Regards




  2. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 11 Nov 2010 Link to this post

    Hi DenisCL,

    Can you try this please:

    + Add a RadPageView to a form.
    + Set the initial height to 150
    + Add 4 RadPagesViewPages
    + Add the following code:

    Private Sub RadPageView1_PageExpanded(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.RadPageViewEventArgs) Handles RadPageView1.PageExpanded
        Me.RadPageView1.Height = 435
    End Sub
    Private Sub RadPageView1_PageCollapsed(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.RadPageViewEventArgs) Handles RadPageView1.PageCollapsed
        Dim opened As Boolean
        For Each page As RadPageViewPage In Me.RadPageView1.Pages
            If page.IsContentVisible And Not Object.Equals(page, e.Page) Then
                opened = True
                Exit For
            End If
        Next
        If Not opened Then
            Me.RadPageView1.Height = 150
        End If
    End Sub


    Let me know if that helps, or if you need more information

    Richard
  3. UI for WinForms is Visual Studio 2017 Ready
  4. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 12 Nov 2010 Link to this post

    Hello Richard,

    I tried your example and here is the result:

     - The collapsed page is good. But this value 150, it's the 4 pages Headers's heights + the pageview header right?
    Is there a way to get this programatically?

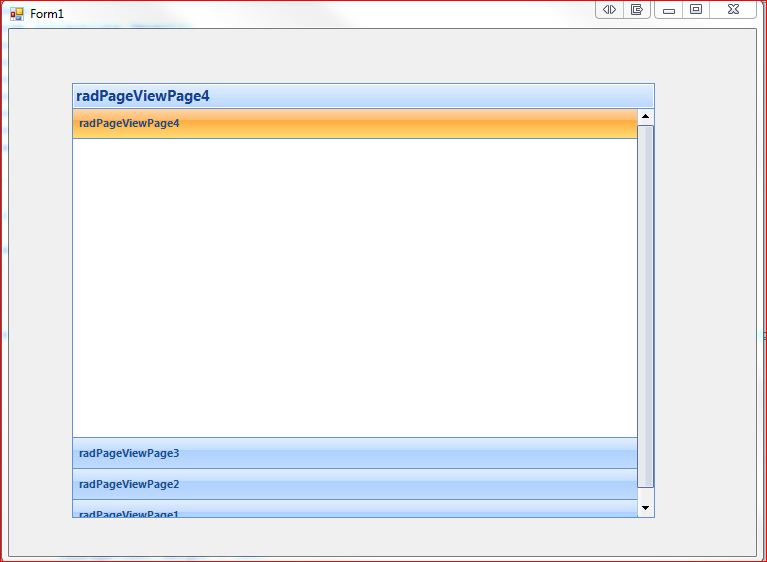

     - when I expand one Tab, the pageview expand too but the 435 for height seems too little. The scroll bar appears (cf expanded.jpg)
     - I tried to put 440, too little but 450 there's a wierd behavior: When I click to the last page for expanding it, the others pages disappear
     - Another point: when I put a breakpoint on my event collapsed. If I reduce the opened panel, the page has his IsContentVisible at true even if i've just collapsed it. I'm of course not on Collapsing event. (cf wierdBehavior.jpg)

    Actually since I would like to let user expand all panels, I need my page view to always follow my pages height. That's why I was asking for Header's height for calculating each time it's collapsed or expanded.

    here is my code:
    private void container_PageCollapsed(object sender, RadPageViewEventArgs e)
    {
        container.Size = new Size(container.Width, container.Height - e.Page.Height);
        this.Size = new Size(this.Width, container.Height);
    }

    private void container_PageExpanded(object sender, RadPageViewEventArgs e)
    {
        container.Size = new Size(container.Width, container.Height + e.Page.Height);
        this.Size = new Size(this.Width, container.Height);
    }

    When form is loaded I resize my pageview for having the initial good size:

    public void ResizeContainer()
           {
               container.Size = new Size(container.Width, (container.Controls.Count * _iCollapsedPageHeight));
               this.Size = new Size(this.Width, container.Height);
           }

    _CollapsedPageHeight is actually a constant value I tried to find (collapsedPageHeight)

    Finally, can you try to reprduce the weird behavior listed before?
    And what are pages default header height and pageview header height? Can I get it programmatically?

    Thanks for help
    Best Regards
  5. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 12 Nov 2010 Link to this post

    Hi DenisCL

    You can get the height of each of the pages (the header section) using:
    Me.RadPageView1.ViewElement.Items(0).Size.Height

    You can get the height of the titlebar using:
    Me.RadPageView1.RootElement.Children(0).Children(1).Size.Height

    I'd suggest the code below. It's in explorerbar mode but acts like a cross between explorer bar and outlook, so each page can be expanded, but will only allow one page to be expanded at a time so as to maintain a maximum height (the height of all the colapsed items, plus the content of the expanded item

    Imports Telerik.WinControls.UI
    Imports Telerik.WinControls

    Public Class Form1

        Private m_ColapsedHeight As Integer

        Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

            Me.RadPageView1.ViewMode = PageViewMode.ExplorerBar
            m_ColapsedHeight = (Me.RadPageView1.ViewElement.Items(0).Size.Height * Me.RadPageView1.Pages.Count) + Me.RadPageView1.RootElement.Children(0).Children(1).Size.Height
            Me.RadPageView1.Height = m_ColapsedHeight
        End Sub


        Private Sub RadPageView1_PageExpanded(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.RadPageViewEventArgs) Handles RadPageView1.PageExpanded
            For Each page As RadPageViewPage In Me.RadPageView1.Pages
                If Not Object.Equals(e.Page, page) Then
                    page.IsContentVisible = False
                End If
            Next
            Me.RadPageView1.Height = m_ColapsedHeight + e.Page.PageLength
        End Sub

        Private Sub RadPageView1_PageCollapsed(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.RadPageViewEventArgs) Handles RadPageView1.PageCollapsed
            Dim opened As Boolean
            For Each page As RadPageViewPage In Me.RadPageView1.Pages
                If page.IsContentVisible And Not Object.Equals(page, e.Page) Then
                    opened = True
                    Exit For
                End If
            Next
            If Not opened Then
                Me.RadPageView1.Height = m_ColapsedHeight
            End If
        End Sub
    End Class

    hope that helps, but if you need more info, just let me know.

    Richard
  6. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 12 Nov 2010 Link to this post

    Hello,

    Thee seems to be an issue with the above as the inner content area is reduced after the second expand/collapse. I will get back to you shortly on this.

    Richard
  7. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 12 Nov 2010 Link to this post

    Hello,

    This isn't very elegant but it does work.
    Imports Telerik.WinControls.UI
    Imports Telerik.WinControls

    Public Class Form1

        Private m_ColapsedHeight As Integer

        Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

            Me.RadPageView1.ViewMode = PageViewMode.ExplorerBar
            m_ColapsedHeight = (Me.RadPageView1.ViewElement.Items(0).Size.Height * Me.RadPageView1.Pages.Count) + Me.RadPageView1.RootElement.Children(0).Children(1).Size.Height
            Me.RadPageView1.Height = m_ColapsedHeight

            For Each page As RadPageViewPage In Me.RadPageView1.Pages
                AddHandler page.VisibleChanged, AddressOf PageResize
            Next
        End Sub

        Private Sub RadPageView1_PageExpanded(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.RadPageViewEventArgs) Handles RadPageView1.PageExpanded
            For Each page As RadPageViewPage In Me.RadPageView1.Pages
                If Not Object.Equals(e.Page, page) Then
                    page.IsContentVisible = False
                End If
            Next
        End Sub

        Private Sub RadPageView1_PageCollapsed(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.RadPageViewEventArgs) Handles RadPageView1.PageCollapsed
            Dim opened As Boolean
            For Each page As RadPageViewPage In Me.RadPageView1.Pages
                If page.IsContentVisible And Not Object.Equals(page, e.Page) Then
                    opened = True
                    Exit For
                End If
            Next
            If Not opened Then
                Me.RadPageView1.Height = m_ColapsedHeight
            End If
        End Sub

        Private Sub PageResize(ByVal sender As Object, ByVal e As EventArgs)
            For Each page As RadPageViewPage In Me.RadPageView1.Pages
                page.Height = 294
                page.Width = 274
                If page.IsContentVisible Then
                    Me.RadPageView1.Height = m_ColapsedHeight + page.Height
                End If
            Next
        End Sub


    End Class

    Let me know if you need more help
    Richard
  8. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 15 Nov 2010 Link to this post

    Hello Richard,

    I tried to apply your code in my program, but I have some results not good.
    Actually, the PageView1.ViewElement.Items[0].Size.Height as PageView1.RootElement.Children[0].Children[1].Size.Height are both at 0.

    Just before, I add my PageViewPages with that code:

    RadPageViewPage tabPage = new RadPageViewPage();
    tabPage.Margin = new Padding(0);
    tabPage.Padding = new Padding(0);
    tabPage.Size = new Size(this.container.Width, tabPage.Height);
    tabPage.AutoSize = true;
    tabPage.AutoSizeMode = AutoSizeMode.GrowAndShrink;
    tabPage.Text = "test";
    tabPage.Controls.Add(pControl); //pControl is a UserControl
    this.PageView1.Pages.Add(tabPage);

    Do I have to do something special for having these Height values?

    Thanks for help

  9. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 15 Nov 2010 Link to this post

    Hello,

    did you try the example above exactly as-is? It has 4 pages, and should re-size as you want it.
    If it doesn't please could you post a screenshot of the issue that you are experiencing?

    thanks
    Richard
  10. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 15 Nov 2010 Link to this post

    Here is the code I'm using in a new project, in order to use only your code.

    public partial class Form1 : Form
       {
           private int _iTotalCollapsedHeight;

           public Form1()
           {
               InitializeComponent();
           }

           private void Form1_Load(object sender, EventArgs e)
           {
               radPageView1.ViewMode = PageViewMode.ExplorerBar;
               _iTotalCollapsedHeight = (radPageView1.ViewElement.Items[0].Size.Height * radPageView1.Pages.Count) + radPageView1.RootElement.Children[0].Children[1].Size.Height;
               radPageView1.Size = new Size(radPageView1.Width, _iTotalCollapsedHeight);

               foreach (RadPageViewPage page in radPageView1.Pages)
               {
                   page.VisibleChanged += new EventHandler(PageResize);
               }
           }

           void PageResize(object sender, EventArgs e)
           {
               radPageView1.Size = new Size(radPageView1.Width, _iTotalCollapsedHeight);
               foreach(RadPageViewPage page in radPageView1.Pages)
               {
                   page.Size = new Size(274, 294);
                   if (page.IsContentVisible)
                   {
                       radPageView1.Size = new Size(radPageView1.Width, radPageView1.Height + page.Height);
                   }
               }
           }
       }

    I delete collapse and extand events because i'm my code, several pages can be opened. The total height has to be calculated then.

    This code is working, but if you expand more than 1 page, you can see the scroll bar appearing.
    I don't know what this Delta comes from.

    Do you have any information about that, in order to calculator the right height?

    Thanks for help.



  11. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 15 Nov 2010 Link to this post

    HI,

    If you can open more than one page at a time, then your control could expand to a size much larger than the form, or the screen. I developed the above for you so that you would have a maximum known height.

    My understanding is that you want to have a PageView that will expand and shrink dynamically. Having an unknown number of pages open when it expands may cause issues.

    Is this what you are trying to do? I.e. you need the control to expand no matter how many pages are open?

    thanks

    Richard
  12. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 16 Nov 2010 Link to this post

    That's it.

    I have an unknowns number of pages. It can be 1,2 and sometimes maybe 10.

    Each pages contains a control, so each page is autosized. But all controls added has the same Size.

    If you expand 2 pages, the height of pageview  should be the height of the 2 pages extanded + the 2 headers of pages + the pageview header.
     It's apparently working with the code I last gave to you. But actually, there this little delta added, and i'm not sure where it comes from...

    When I add by programming 2 tab pages with pageview.Pages.Add(), just after the radPageView1.ViewElement.Items[0].Size.Height =0.
    after adding with Pages.Add(), should I do a special refresh of container?

    Using a new project with the pages added directly with designer works..

    I'm missing something with that.
  13. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 16 Nov 2010 Link to this post

    Hi,

    The last change required to rid the control of the scrollbar is really small. just replace the Resize method with this one. It just adds on some padding which should give you your final solution.

    void PageResize(object sender, EventArgs e)
    {
        radPageView1.Size = new Size(radPageView1.Width, _iTotalCollapsedHeight);
        foreach (RadPageViewPage page in radPageView1.Pages)
        {
            page.Size = new Size(274, 294);
            if (page.IsContentVisible)
            {
                radPageView1.Size = new Size(radPageView1.Width, radPageView1.Height + page.Height + 5);
            }
        }
    }

    hope this helps. If you find that you have enough with this, please remember to mark as answer. Otherwise let me know if you need anything else.

    Regards,

    Richard
  14. Answer
    Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 16 Nov 2010 Link to this post

    One last thing. You can actually remove resetting the Page.Size now as you are not using the other events.
    this leaves the resize method as
    void PageResize(object sender, EventArgs e)
    {
        radPageView1.Size = new Size(radPageView1.Width, _iTotalCollapsedHeight);
        foreach (RadPageViewPage page in radPageView1.Pages)
        {
            if (page.IsContentVisible)
            {
                radPageView1.Size = new Size(radPageView1.Width, radPageView1.Height + page.Height + 5);
            }
        }
    }

    Best wishes
    Richard
  15. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 16 Nov 2010 Link to this post

    Hello DenisCL,

    Thank you for writing and please excuse me for the delayed reply, I was trying to find the best solution for your case.

    Currently, the "delta" is coming from the borders of the control. It is possible to completely remove them by using the following code:
    radPageView1.ViewElement.BorderWidth = 0;

    Please let me know if this works for you.

    I am looking forward to your reply.

    Best wishes,
    Stefan
    the Telerik team
    See What's New in RadControls for WinForms in Q3 2010 on Wednesday, November 17, 11am Eastern Time: Register here>>
  16. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 16 Nov 2010 Link to this post

    Thanks for your time.

    Actually the + 5 padding is better than this last one.

    Indeed,  putting the border size at 0 make my container without border. It's not really esthétic.

    I checked with the same viewElement.Border on pages, but it doesn't exists.

    If you have a solution...

    Best regards
  17. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 16 Nov 2010 Link to this post

    Hello DennisCL,

    I'm glad that this is working for you. If you are happy with this, then please mark as answer. Is there something else that you need to be happy with this solution?

    thanks
    richard
  18. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 17 Nov 2010 Link to this post

    Hello Richard,

    It's ok right now. I'll use this code, if I meet some troubles with it in future, i'll come back to you.

    Thanks for your help.

    Best regards
  19. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 17 Nov 2010 Link to this post

    Hi DenisCL,

    Glad that has worked for you, and yes, please let me know if there's anything else
    All the best
    Richard
  20. DenisCL
    DenisCL avatar
    69 posts
    Member since:
    Dec 2009

    Posted 15 Apr 2011 Link to this post

    Hello,

    I come back to you with this post in order to get some information on a little refresh problem.

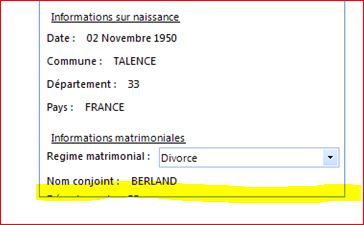

    I attached a screenshot to this post. As you can see, when I use PageView and the code we talked about before for getting the right height (depending of pages collapsed or extanded), I have this little refreshing problem occuring.

    It wasn't a problem at the begining but lately, we got some clients support on "item hidden".

    Do you have any solution to display it correctly?
    FYI, we used a little delta (+5) to get the final right height of pageview.

    It depends of the scrolling. if scrolling with arrow scroll button (step by step), there is not refresh problem.
    if I scroll with the mouse, faster, it appears.

    Thanks a lot

    Best regards
  21. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 15 Apr 2011 Link to this post

    Hello,

    Please could you post a full exmaple that replicates the issue which will assist me to look into this for you?
    Thanks
    Richard
Back to Top
UI for WinForms is Visual Studio 2017 Ready
