Databinding List<Generics>

3 posts, 1 answers
  1. Jose David Escobar Ardila
    Jose David Escobar Ardila avatar
    3 posts
    Member since:
    Apr 2010

    Posted 10 Aug 2010 Link to this post

    SiteHello, I have a problem when I assign a generic list to the chart object,
    this is my class

    public class cs_itemspedido
        {
            private string referencia;
            private int cantidad;
            private string nombre;
            private double pesoxref;
            private double valor;
            private int osa;

            public int Osa
            {
                get { return osa; }
                set { osa = value; }
            }
            public double Valor
            {
                get { return valor; }
                set { valor = value; }
            }
            public double PesoXRef
            {
                get { return pesoxref; }
                set { pesoxref = value; }
            }

            public string Nombre
            {
                get { return nombre; }
                set { nombre = value; }
            }

            public string Referencia
            {
                get { return referencia; }
                set { referencia = value; }
            }
            public int Cantidad
            {
                get { return cantidad; }
                set { cantidad = value; }
            }
            /// <summary>
            /// Peso Total
            /// </summary>
            public double Peso_Total
            {
                get { return (cantidad * pesoxref); }
            }
            /// <summary>
            /// Valor total X item
            /// </summary>
            public double Valor_Total
            {
                get { return (cantidad * valor); }
            }
    }


    I just want to show the X axis the value of the property (Referencia) and the axle and (Peso_Total) value.

    I made this site what it says but I error out, series.count == 0

    thanks
  2. Jose David Escobar Ardila
    Jose David Escobar Ardila avatar
    3 posts
    Member since:
    Apr 2010

    Posted 10 Aug 2010 Link to this post

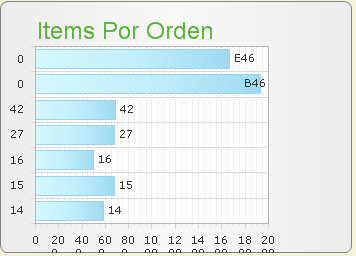

    Hi, I need to define the data type is the label example: string, or number that shows me everything I have as number and string data and instead are displaying it shows me 0
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Answer
    Giuseppe
    Admin
    Giuseppe avatar
    2363 posts

    Posted 12 Aug 2010 Link to this post

    Hello Jose David Escobar Ardila,

    Attached is a runnable sample application that demonstrates the approach from the help topic.

    Note, that if you did not use VS Toolbox to drag&drop chart control to your project but you instantiated it manually, you will need to actually create the ChartSeries as well:

    //ChartSeries series = new ChartSeries();
    //radChart1.Series.Add(series);
    radChart1.Series[0].DataYColumn = "QuantityInStock";
    radChart1.PlotArea.XAxis.DataLabelsColumn = "Name";
    radChart1.DataSource = products;
    radChart1.DataBind();

    As for your second question -- we are a bit unsure what exactly are you looking for. Please elaborate a bit more if the problem still persists so we can advise you properly how to proceed.
