Custom node update of text

5 posts, 1 answers
  1. Thomas
    Thomas avatar
    15 posts
    Member since:
    Oct 2012

    Posted 23 Apr 2015 Link to this post

    Hi,

    I'm using a custom node to display a button for some of the nodes in my treeview. The custom node consists of just a textElement and a buttonElement, they are placed in a StackLayoutElement.

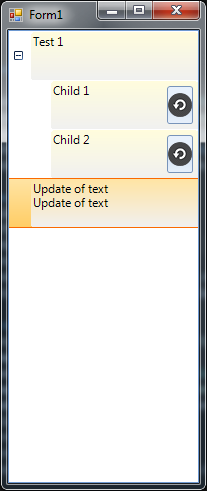

    When updating the nodes text property in the editor it afterwards appears two times. See the attached file(to make it more it clear I've set textElement.StretchVertically = false so that it can clearly be seen). It's like both the node text and the virtual text element is visible. Pointers to how I resolve this would be much appreciated :D.



    /Thomas

  2. Answer
    Dess
    Admin
    Dess avatar
    1601 posts

    Posted 27 Apr 2015 Link to this post

    Hello Thomas,

    Thank you for writing.

    Depending on the TreeViewElement.EditMode, when editing a certain node either the RadTreeNode.Text or RadTreeNode.Value will be updated. In order to avoid duplicate text when using custom nodes, you should set the TreeNodeContentElement.Text property to empty string in the TreeNodeContentElement.Synchronize method. Here is a sample code snippet:
    public Form1()
    {
        InitializeComponent();
        this.radTreeView1.CreateNodeElement += radTreeView1_CreateNodeElement;

        for (int i = 0; i < 5; i++)
        {
            RadTreeNode node = new RadTreeNode();
            node.Text = "Parent" + i;
            for (int j = 0; j < 3; j++)
            {
                RadTreeNode childNode = new RadTreeNode();
                childNode.Text = "Child" + i;
                node.Nodes.Add(childNode);
            }
            this.radTreeView1.Nodes.Add(node);
        }

        this.radTreeView1.ExpandAll();
        this.radTreeView1.AllowEdit = true;

        this.radTreeView1.TreeViewElement.EditMode = TreeNodeEditMode.Text;
    }

    private void radTreeView1_CreateNodeElement(object sender, Telerik.WinControls.UI.CreateTreeNodeElementEventArgs e)
    {
        if (e.Node.Level > 0)
        {
            e.NodeElement = new ChildTreeNodeElement();
        }
        else
        {
            e.NodeElement = new ParentTreeNodeElement();
        }
    }

    public class ParentTreeNodeElement : TreeNodeElement
    {
        protected override TreeNodeContentElement CreateContentElement()
        {
            return new TreeNodeContentElement();
        }

        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(TreeNodeElement);
            }
        }

        public override bool IsCompatible(RadTreeNode data, object context)
        {
            return data.Level == 0;
        }
    }

    public class ChildTreeNodeElement : TreeNodeElement
    {
        protected override TreeNodeContentElement CreateContentElement()
        {
            return new ChildContentElement();
        }

        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(TreeNodeElement);
            }
        }

        public override bool IsCompatible(RadTreeNode data, object context)
        {
            return data.Level > 1;
        }
    }

    class ChildContentElement : TreeNodeContentElement
    {
        StackLayoutElement nodeContentContainer;
        LightVisualElement textElement;
        RadButtonElement buttonElement;

        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(TreeNodeContentElement);
            }
        }

        public override void Synchronize()
        {
            TreeNodeElement treeNodeElement = this.NodeElement;
            RadTreeNode node = treeNodeElement.Data;
            this.buttonElement.Text = node.Text;
            this.textElement.Text = node.Text;
            this.Text = string.Empty;
        }

        protected override void CreateChildElements()
        {
            nodeContentContainer = new StackLayoutElement();
            nodeContentContainer.Orientation = Orientation.Horizontal;
            nodeContentContainer.StretchHorizontally = true;
            nodeContentContainer.StretchVertically = false;

            textElement = new LightVisualElement();
            textElement.ShouldHandleMouseInput = false;
            textElement.NotifyParentOnMouseInput = true;
            textElement.StretchVertically = false;
            this.nodeContentContainer.Children.Add(textElement);

            buttonElement = new RadButtonElement();

            buttonElement.Click += buttonElement_Click;
            buttonElement.StretchVertically = false;
            this.nodeContentContainer.Children.Add(buttonElement);

            this.Children.Add(nodeContentContainer);
        }

        private void buttonElement_Click(object sender, EventArgs e)
        {
            RadMessageBox.Show("Clicked");
        }
    }

    I hope this information helps. Should you have further questions, I would be glad to help.

    Regards,
    Dess
    Telerik


    See What's Next in App Development. Register for TelerikNEXT.


  3. UI for WinForms is Visual Studio 2017 Ready
  4. Thomas
    Thomas avatar
    15 posts
    Member since:
    Oct 2012

    Posted 29 Apr 2015 in reply to Dess Link to this post

    Thanks you Dess!
  5. Thomas
    Thomas avatar
    15 posts
    Member since:
    Oct 2012

    Posted 07 May 2015 in reply to Thomas Link to this post

    Hi again,

    In the provided example when clicking the button on an already selected node, the node enters edit mode. How can that be avoided?

    I've tried with

    buttonElement.NotifyParentOnMouseInput = false;

    Any help would be much appreciated.

    /Thomas

  6. Dess
    Admin
    Dess avatar
    1601 posts

    Posted 11 May 2015 Link to this post

    Hello Thomas,

    Thank you for writing back.

    In order to avoid entering edit mode when it is not necessary according to your requirement, you can use the RadTreeView.Editing event and cancel it by setting the TreeNodeEditingEventArgs.Cancel argument to true.

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Telerik
