Changing horizontal scroll range on Timeline View

9 posts, 1 answers
  1. Peerapong
    Peerapong avatar
    5 posts
    Member since:
    Sep 2013

    Posted 17 Aug 2015 Link to this post

    My problem is occured at RadScheduler control on Timeline View mode about scrolling.

    Follow my attach image, when I click at number 1 view'll change 1 scale (Ex. 1 hour).

    If I click at number 2 I'll got same result with number 1.

    My question is how I change scroll range at number 2 (Ex. view move forward to 4 hour per click)



    Thank you.

  2. Answer
    Hristo
    Admin
    Hristo avatar
    716 posts

    Posted 18 Aug 2015 Link to this post

    Hi Peerapong,

    Thank you for writing.

    In order to achieve this task, you would need to access the NavigationElement object of your SchedulerTimelineViewElement and modify the value of the LargeChange property. Please check my code snippet below:
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();

            this.Load += Form1_Load;
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            this.radScheduler1.ActiveViewType = Telerik.WinControls.UI.SchedulerViewType.Timeline;
            SchedulerTimelineView schedulerTimelineView = this.radScheduler1.GetTimelineView();
            schedulerTimelineView.ShowTimescale(Timescales.Hours);

            SchedulerTimelineViewElement viewElement = (SchedulerTimelineViewElement)this.radScheduler1.ViewElement;
            viewElement.NavigationElement.SmallChange = 4;
            viewElement.NavigationElement.LargeChange = 4;
            viewElement.NavigationElement.RadPropertyChanging += NavigationElement_RadPropertyChanging;
        }

        private void NavigationElement_RadPropertyChanging(object sender, Telerik.WinControls.RadPropertyChangingEventArgs args)
        {
            if (args.Property.Name == "SmallChange" || args.Property.Name == "LargeChange")
            {
                if ((int)args.NewValue < (int)args.OldValue)
                {
                    args.Cancel = true;
                }
            }
        }
    }

    Additional information on working with the timeline view, you can find in the following documentation article: Timeline View.

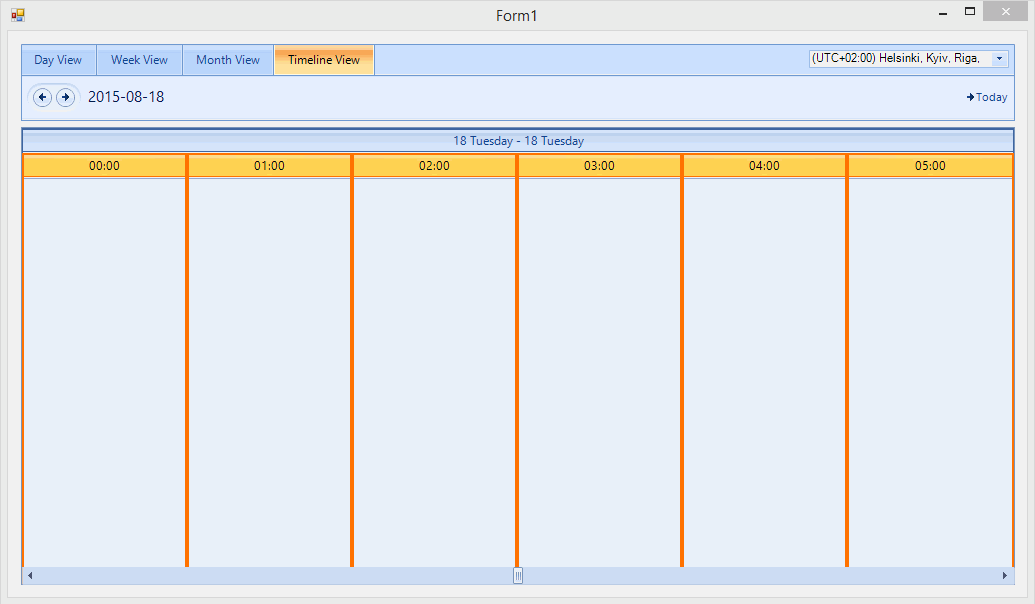

    I am also sending you a gif file showing the result on my end.

    I hope this helps. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo Merdjanov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Peerapong
    Peerapong avatar
    5 posts
    Member since:
    Sep 2013

    Posted 19 Aug 2015 Link to this post

    Thank you very much. but my scheduler add resources too

    I'm try to comment resource code adding, I found your code is working well

    What I should do about resource adding?

    Example code is here.



    //  Add resource to collection.
    int iColIdx = 0;
    SchedulerResourceCollection srcInst = new SchedulerResourceCollection();
    radSchdView.Resources.BeginUpdate();
    for(int iIdx=0; iIdx < 20; iIdx++){
        Resource    resource    = new Resource("1234", "3333");
        resource.Color          = G.BG_COL[iColIdx];
        srcInst.Add(resource);
        iColIdx++;
        if(iColIdx > (G.BG_COL.Length - 1)) iColIdx = 0;
    }
    //  Set resources to scheduler.
    SchedulerBindingDataSource  sbd = new SchedulerBindingDataSource();
    ResourceMappingInfo         rmi = new ResourceMappingInfo();
    rmi.Id      = "Id";
    rmi.Name        = "Name";
    rmi.Color       = "Color";
    rmi.Visible     = "Visible";
    sbd.ResourceProvider.Mapping    = rmi;
    sbd.ResourceProvider.DataSource = srcInst;
    radSchdView.DataSource          = sbd;
    radSchdView.Resources.EndUpdate();
    radSchdView.GroupType   = GroupType.Resource;

    schTlve.Header.LayoutUpdated    += new EventHandler(UpdateSchedulerHeader);
    schTlve.NavigationElement.SmallChange = 5;
    schTlve.NavigationElement.LargeChange = 10;
    schTlve.NavigationElement.RadPropertyChanging   += NavigationElement_RadPropertyChanging;

  5. Hristo
    Admin
    Hristo avatar
    716 posts

    Posted 21 Aug 2015 Link to this post

    Hi Peerapong,

    Thank you for writing back.

    If I understand correctly, you would like to add resources to your RadScheduler. Please refer to the following documentation article, providing detailed information and examples: Working with Resources.

    I hope this information is useful. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo Merdjanov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  6. Peerapong
    Peerapong avatar
    5 posts
    Member since:
    Sep 2013

    Posted 22 Aug 2015 Link to this post

    Oh sorry, Really I mean...

    after I add resource to scheduler after form load event, I found that RadPropertyChanging event doesn't work

    (RadPropertyChanging is not fire)

    so I still have a problem.



    Thank you for your reply.

  7. Hristo
    Admin
    Hristo avatar
    716 posts

    Posted 26 Aug 2015 Link to this post

    Hi Peerapong,

    Thank you for writing back.

    I am not able to observe issues with the horizontal scrolling of RadScheduler ​even after I am adding resources at run time.

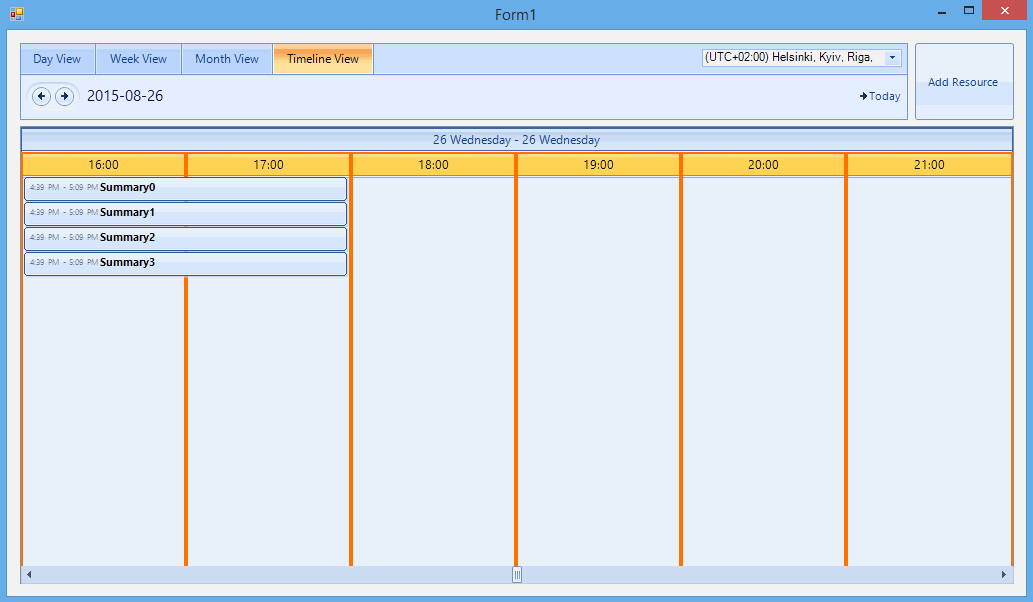

    Please find attached my sample project as well as a gif file showing the result on my end. If you are still experiencing issues please get back to me with additional information of your current set up.

    I hope this helps. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo Merdjanov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  8. Peerapong
    Peerapong avatar
    5 posts
    Member since:
    Sep 2013

    Posted 30 Aug 2015 Link to this post

    Oh sorry, I misunderstand about resource may be I mean is grouping by resource

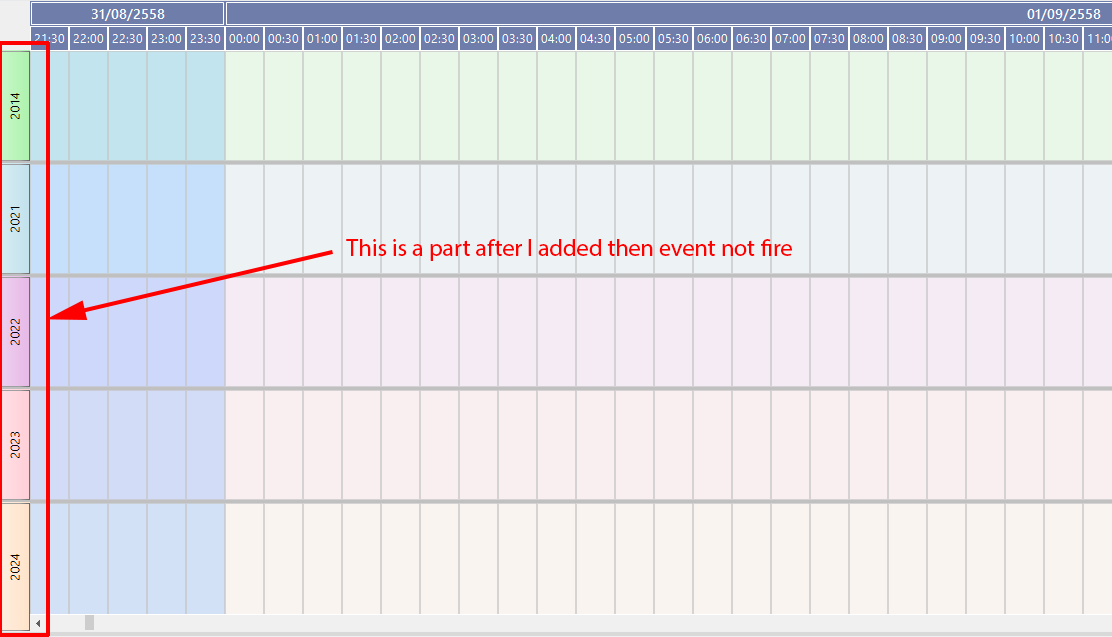

    follow attachment picture is a part which I added then event not fired properly.

  9. Hristo
    Admin
    Hristo avatar
    716 posts

    Posted 31 Aug 2015 Link to this post

    Hello Peerapong,

    Thank you for writing back.

    When RadScheduler is grouped by resources it does not expose its horizontal scroll bar. If you would still like to modify its SmallChange and LargeChange properties, you would need to use reflection. Please see my code snippet below:
    TimelineGroupingByResourcesElement viewElement = (TimelineGroupingByResourcesElement)this.radScheduler1.ViewElement;
    FieldInfo fi = ((TimelineScrollNavigationElement)viewElement.Children.Last().Children[2]).GetType().GetField("hScrollBar", BindingFlags.NonPublic | BindingFlags.Instance);
    RadScrollBarElement scrollbar = fi.GetValue(((TimelineScrollNavigationElement)viewElement.Children.Last().Children[2])) as RadScrollBarElement;
    if (scrollbar != null)
    {
        scrollbar.LargeChange = 4;
        scrollbar.SmallChange = 4;
    }

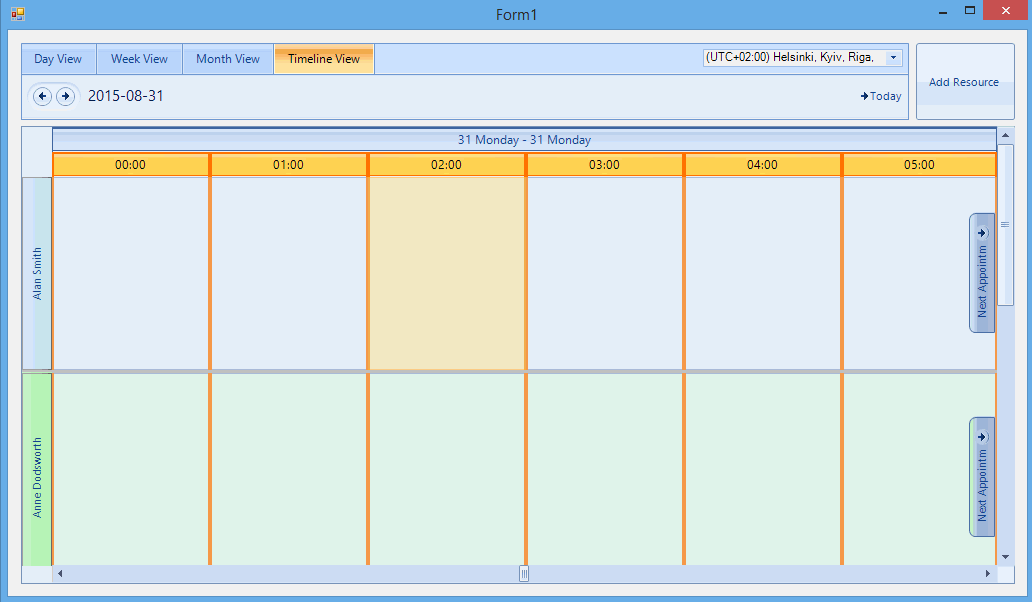

    I am also sending you a gif file showing the result on my end.

    I hope this helps. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo Merdjanov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  10. Peerapong
    Peerapong avatar
    5 posts
    Member since:
    Sep 2013

    Posted 31 Aug 2015 Link to this post

    With your code snippet. Finally my problem is resolved now.

    Thank you very much ^^
