    Hi,

    I've used your demo solution to understand how cell border color errors works.

    I've found a bug if you populate your gridview with enough data to have a vertical scrollbar.

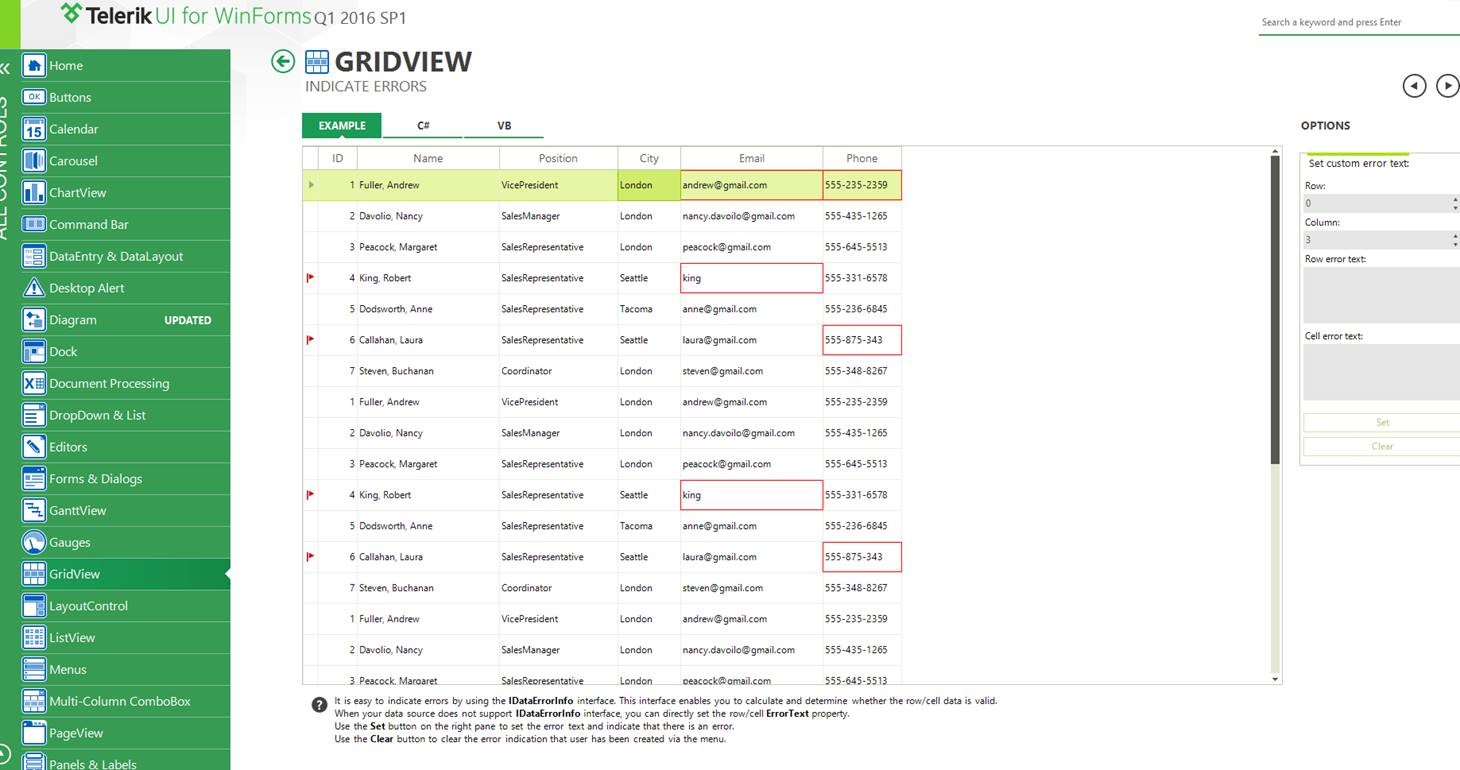

    When you scroll down enough to hide first rows, when you scroll up to see the rows, it seems there's a glitch on some cells like you see in the screenshot.

    Regards

  2. Dimitar
    Admin
    Dimitar avatar
    1415 posts

    Posted 08 Jun Link to this post

    Hello Nermond,

    Thank you for writing.

    I was able to reproduce the observed behavior. It is caused because not all changed styles are reset in the CellFormatting event. To solve this you need to add the following code:
    cell.ResetValue(LightVisualElement.BorderBottomColorProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderTopColorProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderLeftColorProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderRightColorProperty, ValueResetFlags.Local);

    cell.ResetValue(LightVisualElement.BorderBottomShadowColorProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderTopShadowColorProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderLeftShadowColorProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderRightShadowColorProperty, ValueResetFlags.Local);

    cell.ResetValue(LightVisualElement.BorderBottomWidthProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderTopWidthProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderLeftWidthProperty, ValueResetFlags.Local);
    cell.ResetValue(LightVisualElement.BorderRightWidthProperty, ValueResetFlags.Local);

    Let me know if I can assist you further.

    Regards,
    Dimitar
    Telerik
    Check out the Windows Forms project converter, which aids the conversion process from standard Windows Forms applications written in C# or VB to Telerik UI for WinForms.For more information check out this blog post and share your thoughts.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. QuizzBox
    QuizzBox avatar
    46 posts
    Member since:
    Jan 2011

    Posted 09 Jun in reply to Dimitar Link to this post

    Works, thanks :)
