Backimage without bottom of opacity

[YING JANG LIN]

Hi,

Who can help me.
I don't want image at background of bottom of carousel have fade to opacity.

Thanks

[Peter]

Hi YING JANG LIN,

Thank you for contacting us.

You should set RadCarousel's ItemReflectionPercentage to 0. More information about RadCarousel you can read here. Hope this helps.


Greetings,
Peter
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[YING JANG LIN]

Hi,

I want background image of carousel whthout opacity at bottom of backimage.

The ItemReflectionPercentage that's not for background image ,just for item image.

Thanks

Hope anybody can help me

[Peter]

Hi YING JANG LIN,

Thanks for getting back.

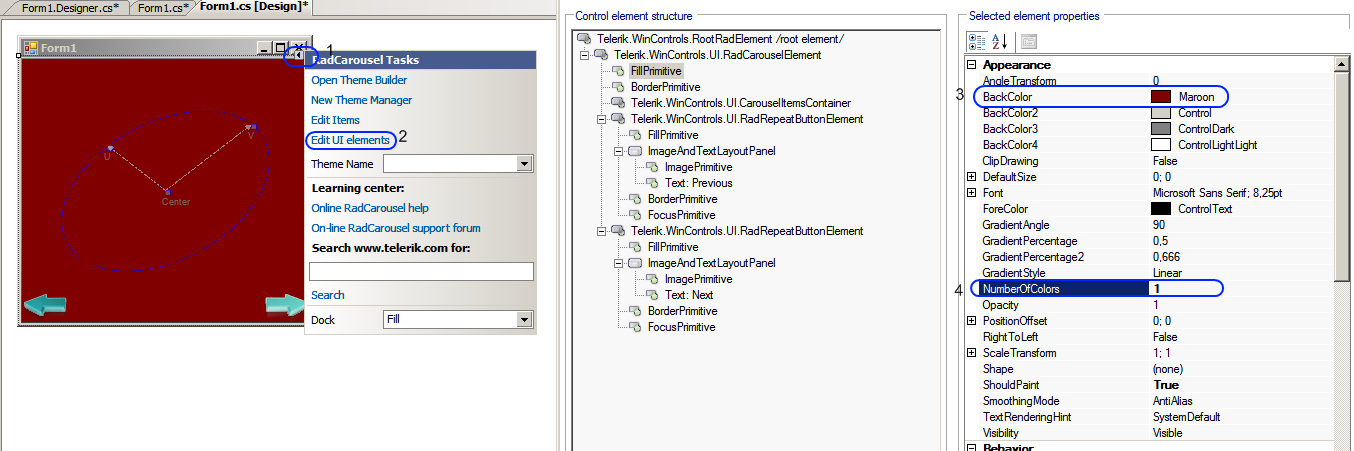

You can easily customize the Carousel's background by using the Edit UI Elements dialog, available in the smart tag in design time. You should select the carousel, open Edit UI Elements and set the Number of colors to 1. Please, refer to the attached screenshot how to do this.


Greetings,
Peter
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[YING JANG LIN]

Hi,Peter

Thanks those are worked for me.

but I also want to know what those in VB.net code?

Thanks, Peter

[Peter]

Hello YING JANG LIN,

You can check the generated code in your Designer.vb file.For your convenience I also extract the code below:


CType(Me.RadCarousel1.GetChildAt(0).GetChildAt(0), Telerik.WinControls.Primitives.FillPrimitive).NumberOfColors = 1

CType(Me.RadCarousel1.GetChildAt(0).GetChildAt(0), Telerik.WinControls.Primitives.FillPrimitive).BackColor = System.Drawing.Color.Maroon

Peter
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[YING JANG LIN]

Hi,Peter

Thanks you help for my question.

I thought without designer.vb , through use code of property to set number of color?

Thanks!

[Peter]

Hi YING JANG LIN,

I am not quite sure that I correctly understand what you mean by saying: 'thought without designer.vb , through use code of property to set number of color?"

It will be very helpful for us if you manage to prepare a small WinForms application that manages to reproduce these issues and sent it to us via a new support ticket.

Thanks for your time.

Regards,
Peter
