Xcode-Swift Library configuration issue

2 posts, 0 answers
  1. Subin
    Subin avatar
    1 posts
    Member since:
    Nov 2014

    Posted 08 Oct 2015 Link to this post

    HI  i started using UI for iOS . i downloaded the framework i added in General ->linked frameworks and Libraries (TelerikUI.Framework).I also added  "/Users/subinkuriakose/Documents/Telerik" in BuildSettings
    I created   project using swift and i copied chart example given below .

    import UIKit


    class ViewController: UIViewController {


        override func viewDidLoad() {
            super.viewDidLoad()

            let chart = TKChart(frame: CGRectInset(self.view.bounds, 15, 15))
            chart.autoresizingMask = UIViewAutoresizing.FlexibleWidth | UIViewAutoresizing.FlexibleHeight
            self.view.addSubview(chart)

            var randomNumericData = [TKChartDataPoint]()
            for i in 0..<10 {
                randomNumericData += TKChartDataPoint(x: i, y: Double(arc4random() % 100))
            }

            chart.addSeries(TKChartLineSeries(items: randomNumericData))

            chart.title().hidden = false
            chart.title().text = "This is a chart demo"
            chart.legend().hidden = false

            chart.allowAnimations = true
        }


        override func didReceiveMemoryWarning() {
            super.didReceiveMemoryWarning()
            // Dispose of any resources that can be recreated.
        }
    }​
    unresolved identifier   TKchart . is anything i need to add or not please help
  2. Sophi
    Admin
    Sophi avatar
    99 posts

    Posted 09 Oct 2015 Link to this post

    Hi Subin,

    Thank you for contacting us.

    There are a few possible issues that may cause this behavior.

    1. A missing bridging-header file. You should create an Objective-C bridging header to use the static version of the framework. Apple online documentation describes in detail how to create a bridging header file.

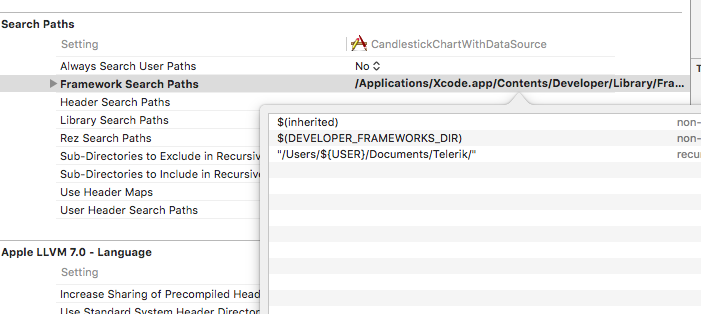

    2. Xcode 7 doesn't fill the Framework Search Paths property in Build Settings of your project with a path to the included third party framework for new projects. That is why you should add this path manually. Check the attached image.

    I hope this helps.

    Regards,
    Sophi
