X-Axis Labels Overlapping Issue (see screen cap)

3 posts, 0 answers
  1. Tony
    Tony avatar
    24 posts
    Member since:
    Sep 2014

    Posted 25 Feb 2015 Link to this post

    I'm using the RadChart and right now am unable to migrate to the RadChartView.

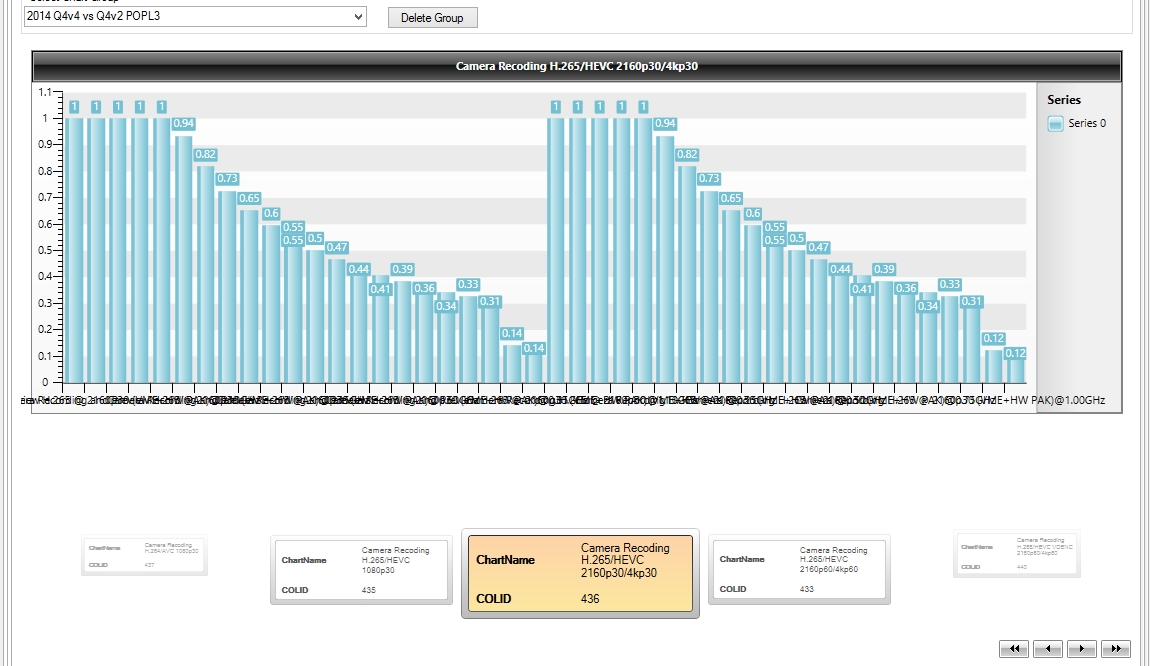

    Viewing the attached screen capture, what is my best option for sorting this out?

    Thanks,

    Tony
  2. Tony
    Tony avatar
    24 posts
    Member since:
    Sep 2014

    Posted 25 Feb 2015 in reply to Tony Link to this post

    FYI

    Not all the charts are this way but a few are. The majority render correctly with legible X-Axis labels
  3. UI for WPF is Visual Studio 2017 Ready
  4. Martin
    Admin
    Martin avatar
    1101 posts

    Posted 02 Mar 2015 Link to this post

    Hello Tony,

    The labels are overlapping because they do not have enough space to fit in. To resolve this you can use the axis' StepLabelLevelCount or LabelRotationAngle properties. The StepLabelLevelCount defines the number of levels which will be used to distribute the axis' labels. The LabelRotationAngle controls the rotation angle of the labels. You can read more about the properties in the X-Axis help article.

    I hope this helps.

    Regards,
    Martin
