WPF RadGridView header row double click

8 posts, 1 answers
  1. JC
    JC avatar
    16 posts
    Member since:
    Oct 2015

    Posted 11 Oct Link to this post

    Hello everyone

    I got a radgridView  with an autogeneratingColumn to false

    <telerik:RadGridView Margin="8,10,8,32.96" ShowGroupPanel="False" CanUserReorderColumns="False" CanUserDeleteRows="False" CanUserInsertRows="False" CanUserResizeRows="False"
                            CanUserSortColumns="False" CanUserFreezeColumns="False" CanUserResizeColumns="False" RowIndicatorVisibility="Visible" ItemsSource="{Binding Files}" SelectedItem="{Binding SelectedFile}"
                            AutoGeneratingColumn="GridViewDataControlOnAutoGeneratingColumn" IsFilteringAllowed="True" PreparingCellForEdit="GridViewDataControl_OnPreparingCellForEdit" />

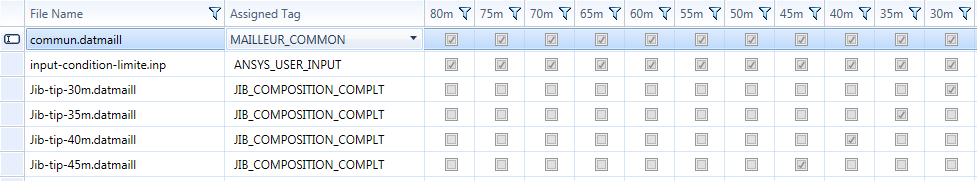

    This radGidview show some line with some column Checkbox (not fix column count, depend on data), see attached file. My goal is when user double click header row, all row checkbox will be checked, and the best of the best would be I could put a row checkbox in the header row but I don't think it's possible.

    I also tried to put some command line like a button column but I can't get the right selected row when button is first clicked.

    See below for the autogenerating column event :

    Private Sub GridViewDataControlOnAutoGeneratingColumn(sender As Object, e As GridViewAutoGeneratingColumnEventArgs)
        Dim dataColumn = TryCast(e.Column, GridViewDataColumn)

        If (dataColumn Is Nothing) Then Return

        If (e.Column.UniqueName = "FileName") Then
          e.Column.Header = "File Name"
          e.Column.DisplayIndex = 0
          e.Column.Width = 200
        ElseIf (e.Column.UniqueName = "AssignedTag") Then
          Dim column = New GridViewComboBoxColumn()
          column.DataMemberBinding = CType(e.Column, GridViewDataColumn).DataMemberBinding
          column.ItemsSource = CType(Me.DataContext, FileViewModel).AcceptedTags
          column.Header = "Assigned Tag"
          column.DisplayIndex = 1
          column.Width = 200
          column.IsFilterable = False
          e.Column = column
        Else
          Dim checkBoxColumn = New GridViewCheckBoxColumn()
          checkBoxColumn.DataMemberBinding = dataColumn.DataMemberBinding
          checkBoxColumn.Header = dataColumn.Header
          checkBoxColumn.UniqueName = dataColumn.UniqueName
          checkBoxColumn.EditTriggers = GridViewEditTriggers.CellClick
          checkBoxColumn.AutoSelectOnEdit = True
          checkBoxColumn.Width = 50
          checkBoxColumn.HeaderTextAlignment = TextAlignment.Center
          checkBoxColumn.TextAlignment = TextAlignment.Center
          Dim sty As New Style(GetType(GridViewCell))
          sty.Setters.Add(New Setter With {.Property = GridViewCell.HorizontalContentAlignmentProperty, .Value = HorizontalAlignment.Center})
          checkBoxColumn.CellStyle = sty

          e.Column = checkBoxColumn
        End If

        Dim binding = New Binding("IsInEditMode")
        binding.Converter = Me._invertedBooleanConverter

        e.Column.SetBinding(Telerik.Windows.Controls.GridViewColumn.IsReadOnlyProperty, binding)
      End Sub

    So how Can I got a double click on header row or insert a checkbox into header row ?

    thansk

    Regards

  2. Yoan
    Admin
    Yoan avatar
    1070 posts

    Posted 14 Oct Link to this post

    Hi,

    Column's Header is an object and you can define a checkbox in it:
    <telerik:GridViewCheckBoxColumn>
                       <telerik:GridViewCheckBoxColumn.Header>
                           <CheckBox/>
                       </telerik:GridViewCheckBoxColumn.Header>
                   </telerik:GridViewCheckBoxColumn>

    I would suggest you check this forum thread where a similar question is already discussed.

    Regards,
    Yoan
    Telerik by Progress
    Do you need help with upgrading your AJAX, WPF or WinForms project? Check the Telerik API Analyzer and share your thoughts.
  3. UI for WPF is Visual Studio 2017 Ready
  4. JC
    JC avatar
    16 posts
    Member since:
    Oct 2015

    Posted 14 Oct in reply to Yoan Link to this post

    Hi Yan

    Thanks for your answer but I know GridviewCheckBoxColumnHeader and it's not my goal.

    My goal is to put a checkbox into a ROW header or add a double click event on RowHeader in order to check all checkbox of a row not a column.

    Thanks

  5. Yoan
    Admin
    Yoan avatar
    1070 posts

    Posted 19 Oct Link to this post

    Hello,

    May I ask you to specify what do you mean by "header row"? If you are referring to the GridViewIndentCell of GridViewRow element, I would suggest you to predefine the template of the GridViewRow and define a checkbox  in the "PART_IndicatorPresenter" border. Then you can bind its IsChecked property to a property of your object(the one behind GridView's row). In this way, you can control the checked state of the other checkboxes.

    Regards,
    Yoan
    Telerik by Progress
    Do you need help with upgrading your WPF project? Try the Telerik API Analyzer and share your thoughts!
  6. JC
    JC avatar
    16 posts
    Member since:
    Oct 2015

    Posted 19 Oct in reply to Yoan Link to this post

    Hello Yoan

    I think it's the good way, I'll take a look to your links.

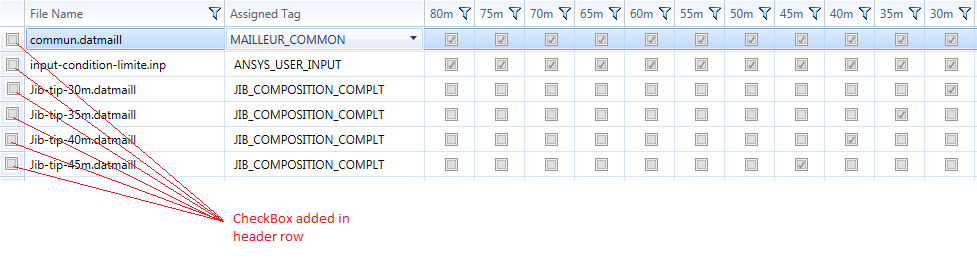

    I put a print screen of what I want to do in attached file. I talked about header row because the property I used to make the first cell visible is "RowIndicatorVisibility".

    Do you think I could use your explanation with autogeneratingColumn ?

    Thanks

    Regards

    JC

  7. Answer
    Yoan
    Admin
    Yoan avatar
    1070 posts

    Posted 19 Oct Link to this post

    Hello,

    Thank you for the clarification.

    The suggested approach will work with autogenerated columns. However, you can try the other approach - by handling GridView's MouseDouble click event. You need to check what is the clicked element and set the needed properties of your business object:
    private void clubsGrid_MouseDoubleClick(object sender, MouseButtonEventArgs e)
           {
               var indicatorBorder = (e.OriginalSource as FrameworkElement).ParentOfType<Border>();
               if (indicatorBorder.Name == "PART_IndicatorPresenter")
               {
                   var item = indicatorBorder.ParentOfType<GridViewRow>().Item;
                   if (item != null)
                   {
                       // iterate over your properties. In this case Club is the business object.

                       var club = item as Club;
                       club.IsActive1 = true;
                       club.IsActive2 = true;

                   }
               }
           }

    I hope this helps.

    Regards,
    Yoan
    Telerik by Progress
    Do you need help with upgrading your WPF project? Try the Telerik API Analyzer and share your thoughts!
  8. JC
    JC avatar
    16 posts
    Member since:
    Oct 2015

    Posted 20 Oct Link to this post

    Hello Yoan

    Thanks for your 2 solutions, the second one (MouseDoubleClick) works well.

    But I tried the first one, and I think I missed something, below you could find the code I wrote, could you tell me what I missed ?

    <UserControl.Resources>
            <ResourceDictionary>

    ...

                <Style TargetType="telerik:GridViewHeaderIndentCell">
                    <Setter Property="Template">
                        <Setter.Value>
                            <ControlTemplate TargetType="telerik:GridViewHeaderIndentCell">
                                <telerik:SelectiveScrollingGrid>
                                    <Border x:Name="PART_IndicatorPresenter" Grid.Row="1" Width="25" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0 0 1 1" >
                                            <CheckBox/>
                                        </Border>
                                </telerik:SelectiveScrollingGrid>
                            </ControlTemplate>
                        </Setter.Value>
                    </Setter>
                </Style>
            </ResourceDictionary>
        </UserControl.Resources>

    ...

            <telerik:RadGridView Margin="8,10,8,32.96" ShowGroupPanel="False" CanUserReorderColumns="False" CanUserDeleteRows="False" CanUserInsertRows="False" CanUserResizeRows="False"
                             CanUserSortColumns="False" CanUserFreezeColumns="False" CanUserResizeColumns="False" RowIndicatorVisibility="Visible" ItemsSource="{Binding Files}" SelectedItem="{Binding SelectedFile}"
                             AutoGeneratingColumn="GridViewDataControlOnAutoGeneratingColumn" IsFilteringAllowed="True" PreparingCellForEdit="GridViewDataControl_OnPreparingCellForEdit">

            </telerik:RadGridView>
    ...



    Thanks

    regards

  9. JC
    JC avatar
    16 posts
    Member since:
    Oct 2015

    Posted 21 Oct in reply to JC Link to this post

    Hello Yoan,

    I finally found what I missed, so if someone need the same thing, I copy my code below.

    <UserControl.Resources>
            <ResourceDictionary>
                ...
                <Style TargetType="telerik:GridViewRow" BasedOn="{StaticResource {x:Type telerik:GridViewRow}}">
                    <Setter Property="Template">
                        <Setter.Value>
                            <ControlTemplate TargetType="telerik:GridViewRow">
                                <telerik:SelectiveScrollingGrid>
                                    <telerik:SelectiveScrollingGrid.ColumnDefinitions>
                                        <ColumnDefinition Width="Auto"/>
                                        <ColumnDefinition Width="Auto"/>
                                        <ColumnDefinition Width="Auto"/>
                                        <ColumnDefinition Width="*"/>
                                    </telerik:SelectiveScrollingGrid.ColumnDefinitions>
                                    <Border x:Name="PART_GridViewHeaderRowBorder" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Grid.ColumnSpan="4" HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" Padding="{TemplateBinding Padding}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}">
                                        <Border BorderThickness="0" Background="{TemplateBinding Background}"/>
                                    </Border>
                                    <telerik:DataCellsPresenter x:Name="PART_DataCellsPresenter" Grid.Column="3"/>
                                    <Border x:Name="PART_IndicatorPresenter" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0,0,0,0" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{TemplateBinding RowIndicatorVisibility}" Width="25">
                                        <Border BorderThickness="1" VerticalAlignment="Center" HorizontalAlignment="Center">
                                            <CheckBox VerticalAlignment="Center" HorizontalAlignment="Center" Checked="CheckAll_OnChange" Unchecked="CheckAll_OnChange"/>
                                        </Border>

                                    </Border>
                                    <telerik:IndentPresenter x:Name="PART_IndentPresenter" Grid.Column="1"  IndentLevel="{TemplateBinding IndentLevel}" MinHeight="{TemplateBinding MinHeight}" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" telerik:StyleManager.Theme="{StaticResource Theme}"/>
                                    <Border x:Name="PART_HierarchyIndentPresenter" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0,0,1,1" Grid.Column="2" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}" Width="25">
                                        <Border BorderThickness="1" />
                                    </Border>
                                </telerik:SelectiveScrollingGrid>
                            </ControlTemplate>
                        </Setter.Value>
                    </Setter>
                </Style>
            </ResourceDictionary>
        </UserControl.Resources>

    ...

    <telerik:RadGridView Margin="8,10,8,32.96" ShowGroupPanel="False" CanUserReorderColumns="False" CanUserDeleteRows="False" CanUserInsertRows="False" CanUserResizeRows="False"
                             CanUserSortColumns="False" CanUserFreezeColumns="False" CanUserResizeColumns="False" ItemsSource="{Binding Files}" SelectedItem="{Binding SelectedFile}"
                             AutoGeneratingColumn="GridViewDataControlOnAutoGeneratingColumn" RowIndicatorVisibility="Visible" IsFilteringAllowed="True" PreparingCellForEdit="GridViewDataControl_OnPreparingCellForEdit"/>

    ...



    Private Sub CheckAll_OnChange(sender As Object, e As RoutedEventArgs)
        Dim model As FileViewModel = CType(Me.DataContext, FileViewModel)
        'TODO
        'model.Action
      End Sub



    thanks

    Regards
